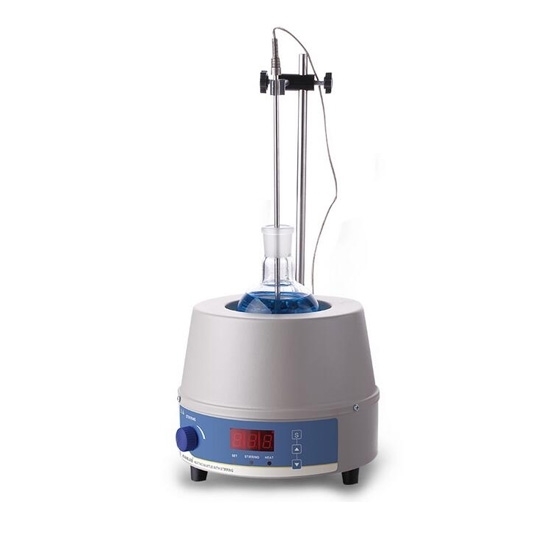

Digital Heating Mantle with Stirrer, 100ml/500ml/1L/2L/5L/10L/20L

$260.63

Cheap digital heating mantle with magnetic stirrer, comes with digital dispay & temperature control, for convenient readi

SKU: CHN-HMSC

Free Shipping Worldwide

Delivery date: 6-12 days

Overview
Documents

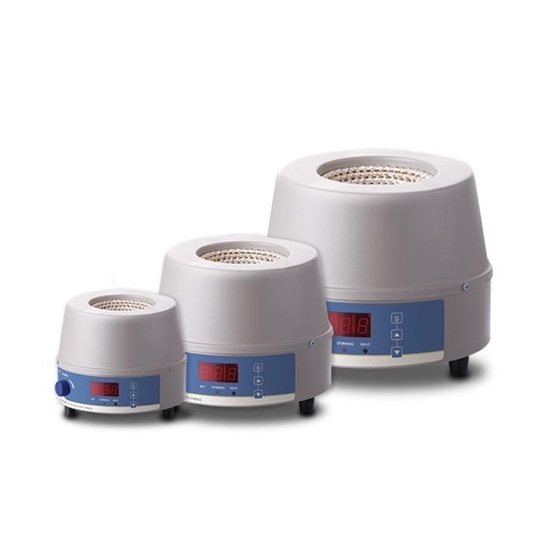

Digital heating mantle with magnetic stirrer has selectable capacities of 100mL, 250mL, 500mL, 1000mL, 2000mL, 5000mL, 10L and 20L. It is used for liquid stirring and heating in colleges, petrochemical industries, pharmaceutical and environment protection institutions.

Features

Digital display, convenient & accurate to control temperature and easy to read out.
With alkali-free glass fiber mantle, corrosion-resistant, heat-resistant and durable.
Fast heating-up without open flame, long lifespan.
Inner hemispherical heater with larger heating area for uniform and efficient heat.
Comes with magnetic stirring function, making the liquid heat evenly under stirring, ideal heating mantle for labs and chemical institutions.

Specification

Model	CHN-HMSC
Capacity	100mL	250mL	500mL	1000mL	2000mL	5000mL	10000mL	20000mL
Heating Power	100W	150W	250W	350W	450W	800W	1200W	2400W
Max Temperarure	Room temp. 380℃ (Temperature control 300℃)
Function	Heating and stirring
Temperature Control	Digital temperature control
Stirring Speed	0-1400 RPM
Power Supply	220V AC or 110V AC
Size	232320cm	232320cm	232320cm	303024cm	323227cm	3736.530cm	4342.535.5cm	5150.538cm
Weight	2.4kg	2.8kg	2.9kg	4.4kg	5.3kg	8kg	12.1kg	18.6kg
Packing List	Heating mantle1, power plug1, stir bar1, user manual1, temperature probe1 (6mm diameter, up to 200℃), bracket1

Note: For the capacity greater than or equal to 2000mL, the heating mantle with stirrer can ONLY be equipped with 2-pin European power plug, 3-pin Australian plug or UK plug, so the European plug is equipped for the USA by default.

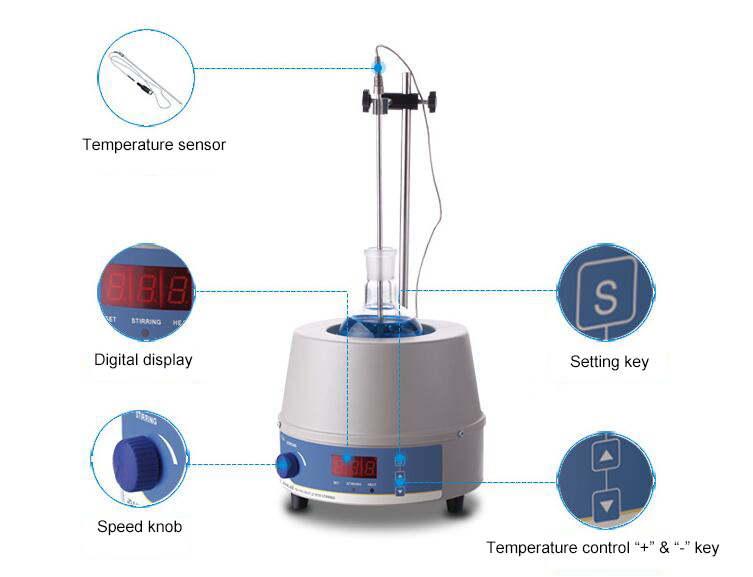

Heating Mantle w/ Stirrer Details

Note: Glass breaker are not included in the packing list.

Tips:

Heating mantle with magnetic stirrer is a kind of instrument for liquid heating in laboratory, and it also has stirring function to achieve the purpose of rapid mixing for even heating. This instrument works reliably, operates simply, and has the heating power continuous adjustable. The digital heating mantle with magnetic stirrer can easily observe and control the heating state with digital display, and the stirring speed can be adjusted continuously to adapt to different work needs. It is an ideal equipment for laboratories of schools, factories and scientific research institutes.

Matters needing attention when using heating mantle with magnetic stirrer:

1. As the surface of the heating mantle is coated with oil, it is normal to emit white smoke when using it for the first time. Then the surface turns brown, and the original color can be restored after a few minutes.
2. Heat and stir at the same time, or use alone.
3. When heating, please do not touch the electric heating cover to avoid scalding.
4. Stirring speed adjustment should start from low gear.
5. Do not splash the solution on the machine during operation.
6. After use, the power switch should be turned off and the heating mantle should be stored in a ventilated and dry place after cooling.
