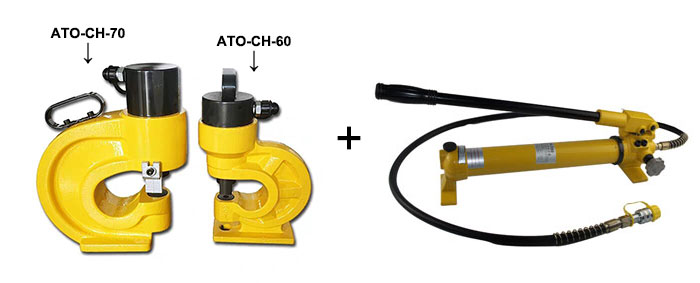

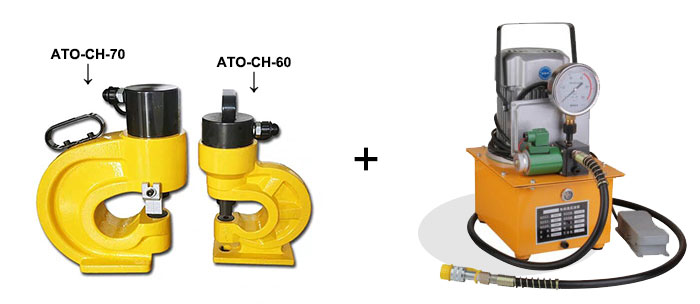

Model	CHN-CH-60	CHN-CH-70
Max. Punching Force	31 Ton	35 Ton
Max. Thickness of Iron Plate	6mm	10mm
Max. Thickness of Copper Bar	10mm	12mm
Depth of Throat	95mm	110mm

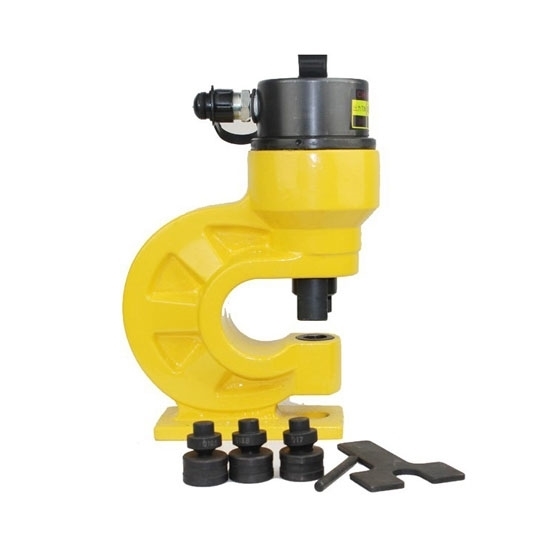

Punching Die	3/8"(ф10.5mm), 1/2"(ф13.8mm), 5/8"(ф17mm), 3/4"(ф20.5mm)
Size	350245110mm	370240150mm
Weight	19kg	38kg

Max. Operating Pressure	700kg/cm²
High Pressure	700kg/cm²
Low Pressure	20kg/cm²
High-Pressure Oil Volume	2.3 cc
Low-Pressure Oil Volume	13 cc
Oil Capacity	900 cc

Max. Operating Pressure	70MPa
High Pressure	70MPa
Low Pressure	7MPa
High-Pressure Output Oil	0.9L/min
Low-Pressure Output Oil	5L/min
Oil Capacity	7L
Power Source	220V 50Hz
Type	Single-acting
