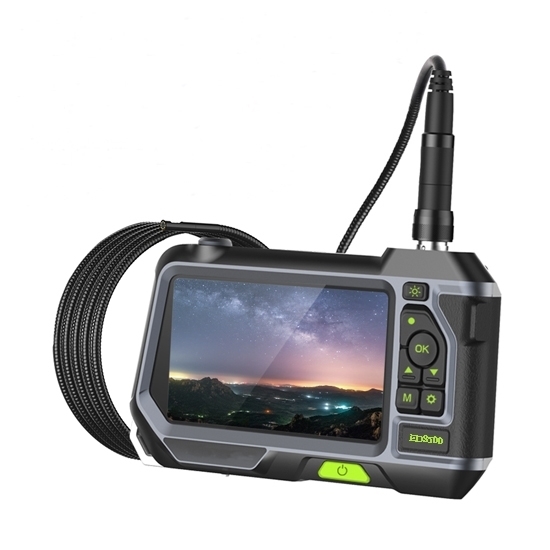

High quality 1280P HD endoscope camera, built-in 3500mAh rechargeable lithium-ion battery, borescope endoscope can work for 4 hours continuously, with a 5 inch LCD screen for instant video viewing without wasting time on software and wifi connections.
Specification
Model | CHN-EDS500 |
Display | 5 inch LCD screen |
Resolution | Screen resolution: 1280 x 720 (Pixels) |
Probe resolution: 1280 x 720, 1920 x 1080 (Pixels) |
JPG image: 1280 x 720 (Pixels) |
AVI video: 1280 x 720, 1920 x 1080 (Pixels) |
Focus Range | 30mm~80mm |
Viewing Angle | 60° |

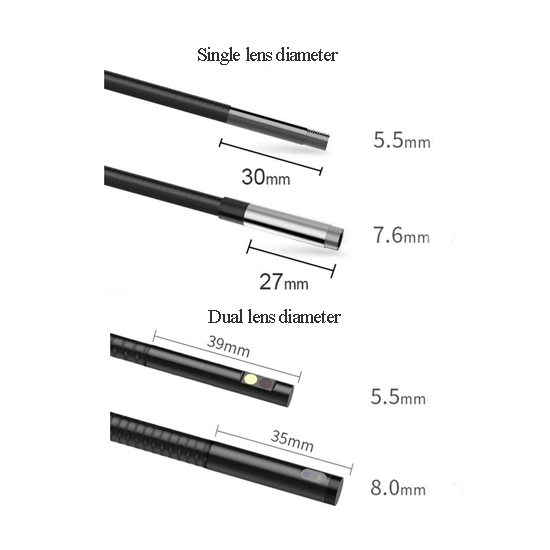

Probe Diameter | 5.5mm / 7.6mm / 8mm |
Cable Length | 3M / 5M |
Port | USB charging interface, TF card slot, video output interface |
Storage Medium | Micro SD card (come with 16GB, up to 32GB) |
Lights | 4 LEDs (adjustable light) |
Power Source | Rechargeable 3500mAh lithium battery |
Battery Life | 5 - 6 hours |
Working Temperature | 32° - 113°F (0° - 45°C) |
Menu Languages | English, French, German, Russian, Japanese, Chinese |
Waterproof Level | IP 67 |
Packing Content | Endoscope, User Manual, Probe, MicroUSB cable, Accessories (Mirror, Hook, Magnet) |
Note: Please make sure to charge once every three months if long time no use.
Features
- Endoscope with 5-inch LCD screen and 3500mAh rechargeable battery, it can be worked right out of the box.
- 5.5mm or optional diameter dual lens (direct view and side view) borescope camera.
- Excellent waterproof industrial video endoscope, not only the probe is waterproof, but also the monitor is rainproof.
- The device integrates 4 high-brightness LED lights help to get a better view in dark environment.
- Equipped with photo and video function, the user can take and save high quality photos (JPG) or video (AVI) stored on the TF card.
Application

Tips: Why choose industrial endoscope
1. The industrial endoscope is directly tested by the probe without disassembling the equipment and without destroying the original structure.
2. The video endoscope camera has clear imaging, good color reproduction, and the detection result is visually visible.
3. The whole machine is light and portable, and the operation is simple. For occasions requiring rapid detection, it can effectively save time and improve detection efficiency.
4. The probe can be turned at any angle of 360°, and the cable can turn in the pipeline, effectively eliminating the dead zone of sight.
5. Endoscope camera cable can pass through the area where the human can not directly reach or the eye can not see, and it can observe the inside of the space with high temperature, high pressure, toxic, insufficient light, narrow and long distance, and is applicable to various detection environments.
Digtal high resolution video endoscope (borescope camera) with cheap price, 5-inch LCD screen provides you 1280x720 HD pictures, 5.5/7.6/8 mm selectable diameter single/dual lens flexible probe, IP67 waterproof snake cable to investigate clogs in underwater areas, Ideal for auto repair, pipeline, industrial, machinery, chemical, etc.
