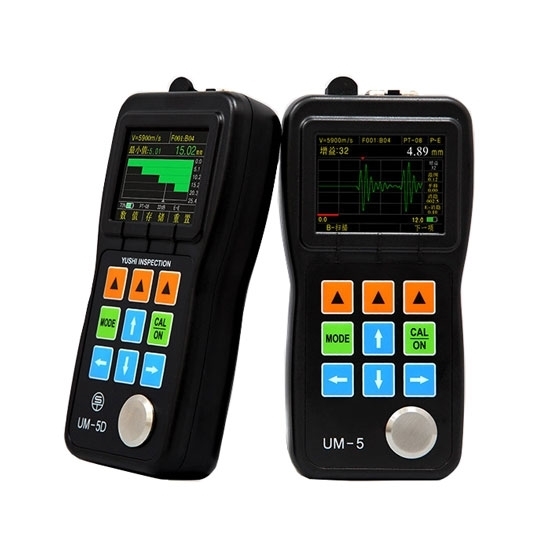

This series of digital ultrasonic thickness gauges with A-scan and B-scan function helps the user make more accurate thickness measurement. The thru-coating function available is designed for thickness testing without removing the paint. This instrument is widely applies for measuring the thickness of metal materials, pipes, pressure vessels, sheet metals (steel, aluminum), plastic, steel pipes, PVC pipes, glass and other materials.

Features

• High resolution 0.01mm or 0.001 inches
• Measuring range: 0.6-508mm
• Live A-Scan & Time-based B-Scan
• Adjustable GAIN, BLANKING, GATE, etc.
• 2.4"QVGA (320×240 pixels) OLED color display
• 5 rectify modes of RF+, RF-, Half+, Half-, and FULL for waveform display
• With thru-coating function, no need to remove the paintings (UM-5D, UM-5DL Only)

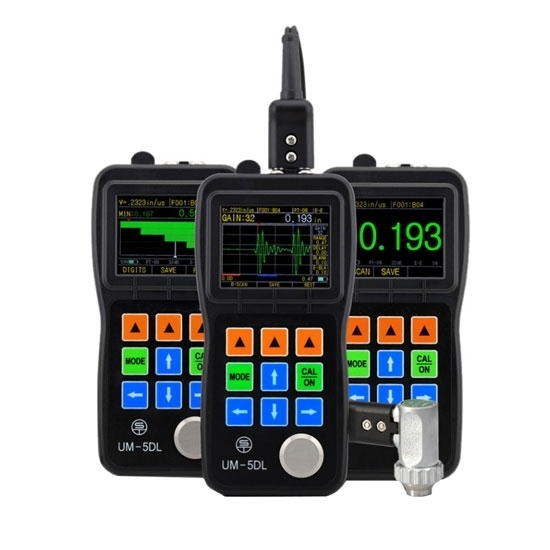

• Large data logger, can store 100,000 thickness values and 1000 waveforms (UM-5DL Only)

Specification

Function Comparison

Data Logger of CHN-UM-5DL Ultrasonic Thickness Gauge

Note:
* Standard Packing List
Ultrasonic Thickness Gauge × 1, Standard Probe × 1, Battery × 2, Couplant × 1, Carrying Case × 1, Operating Manual × 1
USB Cable × 1 (UM-5DL Only), Software × 1 (UM-5DL Only)
(Kindly Reminder: Battery and Couplant is Not Included if Shipped By Air.)
** Optional Probes

Model	PT08	TC510	PT06	PT04	ZT12	GT12
Type	UM-5 Standard	UM-5D/UM-5DL Standard	Small Tube	Fingertipe	Cast iron	High-Temperature
Frequency	5MHz	5MHz	7.5MHz	10MHz	2MHz	5MHz
Diameter	11mm	13.5mm	8mm	6mm	17mm	15mm
Measuring Range	0.8~100mm	1.2~200mm	0.8~30mm	0.7~12mm	4.0~508mm	4.0~80mm
Allowable Temperature	-10℃ ~ 70℃	-10℃ ~ 70℃	-10℃ ~ 70℃	-10℃ ~ 70℃	-10℃ ~ 70℃	-20℃ ~ 450℃

Tips: Couplant of ultrasonic thickness gauge

In order to improve the sound energy transmission between the probe of ultrasonic thickness gauge and the workpiece, a thin layer of liquid applied between the probe and the detection surface is called a couplant.

When there is a layer of air between the probe of ultrasonic thickness gauge and the workpiece, the reflectivity of the ultrasonic wave is almost 100%. Even a thin layer of air can prevent the ultrasonic wave from entering the workpiece. Therefore, it is very important to remove the air between the probe and the workpiece. Coupling agent can fill the air gap between the probe and the workpiece, so that ultrasound can be transmitted to the workpiece, which is the main purpose of using the couplant. In addition, the couplant also has lubrication effect, which can reduce the friction between the probe of ultrasonic thickness gauge and the workpiece, prevent the workpiece surface from wearing the probe, and make the probe easy to move.

According to the surface condition and acoustic impedance of the workpiece to be tested, the coupling agents without bubbles and suitable viscosity should be selected, such as glycerin, oil, silica gel, water glass and paste, high temperature coupling agent, etc. If the surface of the workpiece is rough, the thicker coupling agent should be chosen. The coupling agents specially used for thickness measurement can also be used. In practical use, it is necessary to keep the coupling agent clean, not to make it stained, or it will affect the accuracy of measurement of ultrasonic thickness gauge.
