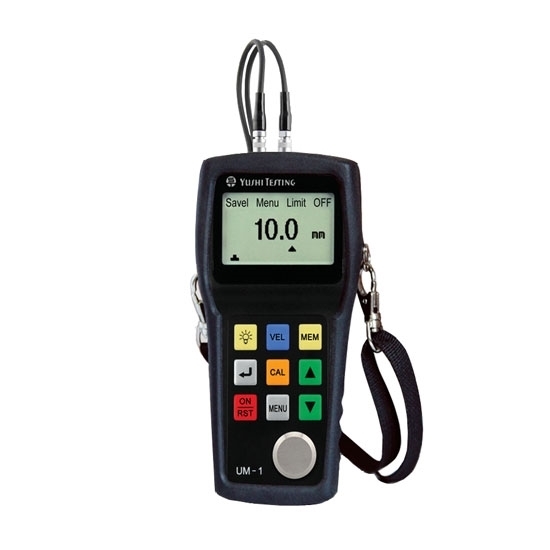

The ultrasonic thickness gauge is the thickness testing equipment that can measure the thickness of various materials such as metal materials, high temperature pipes, pipes, steel plates, aluminum plates, plastics, iron pipes, PVC pipes, glass, etc. It can be widely applied for these material testing in the fields like manufacturing, metal processing, chemical industry, commodity inspection, etc. This series of ultrasonic thickness gauge is extremely suitable for measuring the thickness loss of pipes and pressure vessels after corrosion. The ultrasonic thickness gauge is a most suitable instrument for material protection.

Features

• 0.1mm or 0.001 inches resolution
• Measuring range: 0.8~300mm
• 128*64 pixels display with backlit
• Can store 500 thickness readings
• Hi-Low alarm setting
• Minimum thickness capture
• V-sound path correction
• With through paint/coating function (CHN-UM-1D only)

Specification

Note:
* Standard Packing List

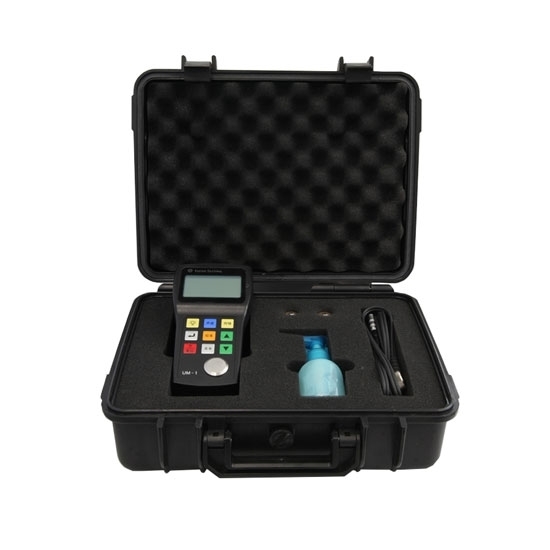

Ultrasonic Thickness Gauge × 1, Standard Probe × 1, Battery × 2, Couplant × 1, Carrying Case × 1, Operating Manual × 1
(Kindly Reminder: Battery and Couplant is Not Included if Shipped By Air.)
** Optional Probes

Model	PT08	PT06	PT04	ZT12	GT12
Type	Standard	Small Tube	Fingertipe	Cast iron	High-Temperature
Frequency	5MHz	7.5MHz	10MHz	2MHz	5MHz
Diameter	11mm	8mm	6mm	17mm	15mm
Measuring Range	0.8~100mm	0.8~30mm	0.7~12mm	4.0~508mm	4.0~80mm
Allowable Temperature	-10℃ ~ 70℃	-10℃ ~ 70℃	-10℃ ~ 70℃	-10℃ ~ 70℃	-20℃ ~ 450℃

Function Comparison

Tips: Measurement Method of Ultrasound Thickness Gauge

1. Single-point measurement method
It means that the ultrasound thickness gauge is used to measure any point of the measured material with a probe, and the display value is the thickness value.

2. Two-point measurement method
The ultrasound thickness meter is used to make two measurement at the same point of the measured material with a probe. In the second measurement, the probe's split surface is 90 degrees, and the smaller value in the two measurements is the thickness value.

3. Multi-point measurement method
When the measurement value is unstable, takes a measuring point as the center and makes multiple measurements in a circle with a diameter of about 30 mm. The minimum value is the thickness value.

4. Continuous measurement method
It uses single-point measurement method to measure continuously along a designated line with an interval of not less than 5 mm. The minimum value is the thickness value.
