Home > Test & Measurement > Temperature Controller

Send Inquiry

Programmable Temperature Controller, ON-OFF/PID Control

$88.31

Programmable temperature controller has dual digital 4 LED display, on-off control/PID control, support universal inputs (Cu5

SKU: CHN-TEMPC-P2D

Free Shipping Worldwide

Delivery date: 6-12 days

Overview
Documents

PID temperature controller can support not only temperature sensors, but also various sensors, such as pressure sensors, load cells, displacement sensors, liquid level sensors, gas sensors, humidity sensors, and other non-standard sensors.

Specification:

Model	CHN-TCPD2
Weight	0.5kg
Dimension (LengthHighDepth) *	D1: 1608080mm with hole size 15276mm; D2: 9696110mm with hole size 9292mm; D3: 4896110mm with hole size 4492mm; D4: 9648110mm with hole size 9244mm; D5: 7272110mm with hole size 6868mm; D6: 4848110mm with hole size 4444mm; D7: Rail type 728859mm
Supply voltage	AC/DC 85V-240V, 50-60Hz
Working environment	Temperature: -10~60℃, humidity: ≤90%RH
Sampling period	8 times/second; When set digital filter parameter FILt=0, response time≤0.5s
Accuracy	±0.5%F.S ±1 digit
Resolution	≤0.01℃
Input signal *	I1. Temperature sensor: CU50 (-50.0～150.0℃), PT100 (-199.9～600.0℃), K (-50.0～1300℃), E (-50.0～700.0℃), J (-30.0～900.0℃), T (-199.9～400.0℃), S (-30.0~1600℃), R (-30.0~1700℃), WR25 (-30.0~2300℃), N (-30.0~1200.0℃) I2. Analog signal: 4-20mA, 0-10mA, 0-5V, 1-5V, 0-50mV, 10-50mV
Control mode	1. On-off control; 2. PID control Need manually switch to another control mode.
Output mode *	O1: Relay output; O2: SSR output; O3: SCR output; O4: Transmitter output 4-20mA/0-10V
Alarm mode *	A1 Default mode: 1 alarm output; A2 Extension mode: 2 alarm outputs
Alarm	Upper limit, lower limit, upper deviation, lower deviation, in the deviation section, outside the deviation section
Programmable function	Subsection control, total 64 custom program segments (include 32 constant temperature segments and 32 warming segments)
Program segments modes	1. Execution mode: Standby after execution; Skip to the first segment after execution and continue execution (loop execution). 2. Power-up mode: The current segment is automatically executed after power-up; The first segment is automatically executed after power-up; Waiting for user command after power-up. 3. Constant temperature segment time unit: minimum unit is minute; minimum unit is second. 4. The bottom window can be manually switched to display: The set value of current segment; The number of current segment; The running time of current segment. 5. Custom output alarm time after last segment finished (optional).
Additional power supply *	DC 24V for sensor of input signal I2
Additional output mode *	RS: RS485/232 communication (MODBUS-RTU protocol); TS: 4-20mA/1-5V, 0-10mA/0-5V transmitter

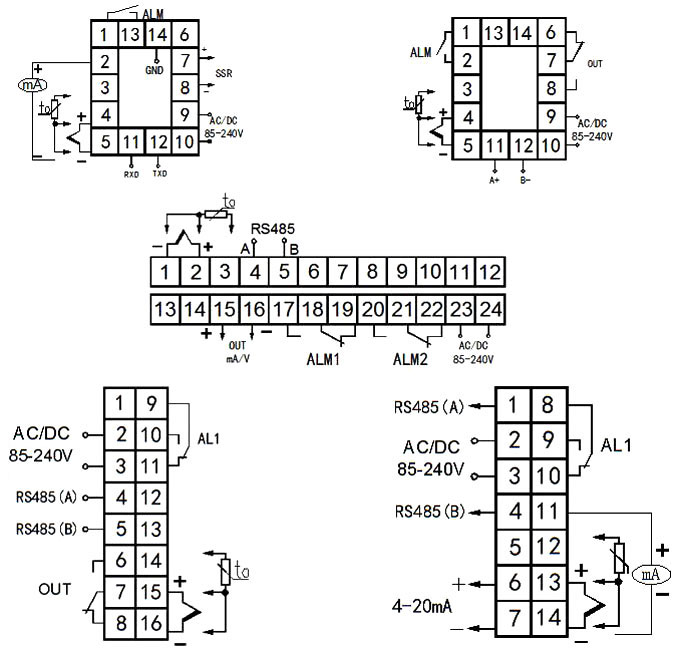

Programmable temperature controller wiring diagram:

Tips: What is ON/OFF control in temperature controller?
In temperature controller, ON/OFF control is setting parameter P to 0. Temperature controller compares the difference value between the measured value (PV) and the set value (SV), and regulates controlled plant by ON/OFF control. When the temperature is lower than the setting lower limit parameter, temperature will open the heating device and the device runs at full power. When the temperature is higher than the setting upper limit parameter, temperature controller will close the heating device and the heating is completely stopped. The temperature fluctuates slowly between the lower limit and the upper limit. There is fluctuation for ON/OFF control temperature. The equipment starts and stops frequently, but the control method is simple.
ON/OFF control is suitable for the environment that has lower requirement for control accuracy, such as water temperature control of baths.
