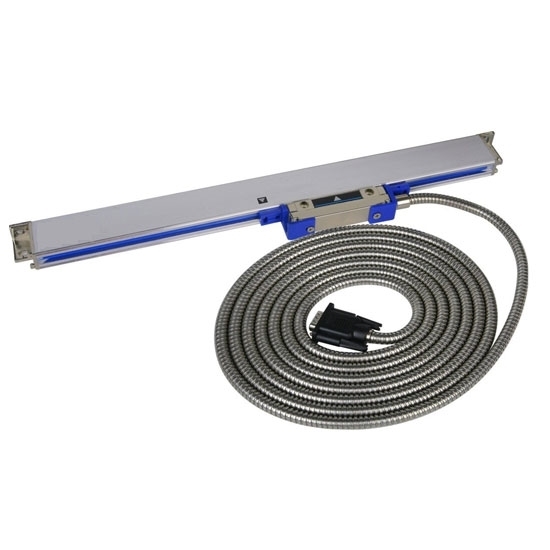

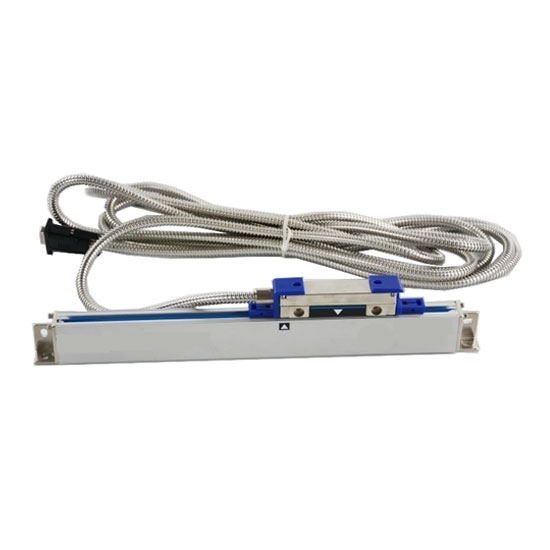

Low cost Linear encoder resolution can select 0.5µm, 1µm or 5µm, the optional length is 350mm, 500mm and 700mm, signal output TTL or RS422. Widely applied to milling, grinding, lathe and EDM machines.
After purchasing one ATO linear scale, you can buy a digital readout for milling machine, lathes or table saw fence.

Specification

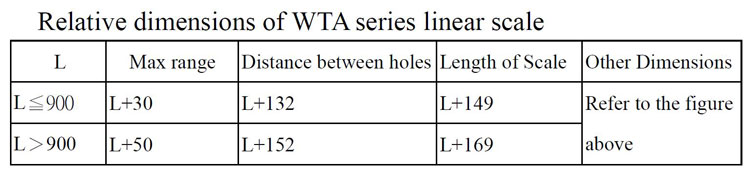

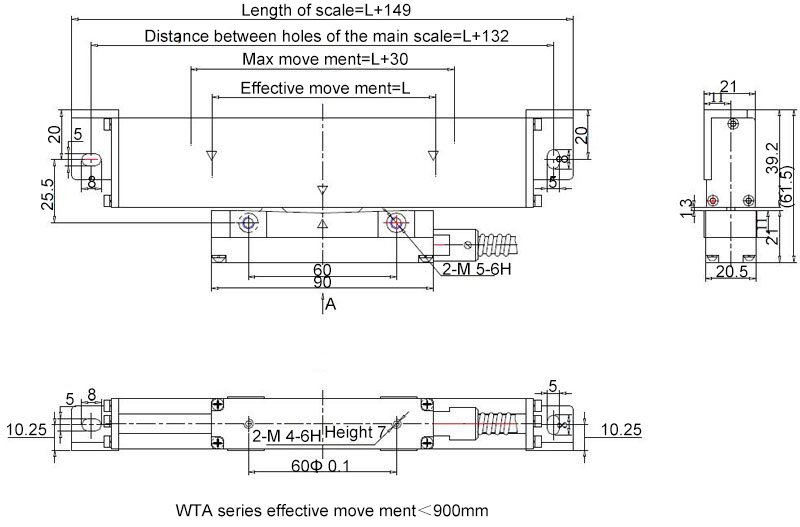

Dimensions (Unit: mm)

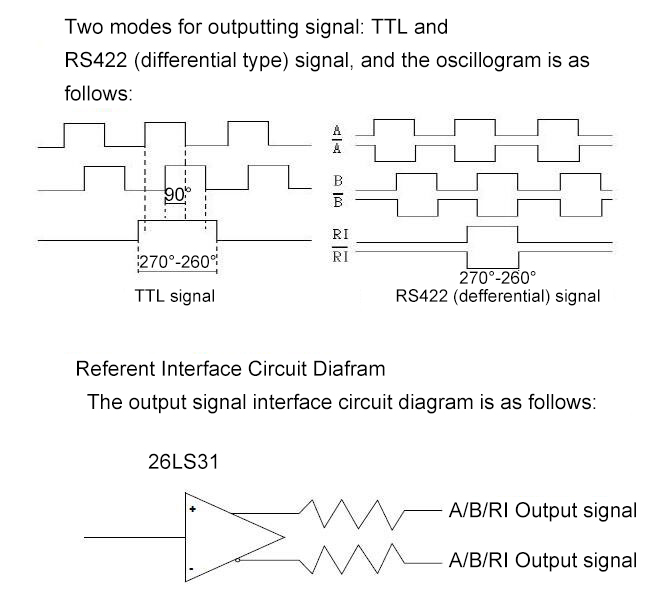

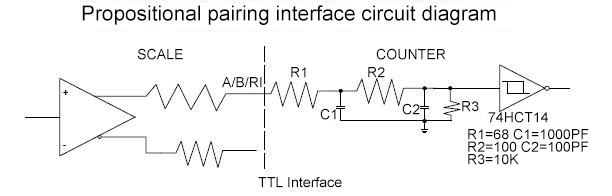

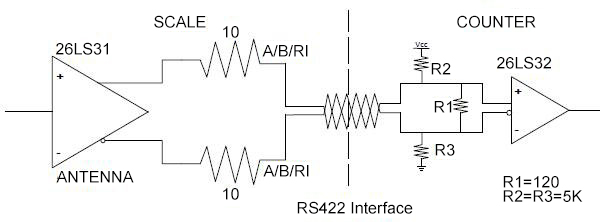

Linear Scale Output Signal

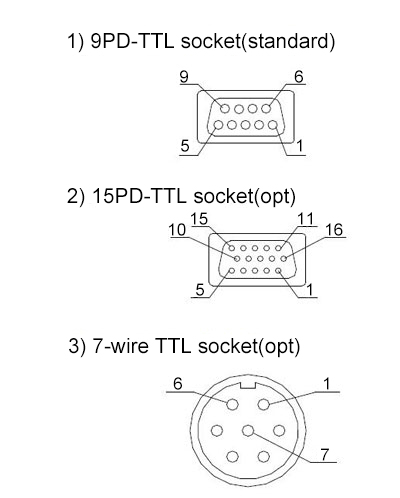

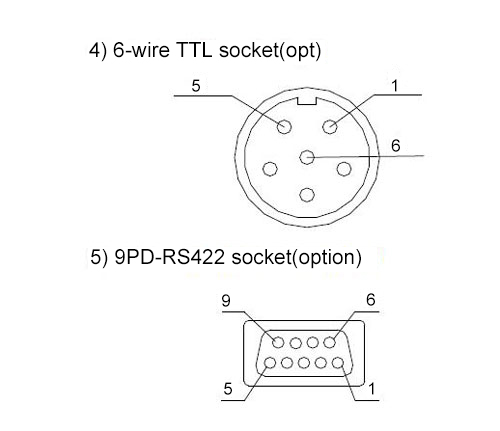

Linear Encoder Plug Types

Tips: Linear scale working principle

Transmission grating, for example, when the indicator on the grating lines and scale on the grating lines formed between a small Angle theta, and two relative of parallel grating ruler facets, in under the irradiation of light source, is located in a nearly vertical grid lines, the formation of light and dark stripes. This stripe is called the moire stripe. Strictly speaking, the direction of the moire fringe is perpendicular to the bisector of the Angle between the two grating lines. The distance between two bright or dark lines in the moire fringe is called the width of the moire fringe, denoted by W:
W is /2 times sine of over 2, which is/over 2.
