Digital Electric Energy Meter Features

• 3 phase 3 wire 3x400V AC
• Class 1 accuracy for active energy
• 5(100)A direct input currnt or 1.5(6)A via CT access
• 1 active energy pulse output
• RS485 communication interface, support Modbus-RTU protocol
• Voltage/Current/Active power/Power factor/Frequency measurement
• Compact design, DIN rail mounting

Digital Electric Energy Meter Description

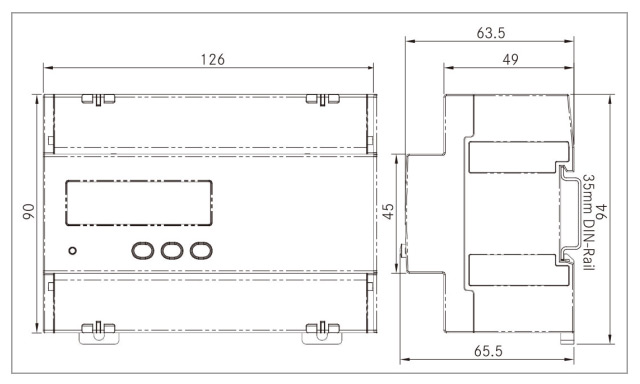

Digital Electric Energy Meter Dimension

(Unit=mm)

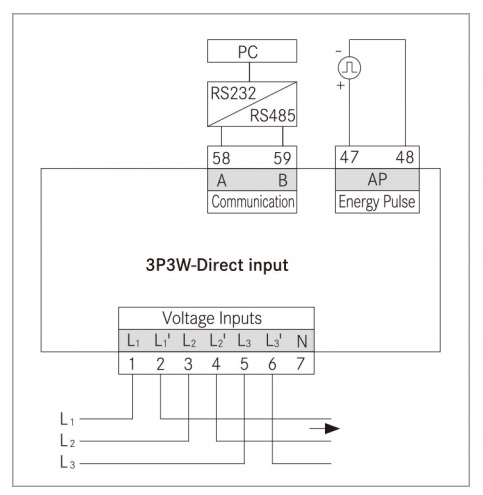

Digital Electric Energy Meter Wiring

Tips: Features of DIN rail mounted energy meter

1. The DIN rail mounted energy meter is a minitype energy meter of a new generation. It is used for 380V/220V terminal illuminating system. It adopts the standard DIN 35mm DIN-rail installation, structure modularization design, with its width just matching the miniature circuit breaker, thus being convenient for being installed in the illumination box.

2. The energy meter adopts an LCD display to measure electrical energy and other electrical parameters. It can set parameters such as clock and rate period, and has the function of power pulse output. The RS485 communication interface can be used to exchange data with the host computer.

3. The DIN-rail mounted energy meter has the advantages of small size, high accuracy, good reliability and convenient installation. Its performance index conforms to the various technical requirements of the national standard GB/T17215, GB/T17883 and power industrial standard DL/T614 to the energy meter, thus being suitable for the subentry measuring of the governmental organizations and large-scale public constructions to the power, and the power management and assessment in enterprises and public institutions.
