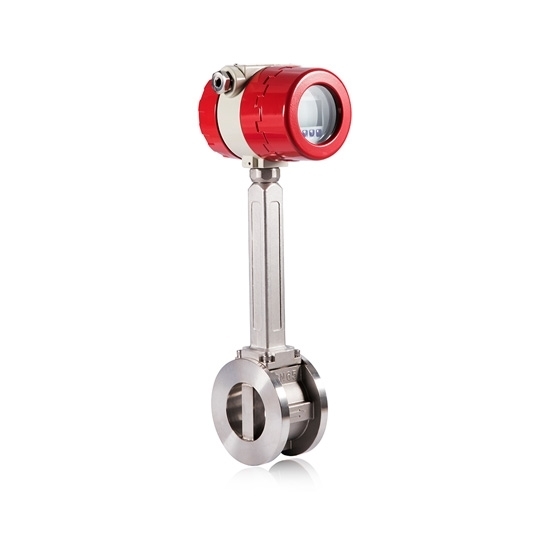

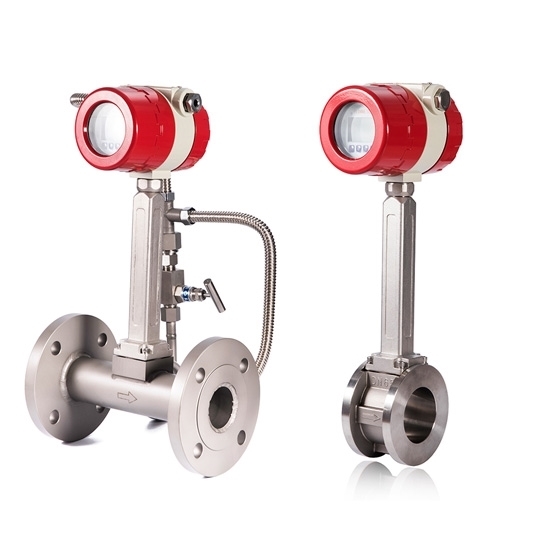

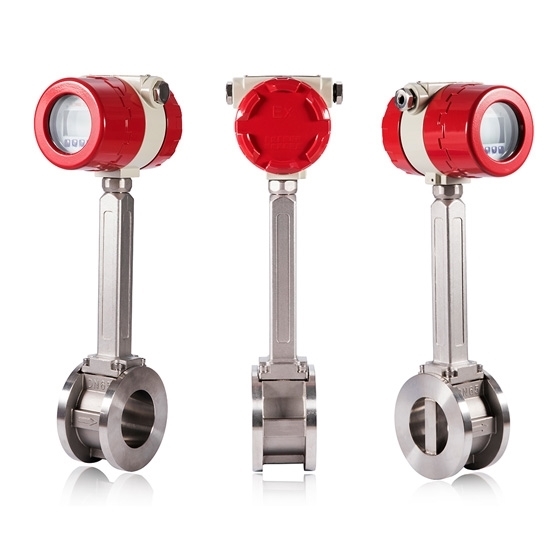

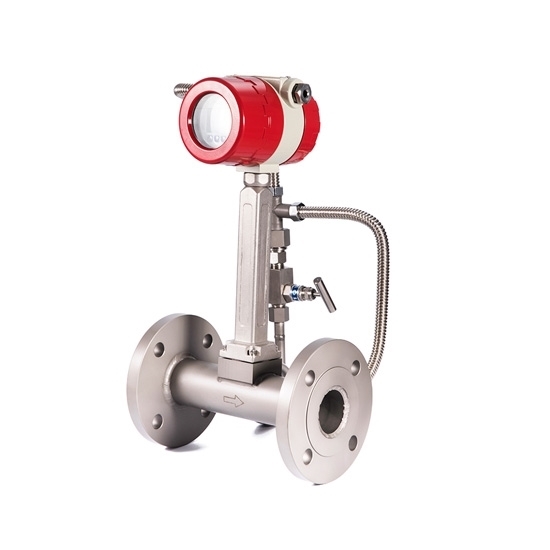

Vortex Flow Meter for Liquid/Gas/Steam, DN15-DN300

$957.85

Low cost vortex meter can measure the flow rate of liquids, gases and steam, applicable pipe size from DN15 to DN300. High ac

SKU: CHN-FLOW-VOR

Free Shipping Worldwide

Delivery date: 6-12 days

Overview
Documents

Cost-effective yet reliable vortex flow meters are suitable for pipe sizes from DN15, DN20, DN25, DN32, DN40 to DN300, applicable for liquids (water, high temperature water, chemical liquid, gasoline, etc.), gases (natural gas, compressed air, etc.), and saturated, superheated steam.

Specification

Model	CHN-LUGB
Measuring Media	Liquids, gases, steam
Line Size *	DN15-DN300
Accuracy	Gas (uncompensated): DN15-DN25 ±1.5%, DN32-DN200 ±1.0%, DN250-DN300 ±1.5% Liquid (uncompensated)：DN15-DN300 ±1.0% With integrated temperature and pressure compensation: DN25-DN300 ±1.5%
Range Ratio	1:8~1:30
Medium Temperature	-40℃ ~ +260℃ (for higher temperatures contact us)
Power Supply	24V DC±5%, Li-ion battery (3.6V DC)
Compensation Mode *	Temperature compensation, pressure compensation, or integrated temperature and pressure compensation (Optional)
Display *	LCD display (Optional)
Output Signal *	Frequency, or 4-20mA
Communication Interface *	RS485 (Optional)
Connection *	Clamp, or Flange connection
Body Material	316 stainless steel
Protection Class	IP65
Ambient Temperature	-10℃ ~ +60℃

Flow Range

Diameter Nominal (mm)	Liquid		Gas
Diameter Nominal (mm)	Flow Range (m³/h)	Frequency Range (Hz)	Flow Range (m³/h)	Frequency Range (Hz)
15	0.3~5	35~450	4~20	300~1600
20	0.6~10	29~380	6~30	230~1200
25	1.2~16	25~320	8~55	170~1100
32	1.8~20	18~200	10~120	100~1180
40	2~40	10~190	27~205	130~1040
50	3~60	8~150	35~380	94~920
65	4~85	6~120	60~640	90~910
80	6.5~130	4.1~82	86~1100	55~690
100	15~220	4.7~69	133~1700	42~536
125	20~350	3.2~57	150~2000	38~475
150	30~450	2.8~43	347~4000	33~380
200	45~800	2~31	560~8000	22~315
250	65~1250	1.5~25	890~11000	18~221
300	95~2000	1.2~24	1360~18000	16~213

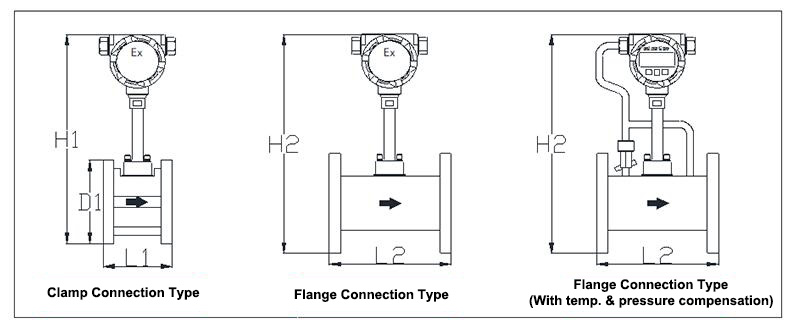

Dimensions

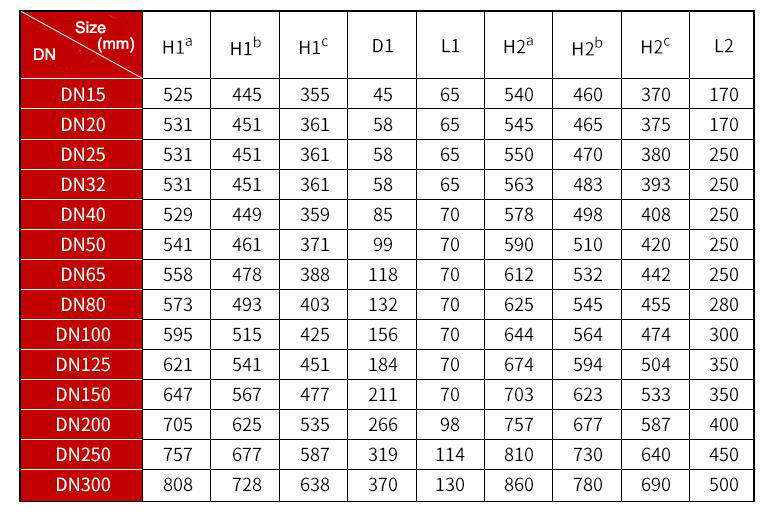

Note: This vortex flowmeter has 3 types of pillars a, b, c, with different sizes. You can check the height of the entire meter corresponding to the H superscript in the table above.
For the height of vortex flow meter with 150℃ sensor without compensation, see H superscript “c”; for the vortex flow meter with 150℃ sensor with compensation, see H superscript “b”; for the vortex flow meter with 260℃ sensor, see H superscript “b”; for the vortex flow meter with 300℃ sensor, see H superscript “a”.
