Portable Dew Point Meter for Compressed Air

$6998.12

Portable dew point meter for compressed air, interfaces usb, measuring range -80~+50 °Ctd, 20~+70°C, can be connect

SKU: CHN-DPM-510

Free Shipping Worldwide

Delivery date: 6-12 days

Overview
Documents

Professional portable dew point meter is an instrument for quickly measuring the moisture content of various N2, 02, chemical gases and mixed gases. Photo key saves current screen as an image file, no additional software neces-sary.

Specification:

Model	CHN-DPM-510
Colour Screen	3.5" Touchpanel TFT transmissive, graphics, curves, statistics
Interfaces	USB
Measuring Ranges	-80~+50 °Ctd, 20~+70°C, 0~100 % rF
Accuracy	±0.5 °Ctd (-10~+50°Ctd), typical: ±2°Ctd
Power Supply Unit	100~240 VAC, 50~60 Hz, 12VDC~1A
Power Supply for Sensors	Output voltage: 24 VDC ± 10%
Power Supply for Sensors	Output current: 120 mA continuous operation
Current Supply	Internal rechargeable Li-Ion batteries charging time approx 4 h DPm510 operation: >4h depending on current consumption of external sensor
Pressure Range	Mounting without measuring chamber: -1~50 bar Standard
	Mounting with measuring chamber: 2~16 bar
	High pressure version up to 350 bar
Response Time T95	- 50°Ctd~-10°Ctd<10sec
Response Time T95	10°Ctd~-50°Ctd<5 minutes
Humidity Measures	g/m³, mg/m³, ppm V/V, g/kg,°Ctdatm, % Rf
Operating Temperature	-20~70°C Measuring gas temperature
Operating Temperature	0~50°C Ambient temperature
Storage Temperature	-20 to +70°C
Material	Plastic PC/ABS
Dimensions	12596245mm
Weight	550g
Certificate	ISO 9001:2015

Input Sensor

Current Signal (0–20 mA/4–20 mA) internal or External Power Supply	Measuring Range	0–20 mA/4–20 mA
	Resolution	0.0001 Ma
	Accuracy	±0.03 mA±0,05 %
	Input Resistance	50Ω
Voltage Signal (0 - 1V)	Measuring Range	0-1V
	Resolution	0.05 mV
	Accuracy	0.2 mV±0.05 %
	Input Resistance	100 kΩ
Voltage signal (0 - 10 V/30 V)	Measuring Range	0-10V/30V
	Resolution	0.5 Mv
	Accuracy	±2 mV ±0.05 %
	Input Resistance	1MΩ
RTD, Pt100	Measuring Range	200-850°C
	Resolution	0.1°C
	Accuracy	±0.2°C at -100~400 °C
	Accuracy	±0.3°C (further range)
RTD, Pt1000	Measuring Range	200-850°C
	Resolution	0.1°C
	Accuracy	±0.2°C at -100~400 °C
	Accuracy	±0.3°C (further range)
Pulse	Measuring Range	minimal pulse length 100 μs frequency 0~1 kHz max, 30 VDC

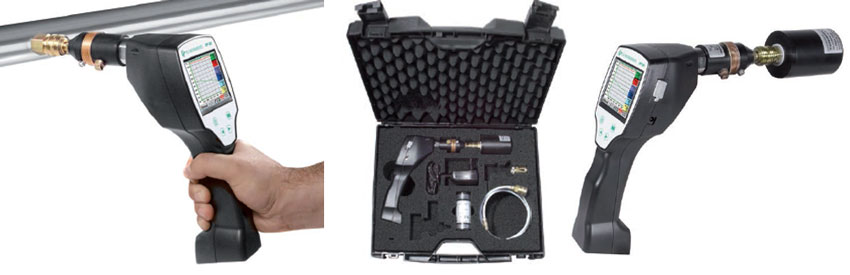

Packing List of Dew Point Meter

Number	Name	Quantity
1	Mobile dew point meter DPM510 with one additorial input, external sensors	1
2	Mobile measuring chamber up to 16 bar	1
3	Diffusion-tight PTFE hose with quick connector, length 1 m	1
4	Power supply for DPM510 dew point meter	1
5	Control and calibration set 11.3 % RH	1
6	Quick-lock coupling	1
7	Dry container for dew point sensors	1
8	Transportation case (small) for DPM 510	1

Detail
Tips: Why do you need an ATO dew point meter?

ATO dew point meter has a 3.5 ″ graphic display, which can be easily operated by touch. The color measurement curve has a unique graphic display. It is an ideal dew point meter for detecting compressed air. The method displays the dew point curve / switching behavior of the dryer for a long time. Up to 100 million measured values can store the date and the name of the measuring station. The measured data can be transmitted to the computer via a USB flash drive. In the range of as low as -80 ° Ctd realize accurate dew point measurement. All necessary humidity measurement variables can be calculated, such as g / m³, mg / m³, ppm, V / V, g / kg, ° Ctdatm. ATO portable dew point analyzer has fast response, good linearity, advantages such as stable readings.
