Home > Test & Measurement > Digital Panel Meter

Send Inquiry

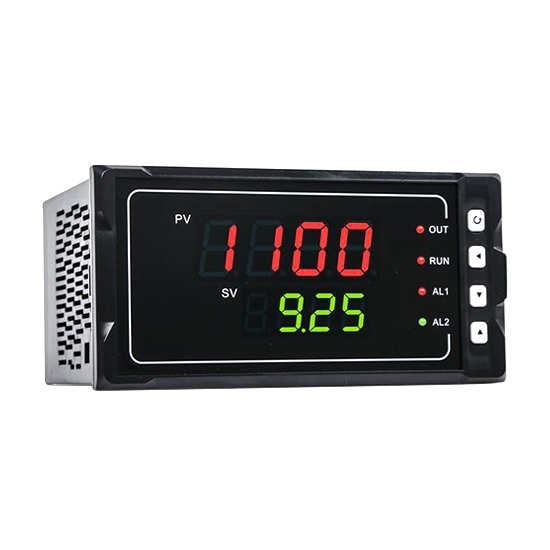

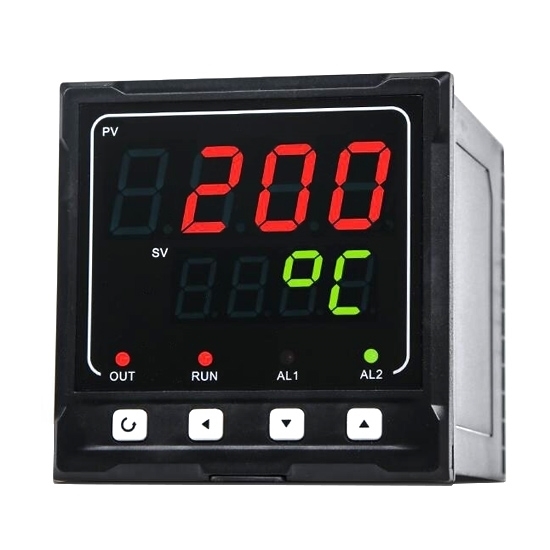

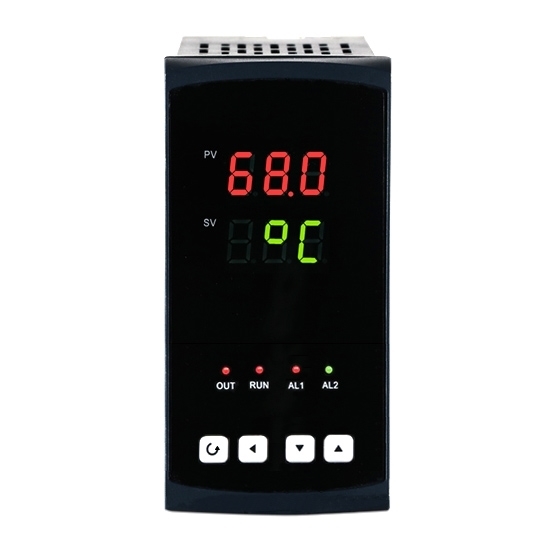

Digital Panel Meter for RTD/Pressure/Level Sensor, Double 4 Digit

$97.88

Intelligent digital panel meter has double 4 digit LED for PV and SV display. Digital display controller also has optional fu

SKU: CHN-DPM-USD4D

Free Shipping Worldwide

Delivery date: 6-12 days

Overview
Documents

Digital panel meter has double 4 digit LED for PV and SV display. Digital display controller can be used for various sensors and transmitters, such as temperature sensor, pressure sensor, flow sensor, level sensor, displacement sensor, AC/DC current sensor, transmitter with 4-20mA/0-5V output, etc.

Specification:

Basics	Model	CHN-DPM-USD4D-1100
	Dimension (WHL) *	A: 16080110mm horizontal, hole size 15276mm B: 80160110mm vertical, hole size 76152mm C: 9696110mm, 9292mm D: 9648110mm horizontal, hole size 9245mm E: 4896110mm vertical, hole size 4592mm F: 7272110mm, hole size 6868mm H: 4848110mm, hole size 45*45mm
	Shipping weight	2 kg
Technical parameters	Display range	-1999~1999
	Measurement accuracy	0.3%FS
	Display method	One channel double 4 digit LED display (PV and SV)
	Input signal *	Thermocouple, RTD, linear resistance, presssure sensor, level sensor, current sensor, voltage sensor, analog signal, etc. (See details in the selection chart.)
	Output signal *	A0: No output A1: 4-20mA (RL≤600Ω) A2: 1-5V (RL≥250KΩ) A3: 0-10mA (RL≤1.2KΩ) A4: 0-5V (RL≥250KΩ) A5: 0-20mA (RL≤600Ω) A6: 0-10V (RL≥4KΩ) T: RS485/232 (Modbus)
	Alarm mode*	R0: No alarm output R1: 1 alarm relay R2: 2 alarm relays Note: 1 alarm relay includes: NO (AC 220V/3A, DC 30V/5A), 2 alarm relays include: NO+NO (AC 220V/3A, DC 30V/5A). When choosing the *dimension H (4848110mm), the relay capacity is AC 220V/0.6A, DC 30V/0.6A.*
	Additional power supply *	P0: No power supply P1: DC 24V, ＜30mA Note: Additional power supply can provide DC power supply for other devices such as sensors.
	Meter power supply *	A: AC 100-240V, 50/60Hz D: DC 20-29V
	Power dissipation	≤5W
	Temperature drift	0.2%FS/year
	Shell material	ABS
	Isolation method	Isolation between input, output and power supply
	Environment temperature	Temperature0~50℃ (32~122℉), humidity≤85%RH (no condensation)

Input signal selection chart:

Number	Signal	Parameter code	Range	Number	Signal	Parameter code	Range
0	B type	T--B	400～1800℃	17	0-500Ω	R0.5K	Full range
1	S type	T--S	0～1600℃	18	0-350Ω	0350	Full range
2	K type	T--K	0～1300℃	19	30-350Ω	3350	Full range
3	E type	T--E	0～1000℃	20	0-20mV	20MV	Full range
4	T type	T--T	-200.0～+400.0℃	21	0-40mV	40MV	Full range
5	J type	T--J	0～1200℃	22	0-100mV	100M	Full range
6	R type	T--R	0～1600℃	25	0-20mA	20MA	Full range
7	N tyep	T--N	0～1300℃	26	0-10mA	10MA	Full range
8	F2	T-F2	700～2000℃	27	4-20mA	4-20	Full range
9	Wre3-25	T-L3	0～2300℃	28	0-5V	0-5V	Full range
10	Wre5-26	T-L5	0～2300℃	29	1-5V	1-5V	Full range
11	Cu50	Cu50	-50.0～+150.0℃	31	0-10V	10V	Full range
12	Cu53	Cu53	-50.0～+150.0℃	32	(0-10mA)^0.5	10MA.	Full range
13	Cu100	C100	-50.0～+150.0℃	33	(4-20mA)^0.5	20MA.	Full range
14	Pt100	P100	-200.0～+650℃	34	(0-5V)^0.5	0-5V.	Full range
15	BA1	BA1	-200.0～+600℃	35	(1-5V)^0.5	1-5V.	Full range
16	BA2	BA2	-200.0～+600℃	-	-	-	-

Wiring diagram:

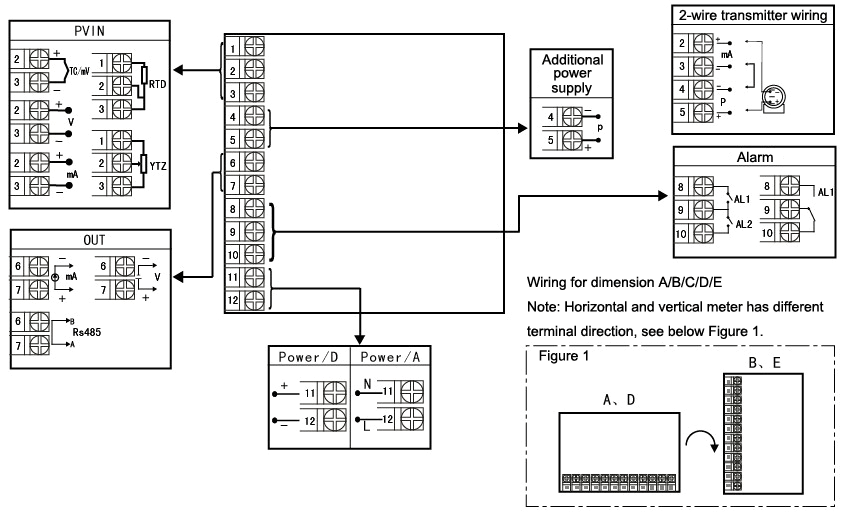

1. The wiring for dimension A/B/C/D/E

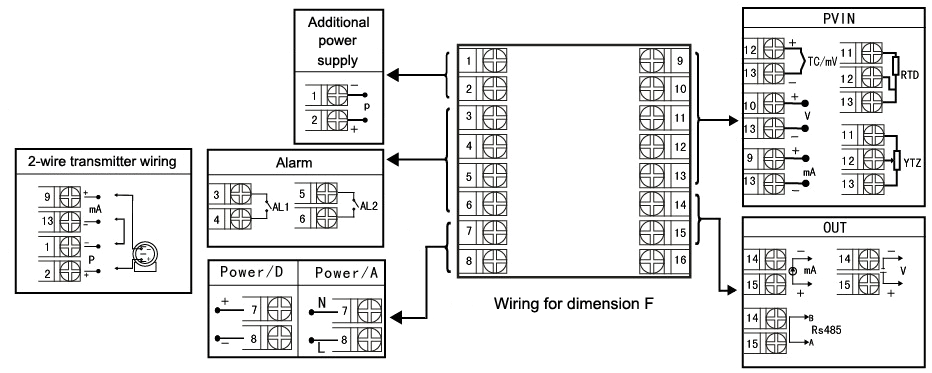

2. The wiring for dimension F

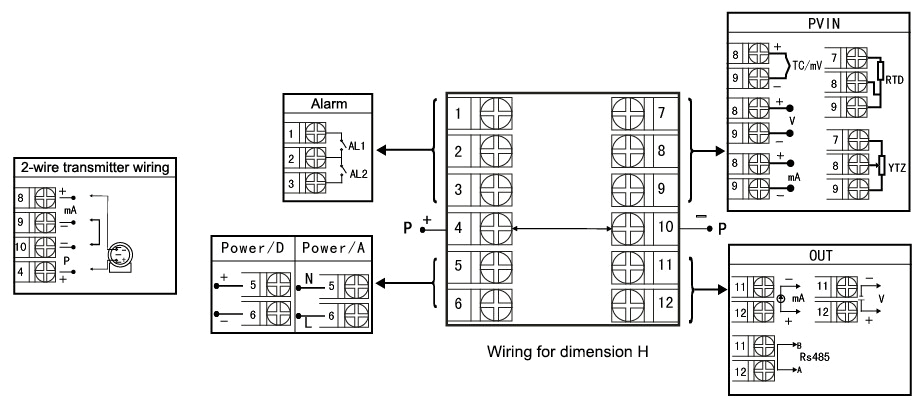

3. The wiring for dimension H
