Home > Test & Measurement > Crane Scale

Send Inquiry

Digital Crane Scale 30 ton/50 ton

$5025.13

Digital crane scale with seamless steel pipe housing has a 5 digits red LED display with optional weighing units kg / lbs and

SKU: CHN-CRS-50T

Free Shipping Worldwide

Delivery date: 6-12 days

Overview
Documents

Crane scale with 5 digits red LED display has capacity 30000kg (30 ton) or 50000kg (50 ton), optional weighing units kilograms (kg) or pounds (lbs), rechargeable battry with 100 hours continuous operation time.

Features:

Crane scale with seamless steel pipe housing has higher security and protection class IP65.
Digital crane scale doesn't occupy the space and can realize effective monitoring and control.
It makes the metering work in the process of lifting, loading and unloading and carry out continuously, saving manpower, time and cost.
The operation and calibration of crane scale is simple.
Digital crane scale has multi-functions, high precision, strong anti-cheating ability and low maintenance cost.
Customizable monitoring mode: RS232 interface for long distance monitoring, wireless large screen and wireless indicator.

Specification:

Model	CHN-CRS-GSP911-30	CHN-CRS-GSP911-50
Capacity *	30000kg (30 ton)	50000kg (50 ton)
Shipping weight	115kg	330kg
Division value	10kg	20kg
Number of division	Standard number of division: 2000 to 3000, maximum number of division: 15000
Accuracy standard	According to OIML class III
Display	5 digits red LED display, 45mm (1.8") font height
Filtering	Optional low / medium / high
Units	Optional kg / lbs
Zero range	4%F.S.
Tare range	100%F.S.
Overload display	100%F.S.+9e
Maximum safety load	125%F.S.
Ultimate load	400%F.S.
Housing material	Seamless steel pipe (powder coated)
Protection class	IP65
Battery of crane scale	Fully sealed lead acid battery, 6V/7Ah
Battery continuous operation time	≥100 hours
Battary charger	Input: AC 100V-240V, output: DC 9V/1000mA
Operating temperature	-20~+50℃ (-4~+122℉)
Operating humidity	≤85%RH under 20℃ (68℉)
Functions	Tare, zero, auto zero tracking, total, hold, overload warning and record, low battery alarm, automatic power off, infrared remote control calibration
Maximum remote control distance	15m (49ft)
Battery of infrared remote controller	2 AAA batteries, 1.5V * 2
Acceleration of gravity	Default value: g=9.793m/s² (can be regulated)
Package included	1 * crane scale (with rechargeable battery) 1 * battery charger 1 * remote controller (with 2 AAA batteries) 1 * user manual

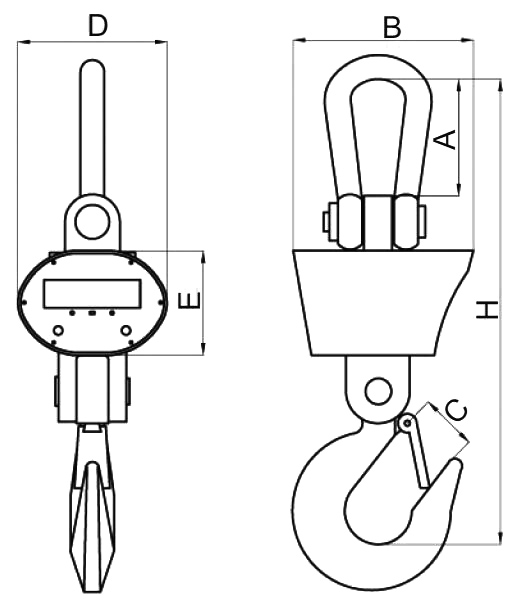

Crane scale dimension:

Capacity	Dimension (mm)
Capacity	A	B	C	D	E	H
30000kg (30 ton)	260	340	105	300	200	1055
50000kg (50 ton)	360	600	110	440	320	1360

Tips: Crane scale troubleshooting

The digital crane scale meter does not display.
If the meter does not display after booting, the battery is damaged, replace the lead acid battery. If the button is damaged, replace the button.
The lead acid battery cannot be charged.
The charger is damaged, replace the charger.
The charging indicator is not light.
The battery charger is not plugged in, check the socket. If the charger is damaged, replace the charger.
The weight cannot be displayed.
The circuit board or load cell is damaged, replace the circuit board or crane scale load cell.
Repeatability becomes poor.
If the battery voltage is too low, the battery needs to be recharged. Or keep the weight in a steady state when measuring.
Weighing error is big.
It may cause by no zero operation before loading. So reset zero and recalibrate before loading.
There is no wireless signal.
The antenna or the lead wire is in poor contact, replace the antenna or welding lead wire. Or the crane scale power supply is not connected.
Display value flashes.
The battery voltage is too low, the battery needs to be recharged immediately.
