Home > Test & Measurement > Colorimeter

Send Inquiry

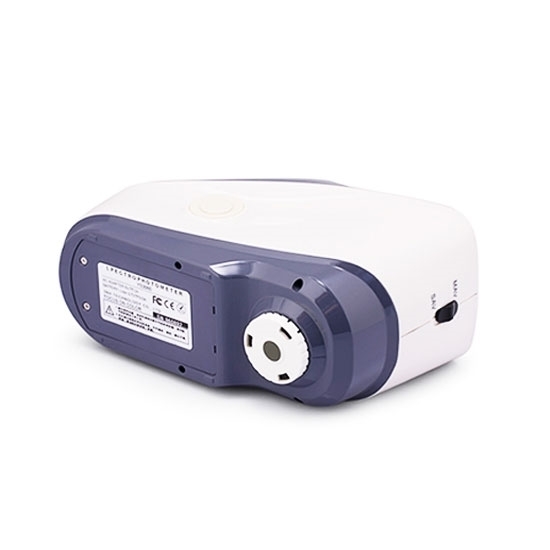

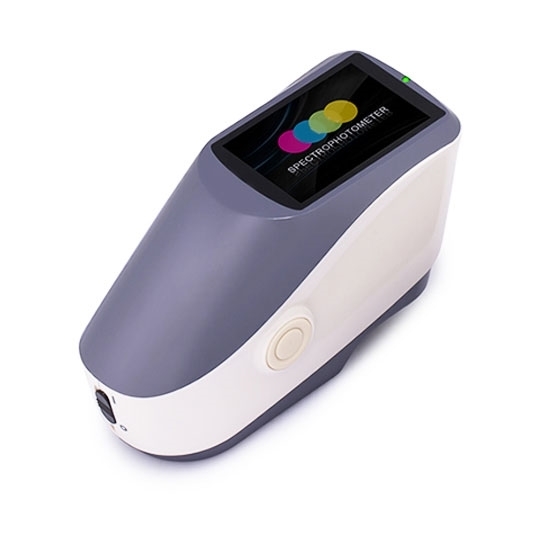

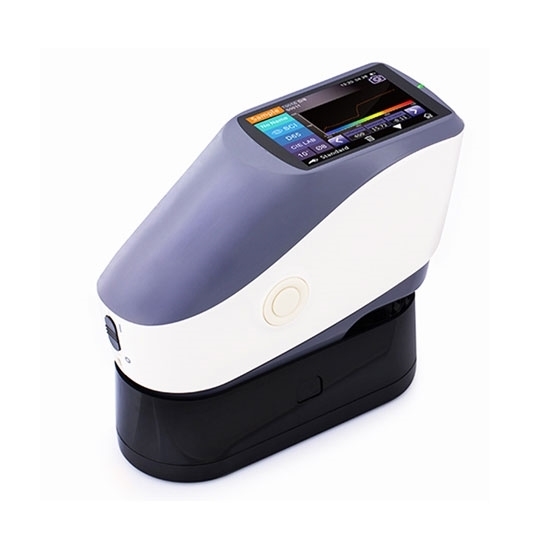

Handheld Spectrophotometer, Caliber 4mm/8mm

$5168.75

Professional handheld spectrophotometer with large digital LCD display, 4mm/8mm caliber, measuring fast and accurate measurem

SKU: CHN-CM-YS3060

Free Shipping Worldwide

Delivery date: 6-12 days

Overview
Documents

Portable handheld spectrophotometer is used for accurate color measurement in plastic electronics, paint inks, textile and garment printing, printing, ceramics, etc, caliber 4mm, manufacturer direct sales.

Note: The user can perform black and white calibration through the standard black and white box of the instrument and refer to the user manual to complete the calibration independently.

Specification:

Model	CHN-CM-YS3060
Optical Geometry	Reflect: di:8°, de:8° (diffused illumination, 8-degree viewing angle)
Integrating Sphere Size	48mm
Light Source	Combined LED Light, UV Light
Spectrophotometric Mode	Concave Grating
Sensor	256 Image Element Double Array CMOS Image Sensor
Wavelength Range	400-700nm
Wavelength Interval	10nm
Semiband Width	10nm
Measured Reflectance Range	0-200%
Measuring Aperture	Dual Aperture: 10mm/8mm & 5mm/4mm
Specular Component	SCI&SCE
Color Space	CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB
Color Difference Formula	ΔEab, ΔEuv, ΔE94, ΔEcmc(2:1), ΔEcmc(1:1), ΔE00v, ΔE(Hunter)
Other Colorimetric Index	WI(ASTM E313, CIE/ISO, AATCC, Hunter), YI(ASTM D1925, ASTM 313), TI(ASTM E313, CIE/ISO),Metamerism Index MI, Staining Fastness, Color Fastness, Color Strength, Opacity, 8° Glossiness
Observer Angle	2°/10°
Illuminant	D65, A, C, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12
Displayed Data	Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset
Measuring Time	2.6s
Repeatability	MAV/SCI: ΔE*≤0.03
Inter-instrument Error	MAV/SCI: ΔE*≤0.15
Measurement Mode	Single Measurement, Average Measurement
Locating Method	Camera View Finder Locating
Battery	Li-ion battery. 5000 measurements within 8 hours
Dimension	18477105mm
Weight	600g
Illuminant Life Span	5 years, more than 3 million times measurements
Display	3.5-inch TFT color LCD, Capacitive Touch Screen
Data Port	USB/RS232
Operating Environment	0~40℃, 0~85%RH (no condensing), Altitude<2000m
Storage Environment	-20~50℃, 0~85%RH (no condensing)

Packing List

No.	Name	Quantity
1	Spectrophotometer	1
2	Φ8 Measuring caliber	1
3	Φ4 Measuring caliber	1
4	1x3 Measuring aperture	1
5	Correction box	1
6	White work cover	1
7	Power adapter line	1
8	USB data cable	1
9	Bluetooth adapter	1
10	Wiping cloth	1
11	CD	1
12	Instruction manual	1
13	Certificate of Warranty	1
14	Decoration list	1
15	Universal test module (Optional match)	1
16	Powder test box (Optional match)	1

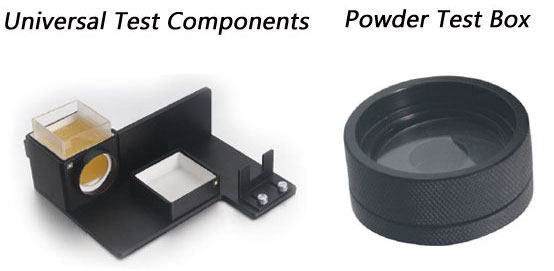

Color Spectrophotometer Accessories

Note:

1. Universal Test Components
Features: Powerful accessory with high sensitivity which is used to measure liquid, paste and powder.
Dimension: L*W*H=190x190x85 mm

2. Powder Test Box
Features: Easy to use; Focus on measuring powder.
Dimension: ø50X25mm

Applications

Tips: The importance of handheld spectrophotometer in color detection in production processes

In the production process, if the color difference meter is used to measure the color of the sample, we will find that the color of the product changes due to the production process. What effect does the production process have on the final color change of the product?

For example, heating causes a certain change in the yellowness, brightness, and gloss of the product. This change may be sharp or may occur as a gradual change. Cooling, which causes differences in product gloss and brightness; grinding, which causes differences in product brightness and surface color. Not only that, but the production process also contains many factors, such as humidity variation, overexposure, molding, extrusion, roll milling, brush removal, embossing, calendering, etc. If the color difference detection is not performed on these factors, it will cause the appearance of the product. The change. Mastering the production process and knowing some factors that cause the color change of the product to be out of control, the operator can monitor the production process with a simple color detection instrument to control the final color of the product.

Therefore, it is not only economical and time-saving to control the color of products in the production process by using handheld spectrophotometer, but also important to maintain the reputation of products in front of customers. Color control is not difficult and can be done at any stage of the production process. However, it is best to start as early as possible with color control to ensure that the final color meets the requirements.
