High percision non-contact infrared temperature sensor with high performance sensor probe, millisecond response speed, can measure temperature continuously, small in size, suitable for narrow working conditions.

Specification

• Model: CHN-BRW600-400
• Measurement Range (Optional): 0 ~ 100℃, 200℃, 300℃
• Measuring Distance: 10 ~ 30 cm
• Power Supply: 24VDC
• Accuracy: ±2% or ±2℃
• Emissivity: 0.95
• Signal Output: 4-20mA
• Working Temperature: 85℃
• Response Time: 300 ms
• Response Wavelength: 8 - 14um
• Maximum Current: < 50mA
• Storage Temperature: -40 ~ 85℃
• Ambient Temperature: 0 ~ 60℃ (Better measurement effect at 0~ 50℃)
• Relative Humidity: 10 ~ 95% (No Condensation)
• Object Distance Than: 20 : 1
• Protection Grade: IP65
• Dimension: L113mm * φ18.7mm
• Shell Material: Aluminium Alloy
• Weight: 1kg

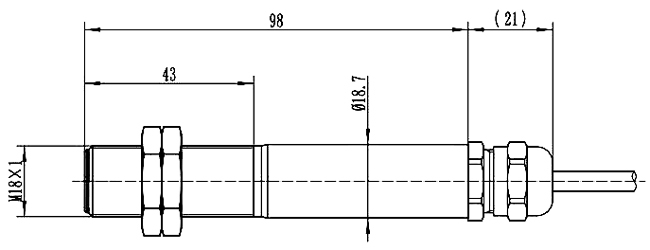

Dimensions (Unit: mm)

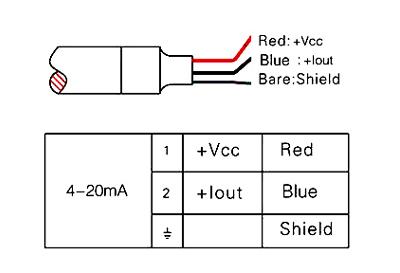

Wiring

Tips: Advantages of non-contact infrared temperature sensor

• The non-contact infrared temperature sensor reads moving objects. Since contact temperature sensors do not work well on moving objects, infrared temperature sensors are very suitable for measuring the temperature of tires, brakes and similar equipment;
• The infrared temperature sensor will not wear out, and there will be no physical friction without contact, so it has a longer service life;
• Infrared temperature sensors can provide more details, IR sensors can provide more details during measurement than contact devices, just point it at different locations on the object being read;
• Infrared temperature sensors can be used to detect motion by measuring temperature fluctuations in the field of view.
