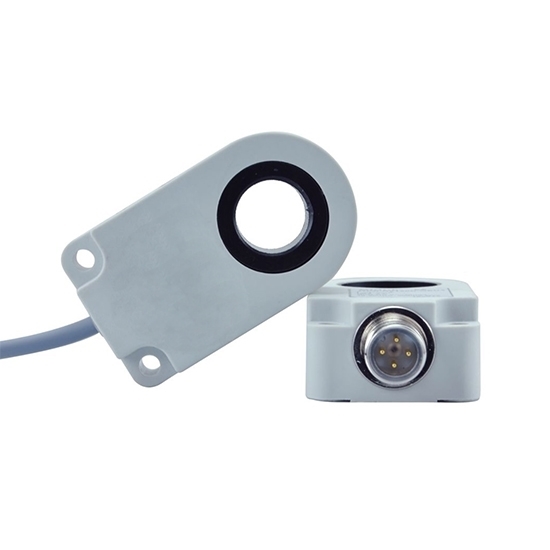

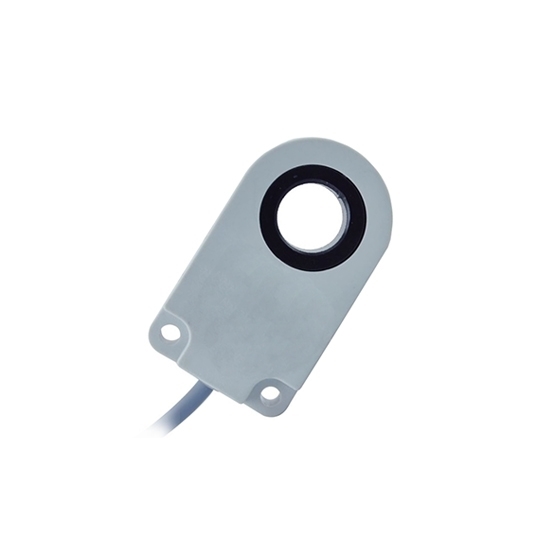

Inductive proximity sensor with 12mm diameter, NPN/ PNP/ 2 wire three output types, manufacturer direct sale. It is generally used to detect small objects, such as blanking detection, small steel balls, small springs, small rivets, metal wire breakage, wire breakage detection.

Features
• Multiple sensing options for a wide range of applications.
• Cable or micro quick-disconnect styles provide flexibility.
• Adjustable sensitivity on some models.
• Reverse polarity, short circuit & overload protection.

Specification

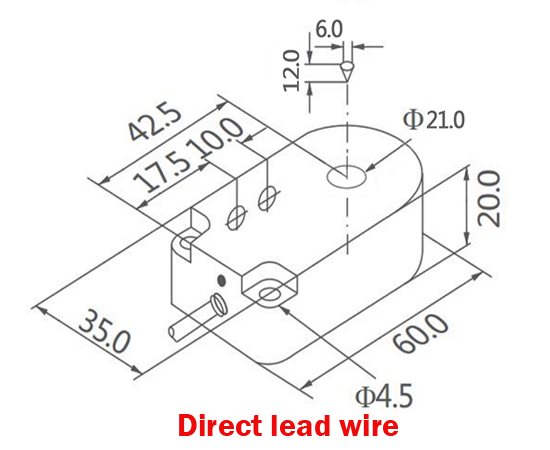

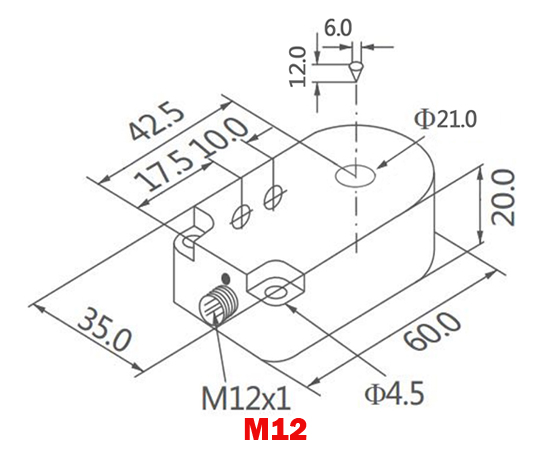

Dimension: (mm)

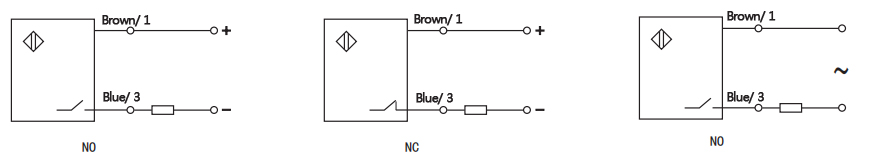

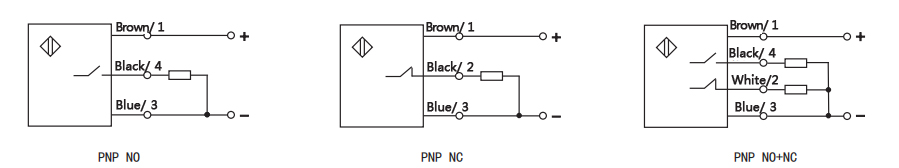

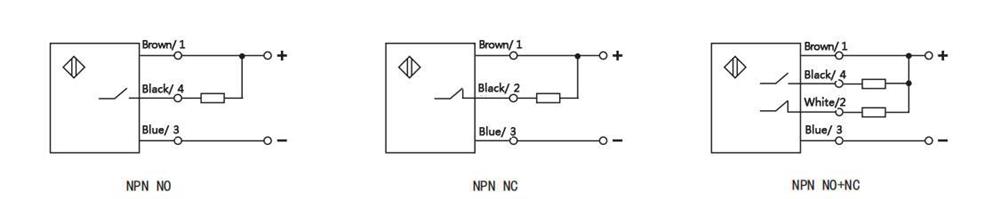

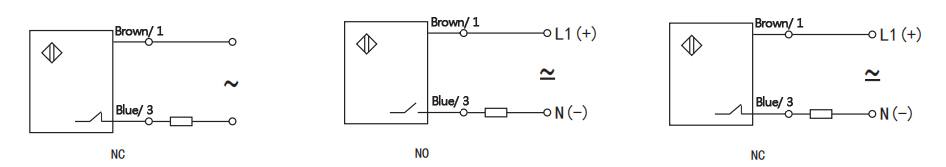

Wiring diagram:

Tips:  How to Choose the Models of Inductive Proximity Sensor?

1. Regarding the sensitivity adjustment method, put the detection object into the center of the ring, adjust the knob clockwise until the action indicator lights up, remove the detection object, and then adjust counterclockwise until the action indicator goes out, and then adjust the two clockwise. Circle around, the sensitivity at this time is the best. The ring proximity switch is equipped with a sensitivity adjustable knob to adapt to different detection occasions. Different manufacturers have different adjustment methods.

2. Regarding the installation of the ring proximity switch, it is best to have a switch-sized position between up, down, left, and right, which is the best installation state. When using the switch, you should try to understand the function of the switch and how to use it, so as to maximize the function of the product.
