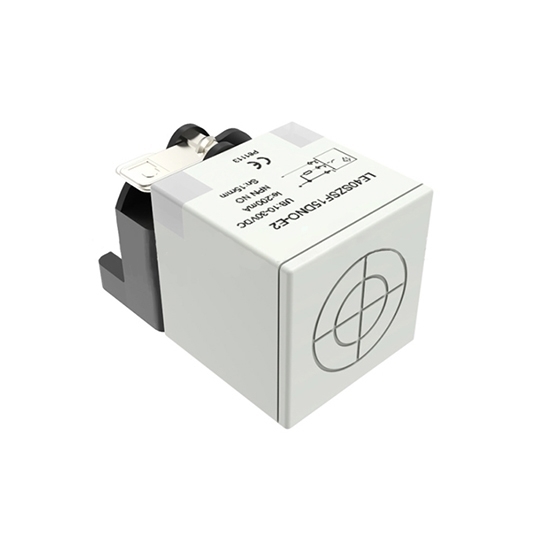

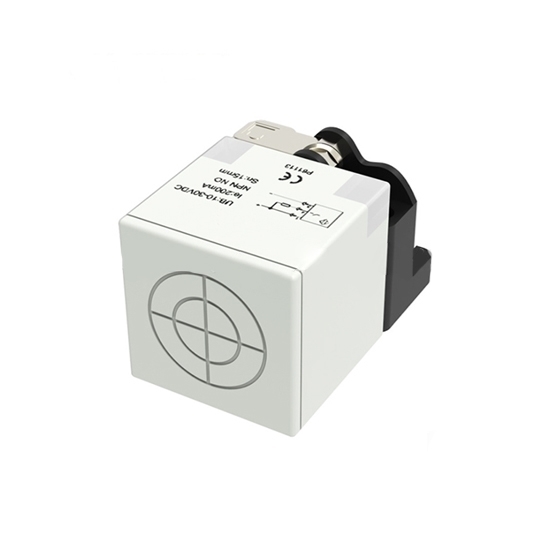

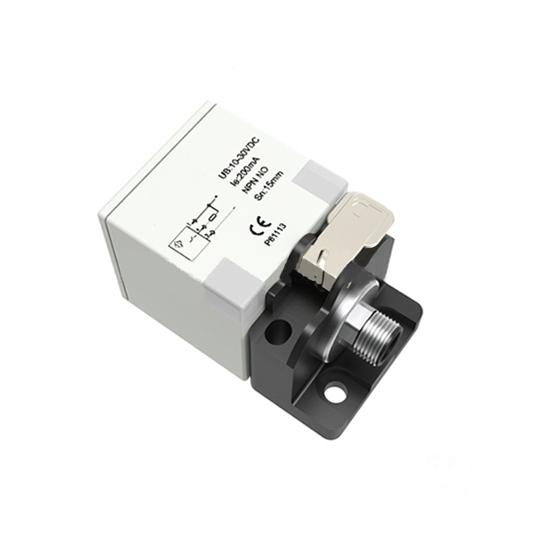

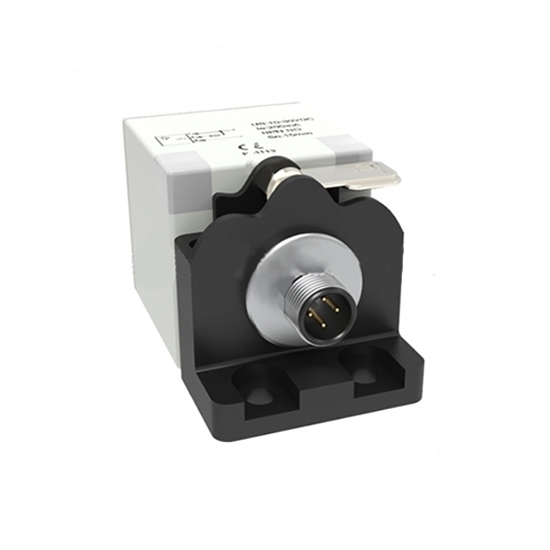

Analog Output Proximity Sensor, Inductive, 0-10V/ 0-20mA

Factory price M12 proximity sensor with voltage/ current/ voltage+current three output methods can be chosen. The flush/ non flush proximity sensor has advantages of simple structure, high sensitivity, low output impedance, strong anti-interference ability and high measurement accuracy.

Specification

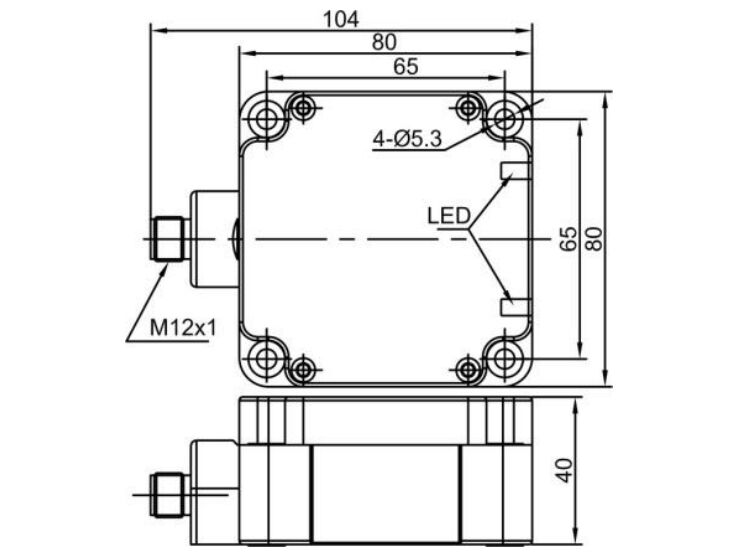

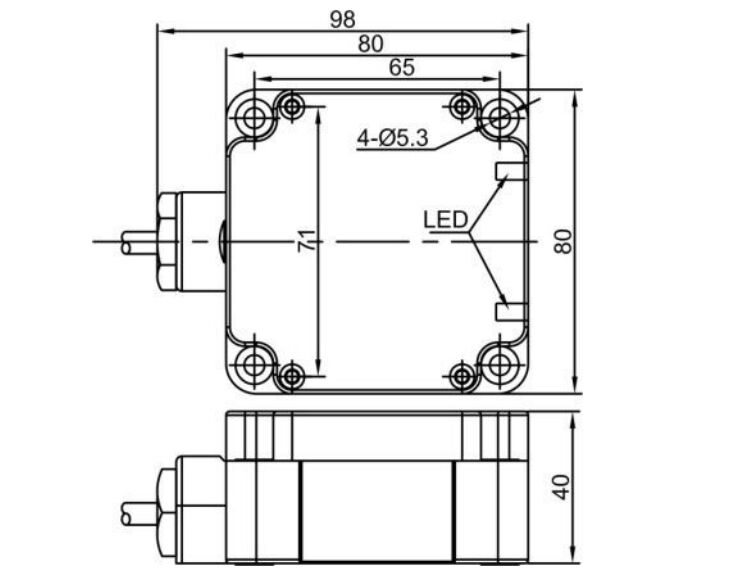

Dimension (unit=mm)

Wiring diagram

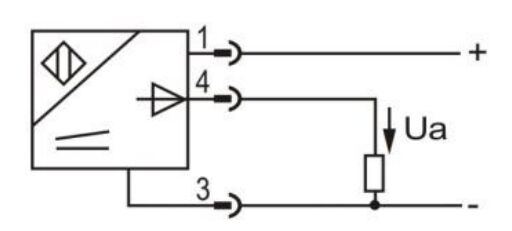

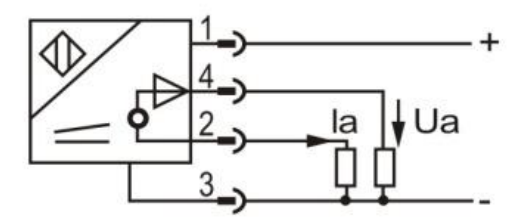

                              0-10V                                                                                           0-10V+ 0-20mA

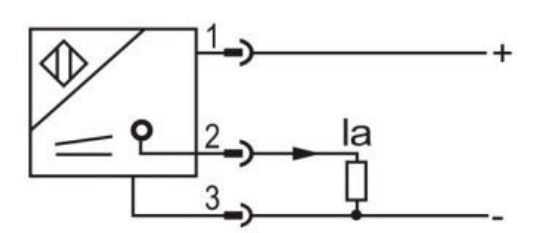

                               0-20mA/ 4-20mA

Tips: The Function of Proximity Sensor.

1. Inspection distance
Detect the stop, start, and pass positions of elevators and lifting equipment; detect the position of the vehicle to prevent two objects from colliding; detect the set position of the working machine, the limit position of the moving machine or component; detect the stop position of the rotating body, the valve On or off position.

2. Size control
Size control device for sheet metal punching and shearing; automatic selection and identification of the length of metal parts; detection of the height of stacks during automatic loading and unloading; detection of the length, width, height and volume of objects.

3. Whether the detection object exists
Detect whether there are product packaging boxes on the production packaging line; detect whether there are product parts.

4. Rotation speed and speed control
Control the speed of the conveyor belt; control the speed of the rotating machinery; control the speed and the number of revolutions together with various pulse generators.
