Proximity Sensor, Inductive, M30, PNP

Inductive proximity sensor with M30*1.5 thread, PNP type output, manufacturer direct sale.

Functions:

• Red LED checks the state of proximity sensor

• High repeated positioning accuracy

• High switching frequency

• Wide voltage range

• Antivibration, dust, water and oil prevention

• Reverse power protection, short circuit protection, directly connecting with PLC

• Can replace small switches and limit switches

Specification:

Dimensional drawing (unit: mm):

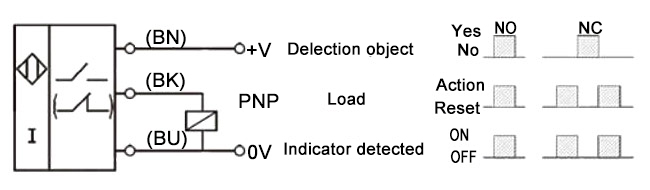

Wiring diagram:

Tips: Proximity sensor's common problems on detect distance

1. Proximity sensor can't detect the distance of detected object.
2. Sensor is installed within the detection range with unstable signal in the actual detection (sometimes detectable and sometimes undetectable).
3. Actual detection distance is different from the standard detection distance indicated in sensor (or less than the detection distance, or larger than the detection distance).

Since there is a certain tolerance detection distance in proximity sensor that is 10% of the standard detection distance, that is to say, the detected object installed at the maximum distance could be influenced by its material so that the perception of sensor is at the critical point, causing the object sometime detectable and sometimes not. In addition, some equipment or detected object has certain distance deviation in the process of operation or swinging. If a detected object is installed at the maximum detection distance, there could be a malfunction or bad reception.
