Proximity Sensor, Inductive, M24, 2 Wire, 12V

Inductive proximity sensor with M24*1.5 thread, DC 2 wire output, manufacturer direct sale.

Functions:

• Red LED checks the state of proximity sensor

• High repeated positioning accuracy

• High switching frequency

• Wide voltage range

• Antivibration, dust, water and oil prevention

• Reverse power protection, short circuit protection, directly connecting with PLC

• Can replace small switches and limit switches

Specification:

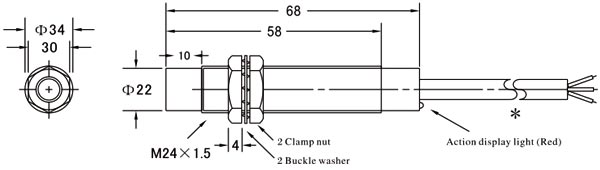

Dimensional drawing (unit: mm):

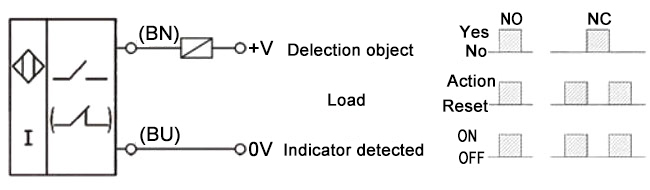

Wiring diagram:


Tips: Unshielded proximity sensor installation notes
The installation of unshielded proximity sensor will encounter many problems. For example, there is interference between proximity sensor and mounting bracket and mutual interference between proximity sensors etc.

1. If a proximity sensor is installed in a metal bracket, its height of proximity sensor should be more than two times longer than the detection distance. The surrounding metal distance should be as long as the diameter of proximity sensor in order to avoid the influence of bracket.
2. As for the distance between proximity sensors, the face to face installation distance should be two times longer than the detection distance and the side-by-side distance should be two times longer than the diameter of proximity sensor.
