Proximity Sensor, Inductive, M12, Shielded, NPN

$38.79

M12 inductive proximity sensor can detect a variety of metals, small size, long life, anti-interference ability, shielded typ

SKU: CHN-PROS-I12

Free Shipping Worldwide

Delivery date: 6-12 days

Overview
Documents

Inductive proximity sensor with M12*1 thread, NPN type output, manufacturer direct sale.

Functions:

Red LED checks the state of proximity sensor
High repeated positioning accuracy
High switching frequency
Wide voltage range
Antivibration, dust, water and oil prevention
Reverse power protection, short circuit protection, directly connecting with PLC
Can replace small switches and limit switches

Specification:

Model			CHN-PSI-12A2ZN
Installation type			Shielded	Unshielded
All the output methods	DC type	NPN	NO	NO
			NC	NC
			NO+NC	NO+NC
		PNP	NO	NO
			NC	NC
			NO+NC	NO+NC
		2 wire	NO	NO
			NC	NC
	AC type	2 wire	NO	NO
			NC	NC
Detection range			2mm±10%	4mm±10%
Setting distance			0-1.6mm	0-3.6mm
Delay distance			≤10% detection range
Detection object			Magnetic metal (the detection distance decreases when it is non-magnetic metal)
Standard detection object			Iron 12121mm	Iron 15151mm
Response frequency			DC: 1kHz, AC: 50Hz
Supply voltage			DC type: DC 12-24V (6-36V), impulse (p-p) 10% below; AC type: AC 110-220V (90-250V) 50/60Hz
Withstand voltage			AC1000V 50/60Hz 1min between charging part and housing
Voltage influence			Inside ±15% rated supply voltage range, at rated supply voltage value, inside ±10% detection distance
Consumption current			N/P type: ≤13mA, D type: ≤0.8mA, A type: ≤1.7mA
Control output			N/P type: ≤300mA, D type: ≤200mA, A type: ≤400mA
Loop protection			N/P/D type: reversal connection protection, surge absorption, load short-circuit protection, A type: surge absorption
Ambient temperature & humidity			Operation temperature/storage temperature: -30~65℃ (no freeze, no dew); Operation humidity/storage humidity: 35~95%RH
Temperature influence			Temperature range -30~65℃, at +23℃, ±15% detection distance; Temperature range -25~60℃, at +23℃, ±10% detection distance
Insulation impedance			≥50MΩ (DC500 megameter) between charging part and housing
Material			Housing: Nickel plated brass, Detection surface: ABS
Protection class			IP67
Cable length			1.2m

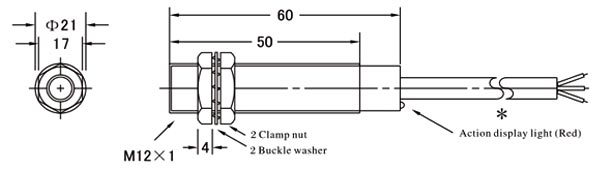

Dimensional drawing (unit: mm):

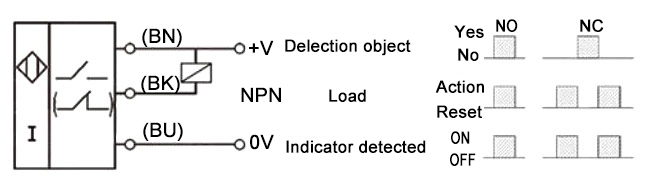

Wiring diagram:

Tips: What are the differences between shielded and unshielded proximity sensor?
As for shielded proximity sensor, due to the special internal shielded function, the magnetic flux is concentrated in front of the sensor. The sensor is horizontally installed in the metal.
As for unshielded proximity sensor, the magnetic flux widely occurs in front of the sensor, because it is especially susceptible to the surrounding metals (magnetic body). Certain gap should be maintained between sensor head and surrounding metals.
