Model	CHN-TAHT-AW2485Y
Weight	47.2g
Dimension (LWH)	1008421mm
Output signal	RS485
Communication protocol	MODBUS RTU
Supply voltage	DC 9-36V/USB: 5V
Measuring range of relative humidity	0~99.9%RH
Measuring range of temperature	-40~+80℃
Accuracy of humidity	±2%RH
Accuracy of temperature	±0.3℃
Resolution	0.1℃/0.1%RH
Long-term stability	＜0.5%RH/year, ＜0.1℃/year
Current consumption	＜50mA (5V)
Sampling period	2s
Maximum communication distance	1000m
Alarm modes	High humidity, low humidity, high temperature, low temperature
Housing material	Engineering plastics
Working environment	Temperature: -40~80℃, humidity: 0~99.9% no condensation
Storage environment	Temperature: 0~60℃, humidity: ＜90%RH

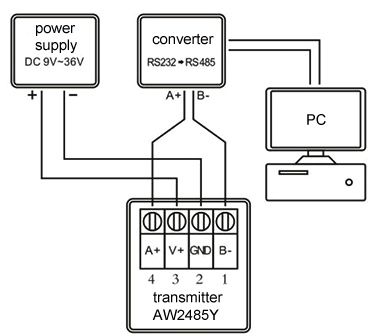

Wiring	White: RS485 B-, black: GND, red: V+, yellow: RS485 A+
