Item	AM2001
Weight	14g

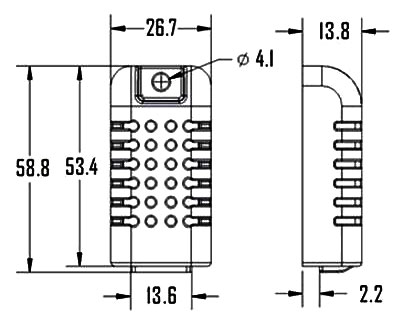

Dimension (LWH)	26.713.858.8mm
Output signal	0-3V
Power supply	DC 4.2-5.5V
Measuring range of relative humidity	0~99.9%RH
Measuring range of temperature	-40~+80℃
Accuracy of humidity	±3%RH
Accuracy of temperature	±0.5℃
Power consumption	≤2mA
Housing material	ABS
Working environment	Temperature: -40~80℃, humidity: 0~99.9% no condensation
Storage environment	Temperature: 0~80℃, humidity: ＜95%RH
Cable length	25cm (customized cable length ≤20m)
Wiring	1 red: VDD (power supply), 2 yellow: Hout (humidity output 0-3V), 3 black: GND (ground)
