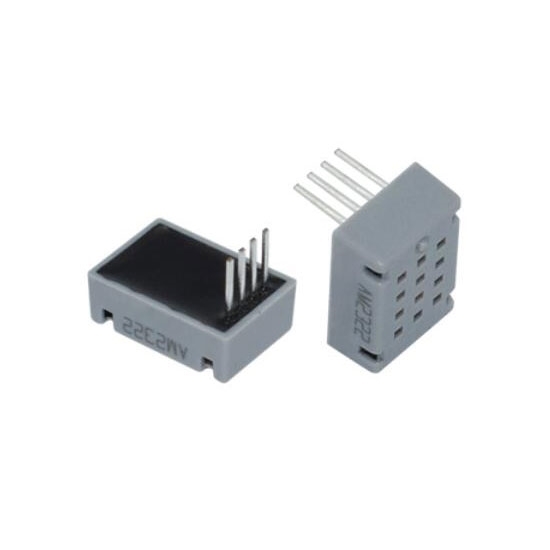

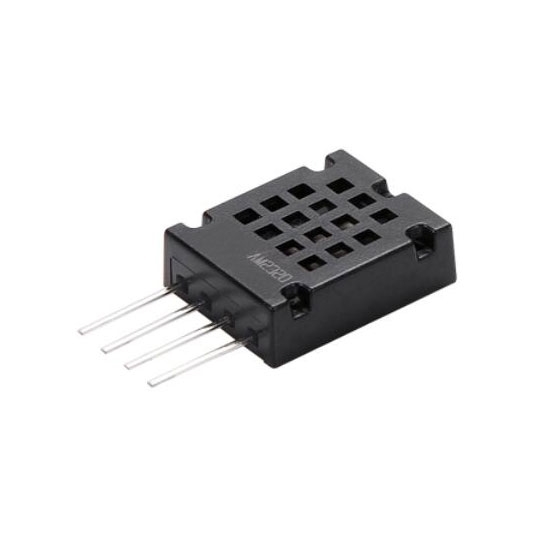

Item	AM2320	AM2322
Weight	0.5g

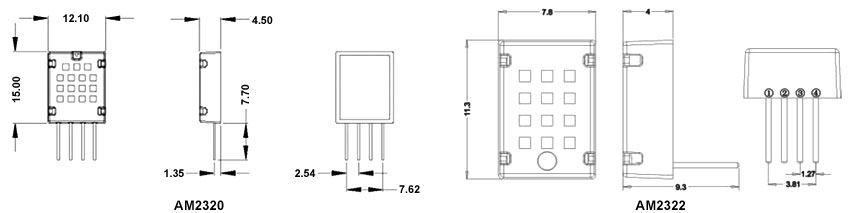

Dimension (LWH)	12.14.515.0mm	7.84.011.3mm
Communication mode	Optional one-wire and I2C
Supply voltage	DC 3.3-5.5V	DC 3.1-5.5V
Measuring range of relative humidity	0~99.9%RH
Measuring range of temperature	-40~+80℃
Accuracy of humidity	±3%RH	±2%RH
Accuracy of temperature	±0.5℃	±0.3℃
Resolution	0.1℃/0.1%RH
Long-term stability	＜0.5%RH/year, ＜0.1℃/year
Power consumption	＜350μA	＜200μA
Sampling period	2s
Response time	＜5s
Housing material	PC
Working environment	Temperature: -40~80℃, humidity: 0~99.9% no condensation
Storage environment	Temperature: 0~80℃, humidity: ＜95%RH
Wiring	1 red: VDD, 2 yellow: SDA (serial data), 3 black: GND, 4 white: SCL (serial clock, or connect to ground in one-wire mode)
