Factory price tilt sensor with absolute accuracy 0.1°, power on time 0.1s, quickly response time 0.2s. It is widely used for application like underground drilling rig attitude navigation, geological equipment tilt detection, railway locomotive monitoring, oil drilling equipment.

Specification

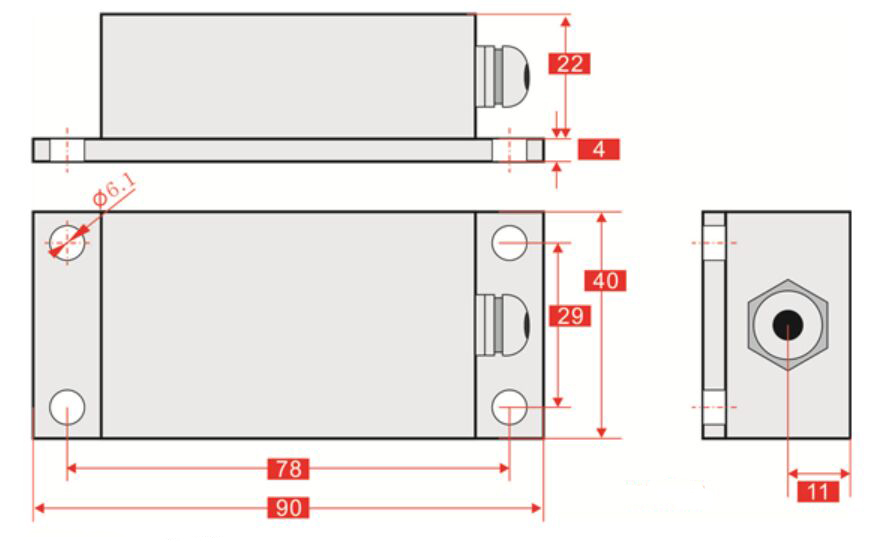

Dimension (unit=mm)

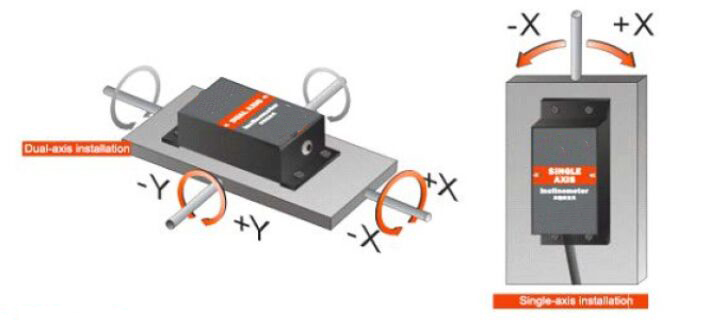

Tilt Sensor Installation Direction Diagram

The installation must guarantee the inclinometer sensor bottom is parallel to measured face，and reduce the influence of dynamic and acceleration to the tilt sensor. This inclinometer sensor can be installed horizontally or mounted vertically, for installation please refer to the following scheme.

Tips: Working Principle of Tilt Sensor.

The measurement range is ±15°. When the inclination value is greater than the preset inclination threshold, a switch signal (output voltage=supply voltage) will be output to drive the solenoid valve. Normally, it does not alarm for forward and reverse. The alarm number is output when the alarm threshold is exceeded; the alarm signal is output in the reverse direction, and the alarm is stopped when the alarm threshold is exceeded; the alarm angle can be set by the inclination switch, when the safe inclination value is exceeded, the switch signal will be output to shut down the system, and it can also be driven The alarm is easy to install, has strong resistance to external electromagnetic interference, and can withstand large shocks and vibrations.
