Home > Sensors > Torque Sensor

Send Inquiry

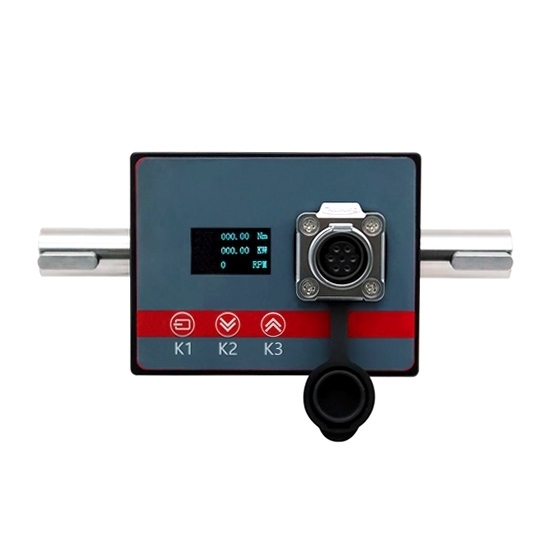

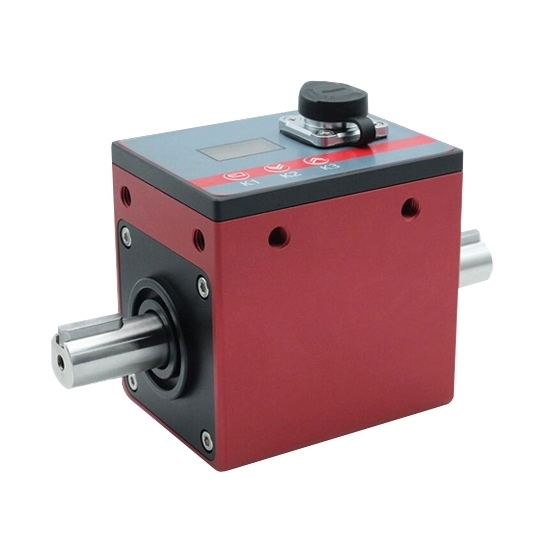

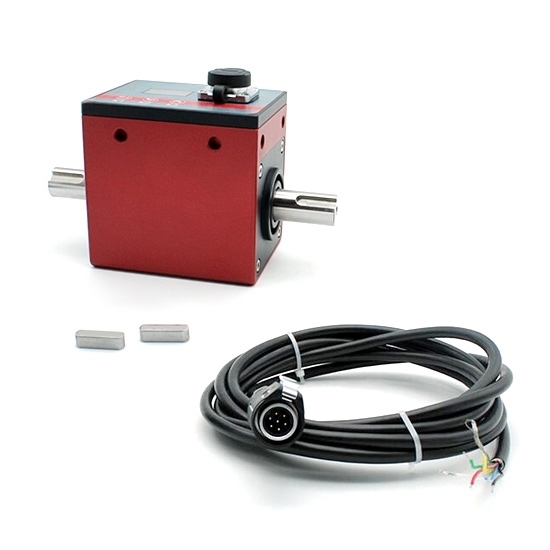

Digital Rotary Torque Sensor, 0.1/5/300/1000 Nm to 10000 Nm

$939.15

Digital rotary torque sensor with LCD display has the capacity range from 0.1 Nm/0.3 Nm/1 Nm/5 Nm/10 Nm/300 Nm/1000 Nm to 100

SKU: CHN-TQS-D03

Free Shipping Worldwide

Delivery date: 6-12 days

Overview
Documents

Rotary torque sensors have capacity range from 0.1 Nm, 0.3 Nm, 0.5 Nm, 1 Nm, 2 Nm, 5 Nm, 10 Nm, 20 Nm, 100 Nm, 300 Nm, 1000 Nm, 5000 Nm to ±10000 Nm. Torque sensor capacity can be customized according to customer requirements. ATO torque sensor can directly output standard signal (±5V/0-10V/4-20mA/RS485) to PLC, DCS and other automation control systems.

Specification:

Model	CHN-TQS-DYN-200
Capacity range *	0.1Nm~5 Nm	10Nm~100 Nm	200Nm~300 Nm	500Nm~800 Nm	1000Nm~5000 Nm	10000 Nm
Net weight	1.3kg	1.4kg	2kg	3.5kg	8kg	16kg
Shipping weight	2.5kg	2.5kg	3kg	4.5kg	10kg	18kg
Display	LCD display (show torque/speed/power value)
Non-linearity	0.1%FS (Accuracy 0.001 * Capacity=Lowest Nm)
Hysteresis	0.03%FS
Repeatability	0.03%FS
Temperature drift on zero	＜0.01%FS/℃
Temperature effect on output	＜0.01%FS/℃
Power supply	DC 24V
Consumption current	＜150mA
Load resistance	≥2kΩ
Output torque *	±5V, 0-10V, 4-20mA, RS485, RS485 & ±5V, RS485 & 0-10V, RS485 & 4-20mA
Software Option*	Including software and USB to RS485 cable, you can install software on your computer (Win 8/ Win 10 system) to monitor torque data and graphs.
Output speed	60 pulse per revolution (OC output is standard configuration, and 5V TTL output is optional)
Response performance	1kHz
Signal delay	0.6ms
Ultimate overload	200%FS
Rated speed	10000rpm
Maximum speed	15000rpm
Maximum rotating angle	2.60*10rad (0.149°)
Inertia moment	0.38kg·cm
Natural vibration frequency	19.4kHz
Torsion constant	3.85*10Nm/rad
Elastic element material	17-4 stainless steel
Operating temperature	-10℃~+70℃ (14~158℉)
Humidity	0~85%RH
Electrical connection	7 pin waterproof circular connector
Cable length	3m (Φ5mm)

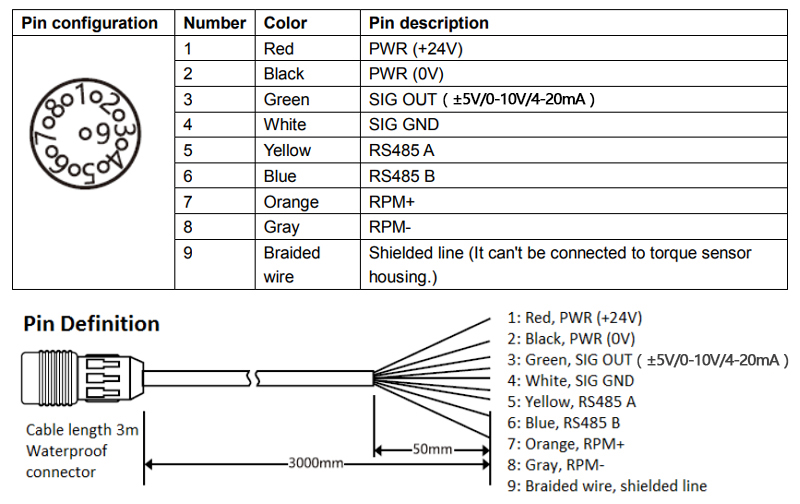

Connection:

Dimension (unit: mm):

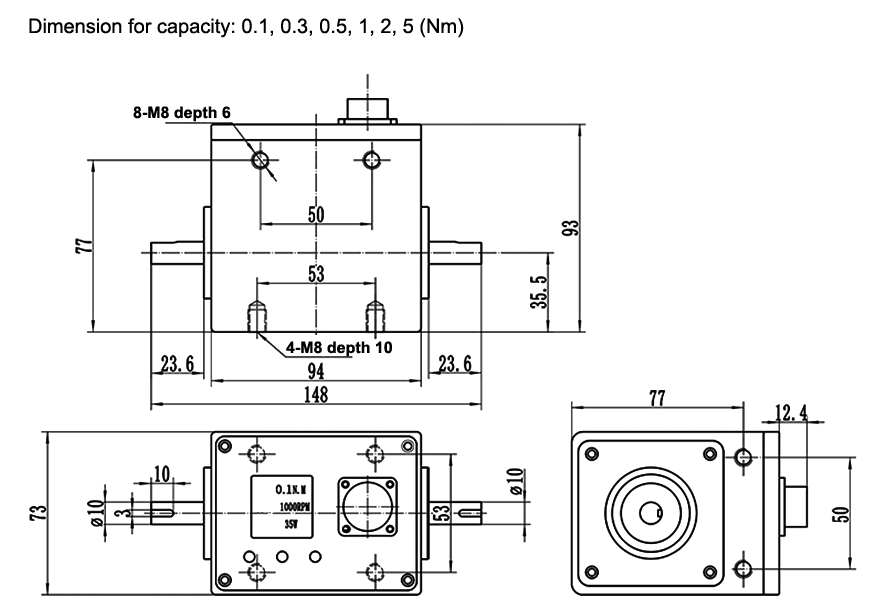

1. Dimension for capacity 0.1~5 Nm (Basic Thread: 53*53, 4-M8 depth 10)

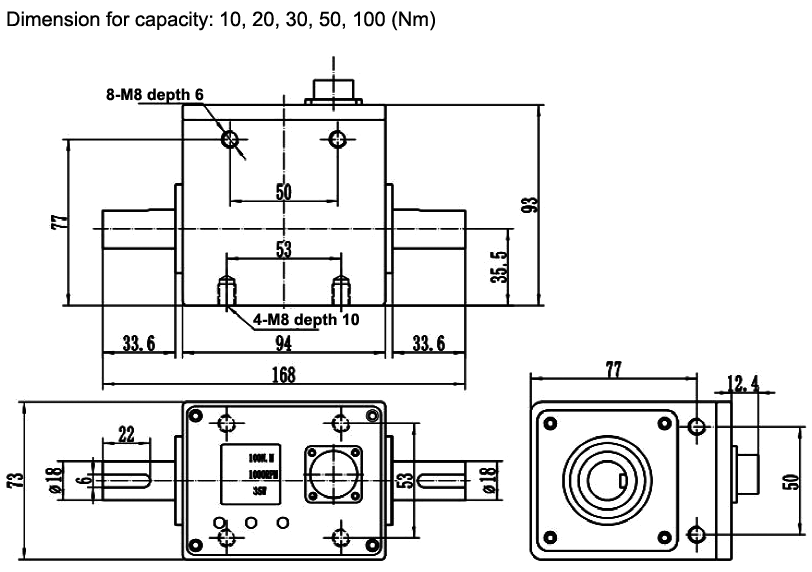

2. Dimension for capacity 10~100 Nm (Basic Thread: 53*53, 4-M8 depth 10)

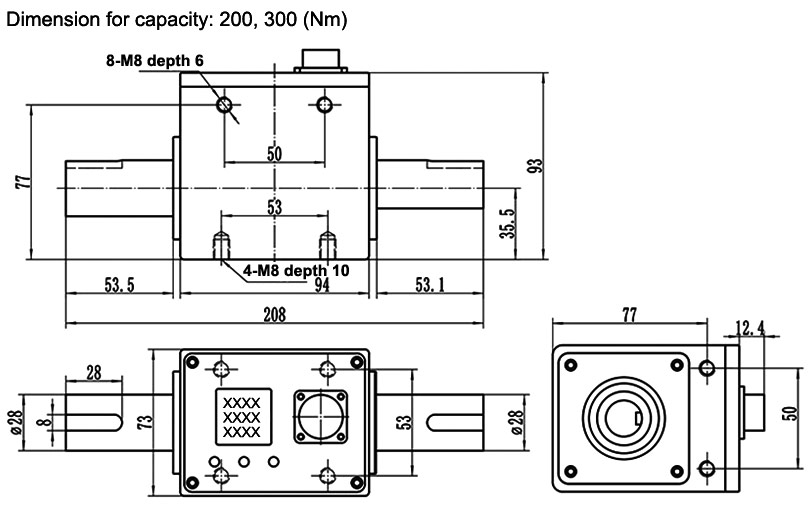

3. Dimension for capacity 200~300 Nm (Basic Thread: 53*53, 4-M8 depth 10)

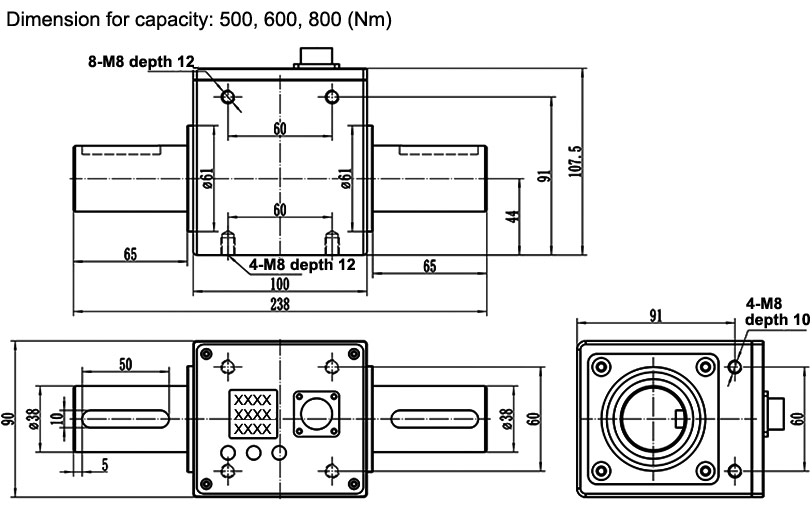

4. Dimension for capacity 500~800 Nm (Basic Thread: 75*60, 4-M8 depth 12)

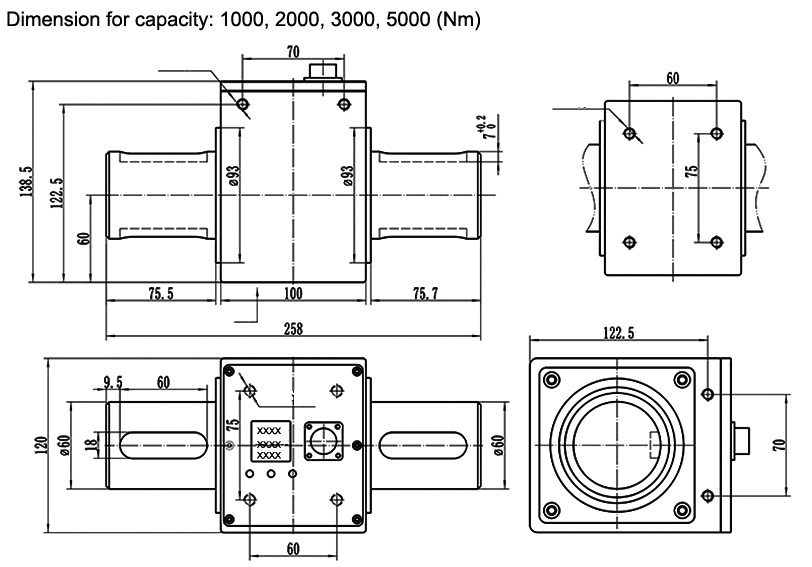

5. Dimension for capacity 1000~5000 Nm (Basic Thread: 75*60, 4-M8 depth 10)

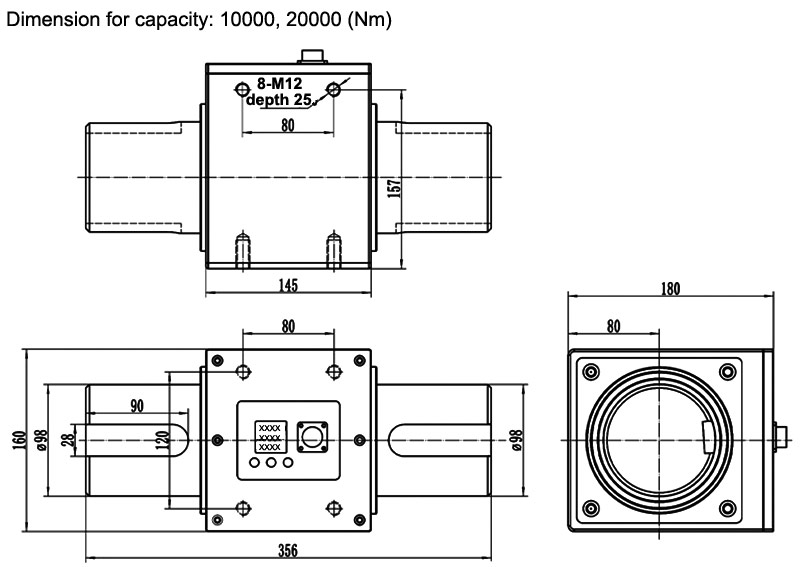

6. Dimension for capacity 10000~20000 Nm (Basic Thread: 120*80, 4-M12 depth 25)
