Wireless Pressure Sensor for Air/Water/Oil


$499.99
Economical price wireless pressure sensor adopts LoRaWan or NB-loT communication mode to realize the wireless transmission of
SKU: CHN-PRES-P1102
Free Shipping Worldwide
Delivery date: 6-12 days

ATO wireless pressure sensor is equipped with an ultra-low-power microprocessor and a high-precision sensor signal conditioning circuit. The measurement data can be obtained by logging in to the relevant website through the Internet PC or mobile terminal, and the collected data can be counted and analyzed to form reports and reports. The data curve is intuitive, accurate and efficient.

Applications

  • Gas fire extinguishers, water-based fire extinguishers, dry powder fire extinguishers
  • High pressure gas cylinder
  • Industrial process detection and control
  • Pumping stations and water treatment systems
  • Automated inspection system
  • Unattended and dangerous areas

Specification

ModelCHN-BRW100-1102
Weight0.35kg
Measuring range (Optional)1~40MPa
Measure mediumAir, water, oil (non-explosion proof area)
Power supply3.6VDC battery
Thread of pressure connection (Optional)M20*1.5, G1/4
Communication mode (Optional)NB-loTLoRaWan
Communication protocolCOAPLoRaWan
Band limits800MHz/ 900MHz/ 1800MHz470MHz/ 868MHz
Quiescent current≤10uA≤5uA
Battery life3 years (1 time/day)5 years (1 time/day)
Battery capacity1500mAh
Accuracy±1%FS. ±1°
Impact (11ms)100g
Breakdown pressure500%FS
Overload pressure300%FS
Sampling frequency10~3600s
Operating temperature-20~+80℃
Compensation temperature-10~+70℃
MaterialEngineering plastic + 304 stainless steel
Protection classIP67

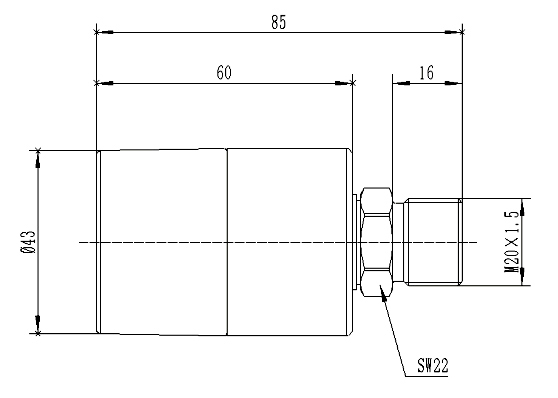

Dimensions (Unit: mm)

Dimensions of wireless pressure sensor

Tips: Wireless pressure sensor working principle

Wireless pressure sensors are the most commonly used sensors in industrial practice, which are used in hydrological monitoring and control systems, petrochemical, environmental protection, water pipe network monitoring, reservoir level monitoring, power station operation inspection, locomotive braking systems, industrial process detection and control, laboratory liquid level calibration, etc.

The wireless pressure sensor adopts the piezoresistive strain principle. Its core component, the resistance strain gauge, is a sensitive device that converts the strain change on the measured object into an electrical signal. It is one of the main components of the sensor. The most widely used resistance strain gauges are metal resistance strain gauges and semiconductor strain gauges. There are two types of metal resistance strain gauges: filamentary strain gauges and metal foil strain gauges. Usually, the strain gauge is tightly bonded to the matrix that generates mechanical strain through a special adhesive. When the stress of the matrix changes, the resistance strain gauge is also deformed together, so that the resistance value of the strain gauge changes, so that the voltage applied to the resistor changes. The resistance change of this kind of strain gauge is usually small when it is stressed. Generally, this kind of strain gauge constitutes a strain bridge, so that the change of impedance is converted into a digital signal.
