High Temperature Pressure Transducer, 100/300/3000/5000 PSI

High temperature pressure transducer for air/water/oil pressure measurement has optional output signal, such as 4-20mA/0-20mA/0-5V/1-5V/0-10V/RS485, pressure measuring range (0~100/300/3000/5000 psi) can be customized.

Application: High temperature pressure transducer is widely used in process control, chemical, petroleum and metallurgical industry and other fields.

Specification:

Note: * denotes optional parameters, you can select every parameter in drop-down lists to finish your order.

High temperature pressure transducer dimension drawing (unit: mm):

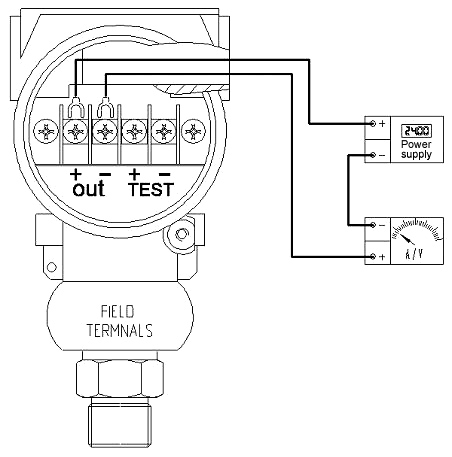

Pressure transducer wiring diagram:

Tips: Outage and commissioning steps of on-site installed pressure transducer
The installation method of on-site installed pressure transducer and spring manometer are nearly the same, namely there's only one sampling valve. Sometimes, there's also a drain valve.
Note: On-site installed pressure transducer mentioned here mainly refers to the screw mounted transducer, such as the monocrystalline silicon pressure transducer.

1. Outage Method of On-site Installed Pressure Transducer
   When stopping, close the sampling valve of on-site installed pressure transducer and open the drain valve slowly to remove the measured pressure. If there's no drain pressure, the pressure can only be relieved by slowly loosening the joint threads of pressure transmitter. When operating, be careful of medium pressure injury.
2. Commissioning Method of On-site Installed Pressure Transducer
   When commissioning, open the sampling valve of on-site installed pressure transducer.
