Diaphragm Pressure Sensor for Water/Viscous Liquid

Pressure sensor for water/viscous liquid pressure measurement has optional output signal, such as 4-20mA/0-20mA/0-5V/1-5V/0-10V/RS485.

Application: Pressure sensor is widely used in food, medicine, hygiene and brewing industries.

Specification:

Note: * denotes optional parameters, you can select every parameter in drop-down lists to finish your order.

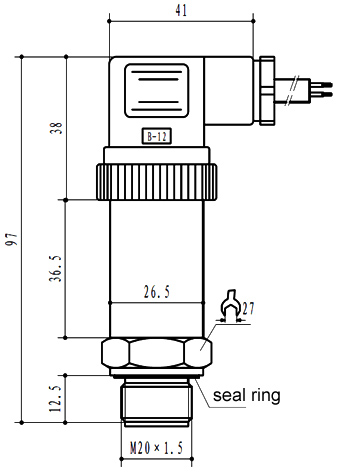

Pressure sensor dimension drawing (unit: mm):

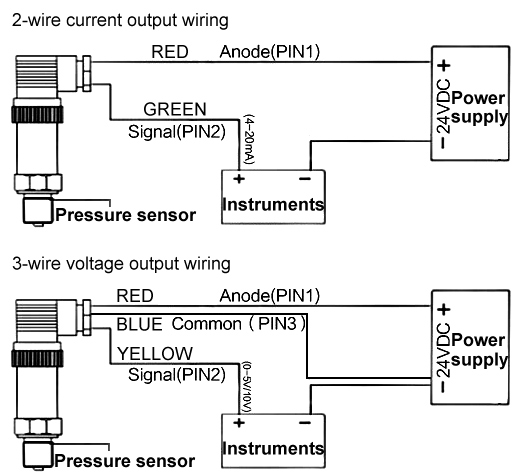

Pressure sensor wiring diagram:

Tips: Why the pressure sensor output signal is smaller than 4mA?
The most common reasons for maximum display is an improper selection of the pressure sensor's range or wrong setting of range, or zero shift is not made in liquid level measurement, thus making the output current of the pressure sensor to exceed 20mA. When the circuit of pressure sensor is suspected to be faulty, the circuit board can be replaced to judge the faults. Damage of the pressure sensor's diaphragm will also lead to over-range failure. For example, the output current of the diaphragm pressure sensor used for measuring vapor is greater than 20mA, and it's found after disassembling that some diaphragms have a lot of bumps, some diaphragms deform after freezing or overheated. The failure causes may be abnormal steam tracing which leads to condensate freezing, or long-term contact between the steam and diaphragm box caused by leakage. It also indirectly illustrates the importance of on-site inspection.
