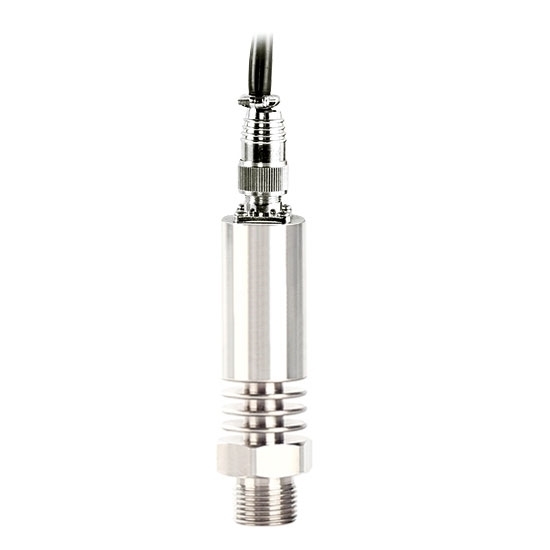

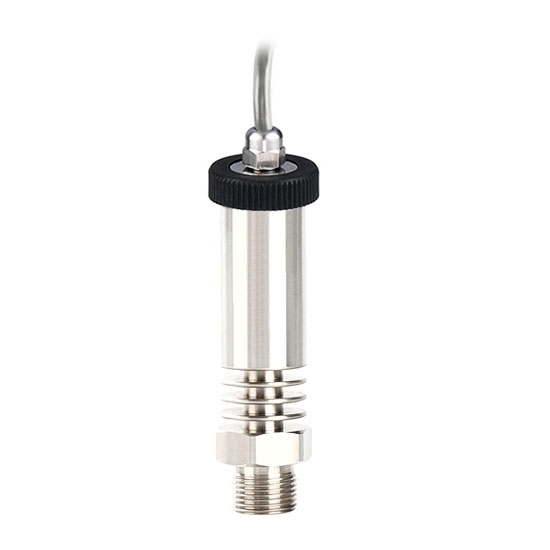

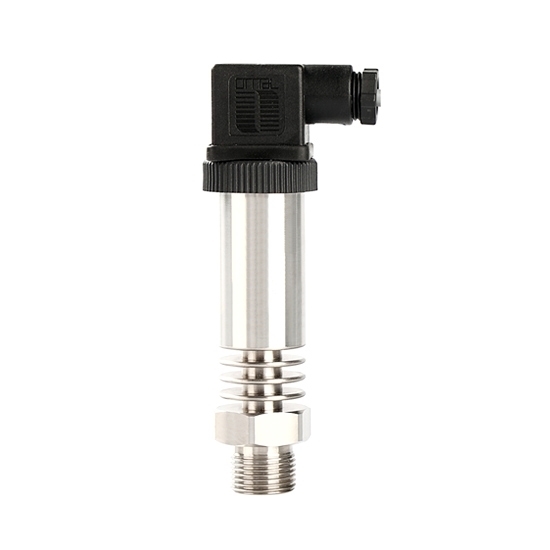

Pressure sensor for steam/fuel oil pressure measurement has optional output signal, such as 4-20mA/0-20mA/0-5V/1-5V/0-10V/RS485.

Application: Pressure sensor is widely used in process control, aerospace, automotive, medical equipment, HVAC and other fields.

Specification:

Note: * denotes optional parameters, you can select every parameter in drop-down lists to finish your order.

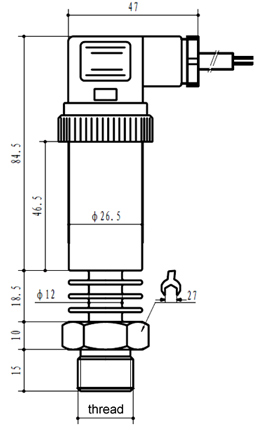

Pressure sensor dimension drawing (unit: mm):

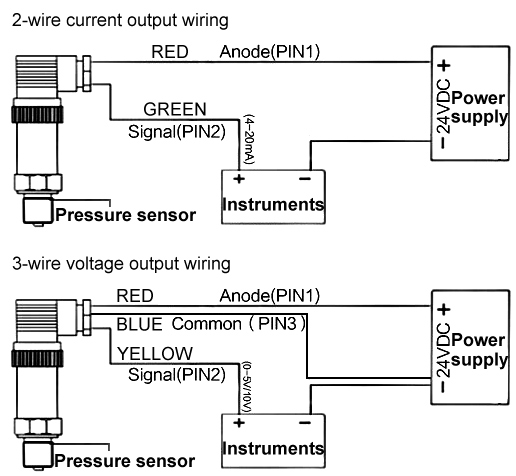

Pressure sensor wiring diagram:

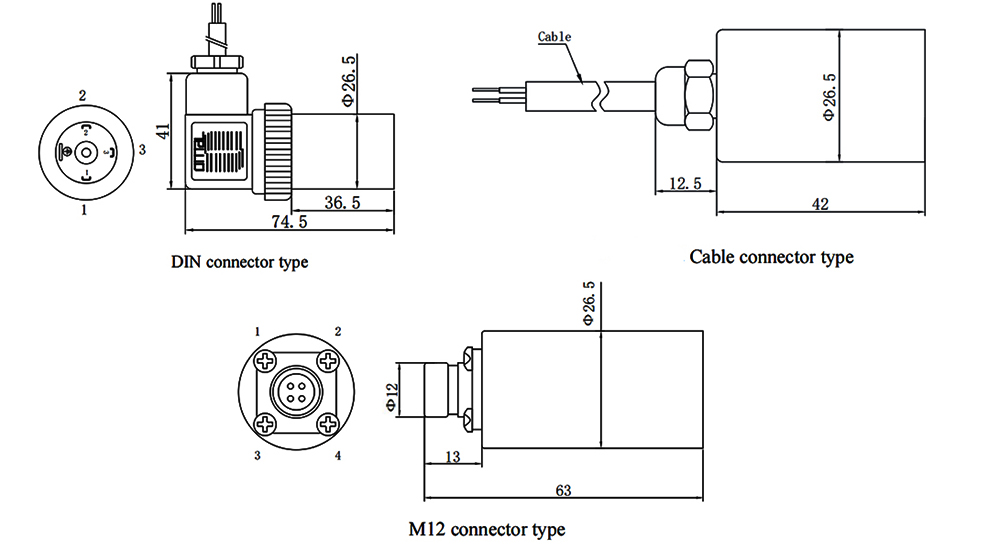

Pressure sensor installation diagram (unit: mm):

Tips: Accuracy of pressure sensor
Accuracy is an important performance index of pressure sensor, which is an important link on accuracy measurement of whole measuring system. The higher the accuracy of pressure sensor, the more expensive it is. Therefore, as long as the accuracy of pressure sensor can be satisfied the accuracy requirements of the whole measurement system. That will be fine. This allows choosing cheaper and simpler sensors among many ones that serve for the same purpose.
For some special use occasions, it is unable to choose a suitable sensor in the market. So it is necessary to design and manufacture the sensor by oneself. You can contact us ATO Automation and send us your requirements. We will try our best to produce sensors that can meet your requirements.
