Home > Sensors > Photoelectric Sensor

Send Inquiry

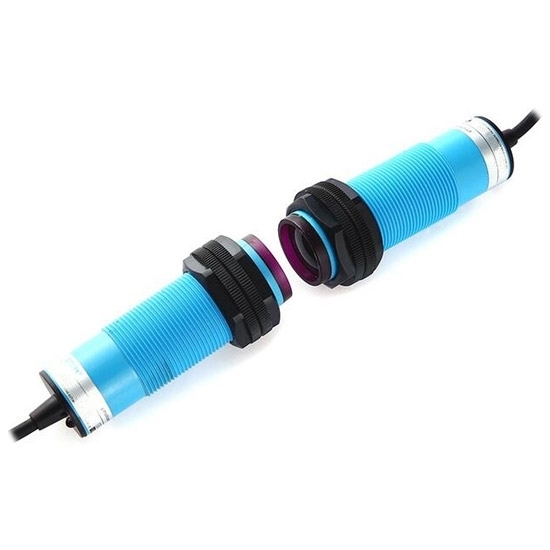

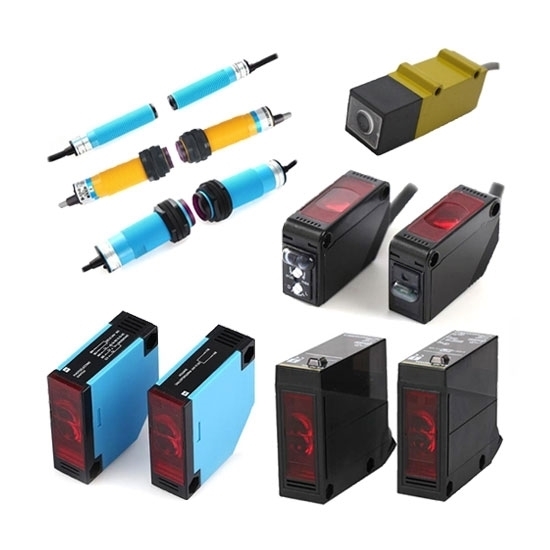

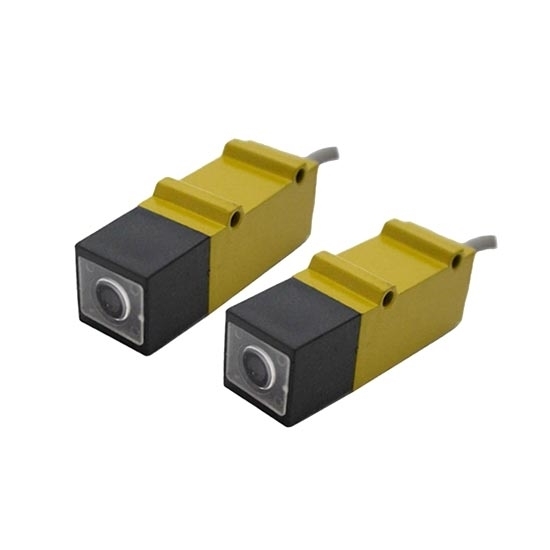

Through Beam Photoelectric Sensor

$22.99

Through beam photoelectric sensor consists of a light projector and a light receiver, both of which are separated in structur

SKU: CHN-PHOS-TB

Free Shipping Worldwide

Delivery date: 6-12 days

Overview
Documents

Through beam photoelectric sensor with reverse power protection, short circuit protection, current overload protection, can be directly connected with PLC.

Applications: Photoelectric sensors have been used as position detection, liquid level control, product counting, width discrimination, speed detection, fixed length cutting, holes recognition, signal delay, automatic door sensing, color scale detection, punching and cutting Machine and security and many other areas. In addition, using the stealthiness of infrared, photoelectric sensors also can be used as a burglar alarm in banks, warehouses, shops, and offices.

Specification:
1. DC/AC output:

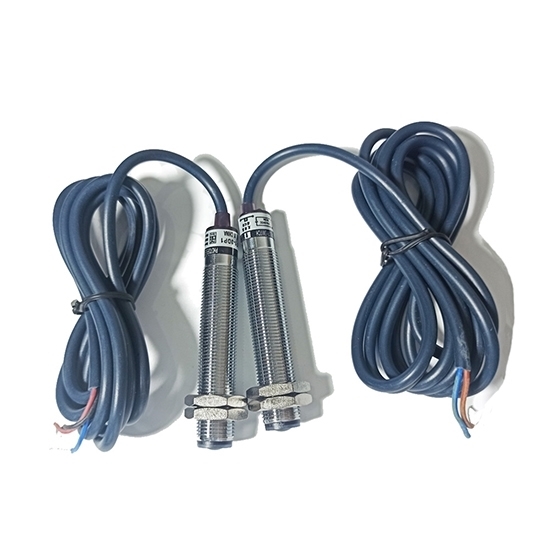

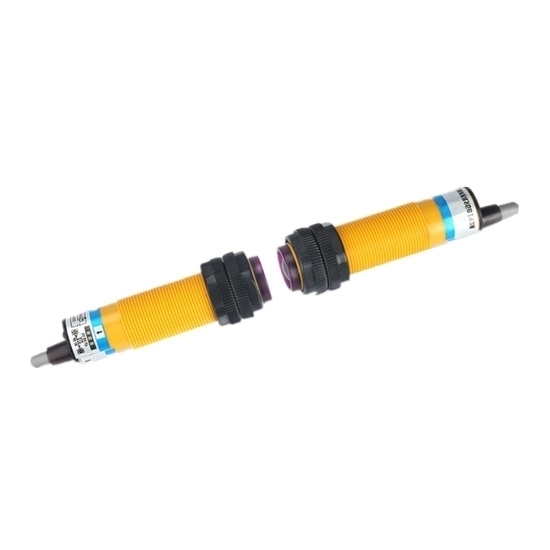

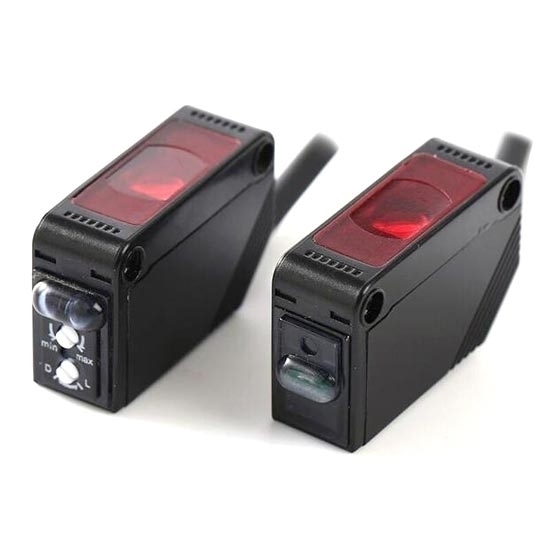

Type		Round type			Square amplifier built-in type
Dimension		M12*1	M18*1	M30*1.5	15.52141mm	10.82031mm
DC type	NPN	NO	NO	NO	NO	NO
		NC	NC	NC	NC	-
		-	NO+NC	NO+NC	-	-
	PNP	NO	NO	NO	NO	NO
		NC	NC	NC	NC	-
		-	NO+NC	NO+NC	-	-
AC type	Two-wire	-	NO	NO	-	-
		-	NC	NC	-	-
Detection range		3m±10%	5m±10%	10m±10%	2m±10%	15m±10%
Detection target		Opaque object	Opaque object	Opaque object	Opaque object	Opaque object
Detection range regulation		Fixed	Fixed	Fixed	Fixed	Fixed
Response time		1ms	1ms	1ms	1ms	1ms
Connection delay		1.5ms
Light source		Infrared light 660nm
Power supply		DC type: DC 12-24V (6-36V), impulse (p-p) 10% below; AC type: AC 110-220V (90-250V) 50/60Hz
Withstand voltage		AC1000V 50/60Hz 1min between charging part and housing
Voltage influence		Inside ±15% rated supply voltage range, at rated supply voltage value, inside ±10% detection distance
Consumption current		N/P type: ≤20mA, A type: ≤1.7mA
Control output		N/P type: ≤300mA, A type: ≤400mA, J type: ≤2A (contact service life: 0.1 million times)
Loop protection		N/P/D type: reversal connection protection, surge absorption, load short-circuit protection, A type: surge absorption
Ambient temperature & humidity		Operation temperature/storage temperature: -30~65℃ (no freeze, no dew); Operation humidity/storage humidity: 35~95%RH
Temperature influence		Temperature range -30~65℃, at +23℃, ±15% detection distance; Temperature range -25~60℃, at +23℃, ±10% detection distance
Insulation impedance		≥50MΩ (DC500 megameter) between charging part and housing
Material		Housing: Nickel plated brass (ABS), Detection surface (lens): PMMA
Protection class		IP67
Cable length		1.2m

2. Relay output:

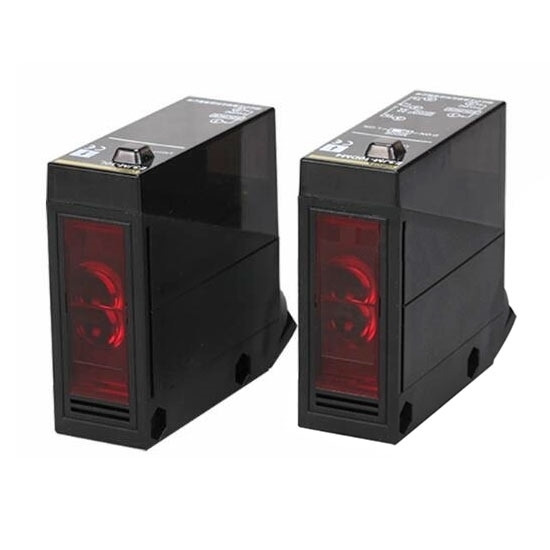

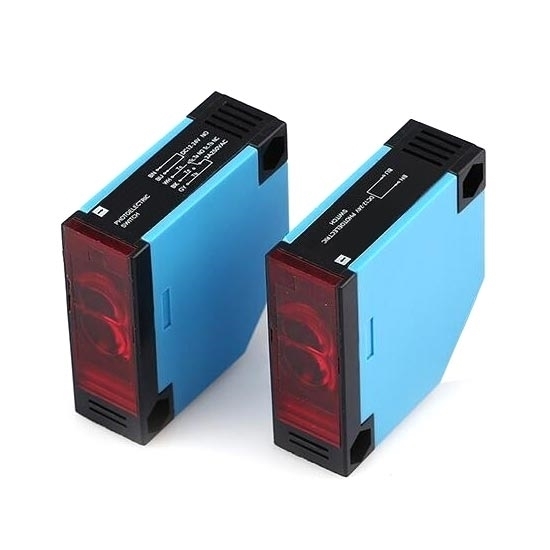

Type	Square relay built-in type
Dimension	185050mm	256575mm
Relay output	DC illuminated	DC illuminated
	AC illuminated	AC illuminated
	DC non-illuminated	DC non-illuminated
	AC non-illuminated	AC non-illuminated
Detection range	5m±10%	10m±10%
Detection target	Opaque object	Opaque object
Detection range regulation	Fixed	Fixed
Response time	30ms	30ms
Response frequency	DC: 0.5kHz, AC: 25kHz
Delay distance	≤10% detection distance
Connection delay	1.5ms
Light source	Infrared light 660nm
Supply voltage	DC type: DC 12-24V (6-36V), Impulse (p-p) 10% below; AC type: AC 110-220V (90-250V) 50/60Hz; DC/AC type: DC 12-240V/AC 24-240V, 50/60Hz
Withstand voltage	AC1000V 50/60Hz 1min between charging part and housing
Voltage influence	Inside ±15% rated supply voltage range, at rated supply voltage value, inside ±10% detection distance
Power current	≤3VA
Control output	≤2A (contact service life: 0.1 million times)
Allowed impulsion and vibration	B≤30g, T≤11ms, f≤55Hz, a≤1mm
Ambient temperature & humidity	Operation temperature/storage temperature: -30~65℃ (no freeze, no drew); Operation humidity/storage humidity: 35~95%RH
Temperature influence	Temperature range -30~65℃, at +23℃, ±15% detection distance; Temperature range -25~60℃, at +23℃, ±10% detection distance
Insulation impedance	≥50MΩ (DC500 megameter) between charging part and housing
Material	Housing: Aluminum die casting (ABS), Detection surface (lens): PMMA
Protection class	IP65
Cable length	1.2m

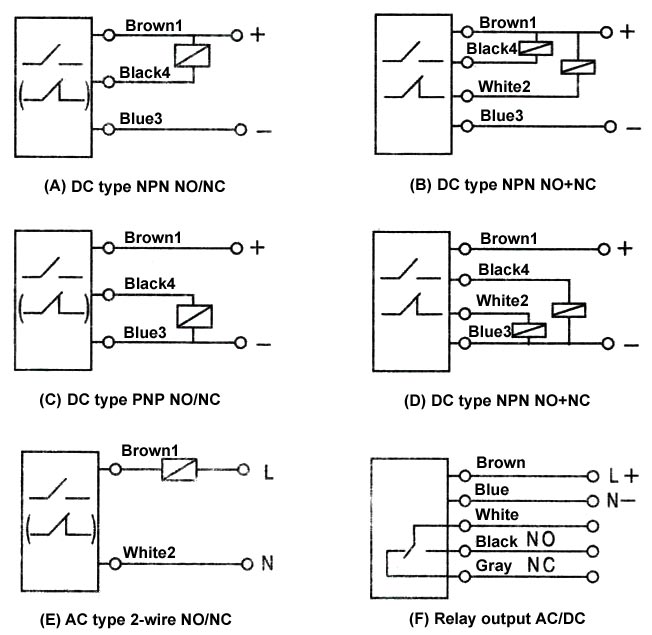

Wiring diagram:

Tips: How does through beam photoelectric sensors work effectively in actual application?

Avoid strong light sources
In high ambient illumination, through beam photoelectric sensors can work steadily. But should avoid the optical axis of the photoelectric sensor is facing the sun, incandescent and other strong light source. If the angle between the optical axis of the light receiver and the strong light source can't be changed, a light-shielding plate can be installed on the top and the periphery of the photoelectric sensor, or a shading tube can be set outside.
Prevent mutual interference
When several sets of infrared photoelectric sensors are installed in close proximity to each other, the neighboring groups need to be prevented from interfering with each other. The most effective way is to set light projectors and light receivers cross, more than 2 groups need to increase the group distance. Or use different frequency photoelectric sensors.
Specular reflection affect
When the detection object is shiny or has a smooth metal surface, the general reflectivity is high. There is an approximate specular reflection affect. At this time, the light projector and detection object is installed to form an angle of 10 ~ 20 °. The optical axis of the light projector is not perpendicular to the object, thus preventing malfunction.
