Laser Sensor, Displacement/RPM Measurement, M12, 300mm/100m

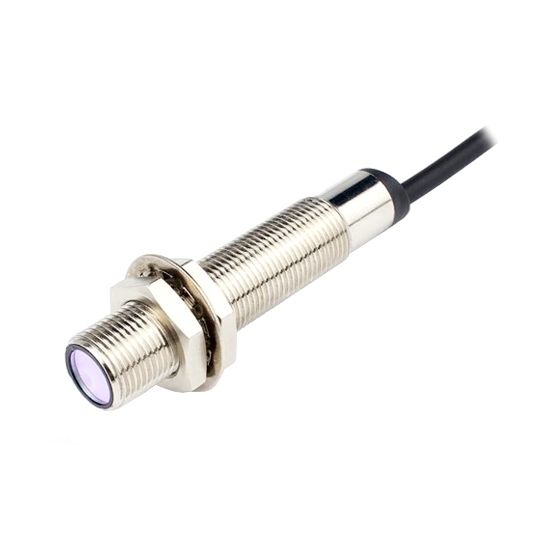

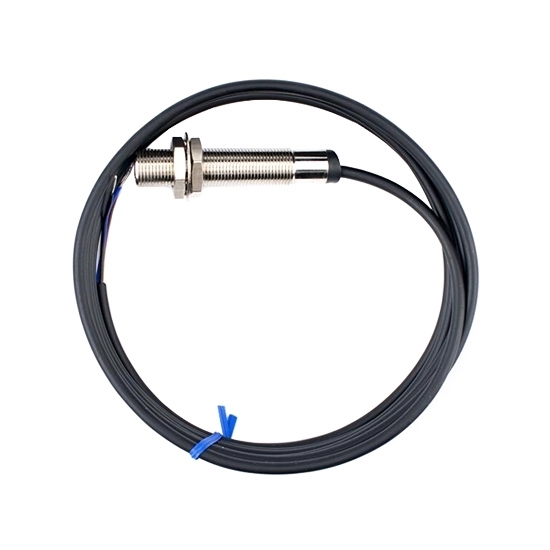

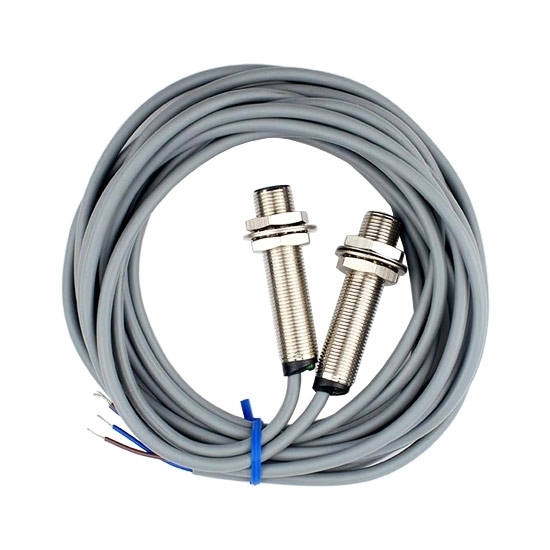

Laser sensor with M12*1mm metal detection head, 4mm spot size, diffuse reflection/through beam detection mode and NPN/PNP NO/NC output mode for selection.

Specifications

Note: The detection range of diffuse reflection laser sensor can be adjusted by the knob (Clockwise rotation for adding distance, anticlockwise rotation for reducing distance). The detection range of through beam laser sensor can be adjusted by the distance of projector and receiver.

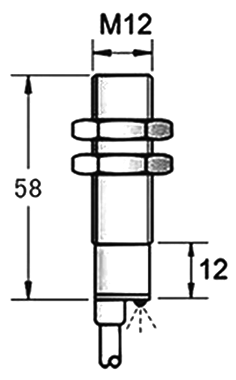

Dimension (diffuse reflection type, unit: mm):

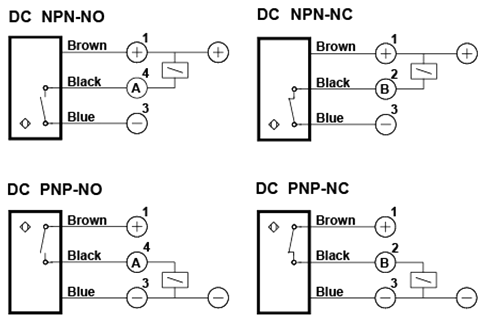

Wiring diagram:

Tips: Applications of laser displacement sensors

1. Presence determination: Position identification of tiny parts; monitoring of the presence or absence of parts on conveyor belts; detection of material overlap and coverage.
2. Thickness measurement of metal flakes and thin plates: Laser sensors measure the thickness of metal flakes (thin plates). Thickness change detection can help find wrinkles, small holes or overlaps to avoid machine failure.
3. Length measurement: Put the measured component on the conveyor belt at the specified position, the laser sensor detects the component and measures it at the same time with the triggered laser scanner, and finally the length of the component is obtained.
4. Measurement of cylinder barrel: Simultaneous measurement of angle, length, eccentricity of inner and outer diameters, conicity, concentricity and surface profile.
5. Inspection of uniformity: Put several laser sensors in a row in the inclination direction of the movement of the workpiece to be measured, and directly output the measurement value through one sensor. In addition, software can be used to calculate the measurement value and read out results based on signals or data.
6. Inspection of electronic components: Use two laser scanners to place the component under test between the two, and finally read the data through the sensor, so as to detect the accuracy and integrity of the size of the component.
7. Inspection of the filling level on the production line: The laser displacement sensor is integrated into the manufacturing of the filling product. When the filling product passes the sensor, it can be detected whether it is full. The laser sensor can accurately identify whether the filling of the filling product is acceptable and the quantity of the product with the extension of the laser beam reflecting surface.
