Laser Sensor, Distance/Height Measurement, M5, 200mm/50m

Close
Shopping Categories
Search

Laser Sensor, Distance/Height Measurement, M5, 200mm/50m


$113.76
Low cost M5 laser sensor adopts diffuse reflection or through beam detection mode, has 304 stainless steel detection head wit
SKU: CHN-LASES-M5
Free Shipping Worldwide
Delivery date: 6-12 days

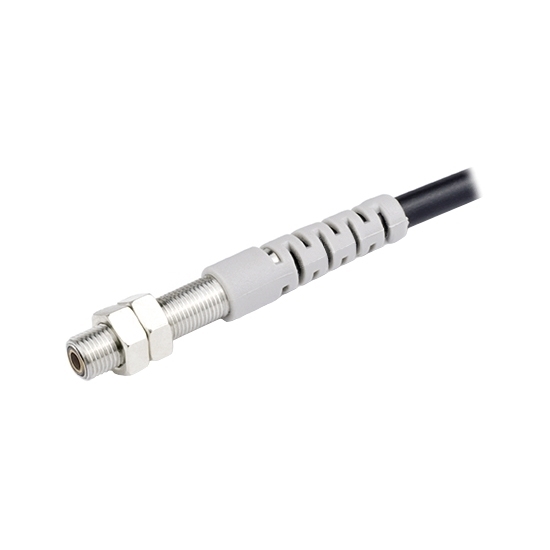

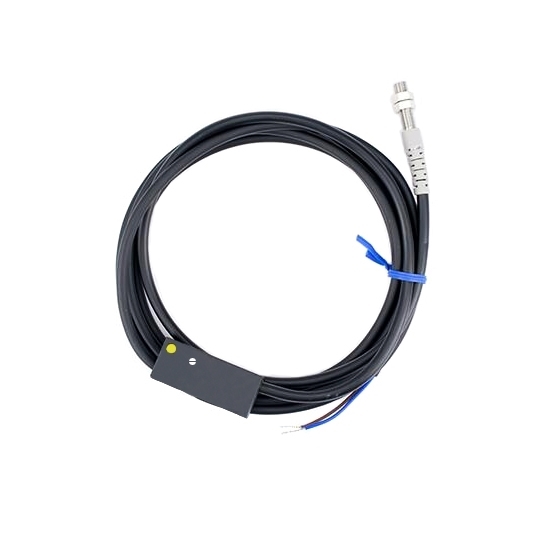

Laser sensor with M5*0.5mm metal detection head, 1mm spot size, diffuse reflection/through beam detection mode and NPN/PNP NO/NC output mode for selection.

Specification:

ModelCHN-LASES-M5
Shipping weight2kg
Thread sizeM5*0.5mm
Detection of spot size1mm

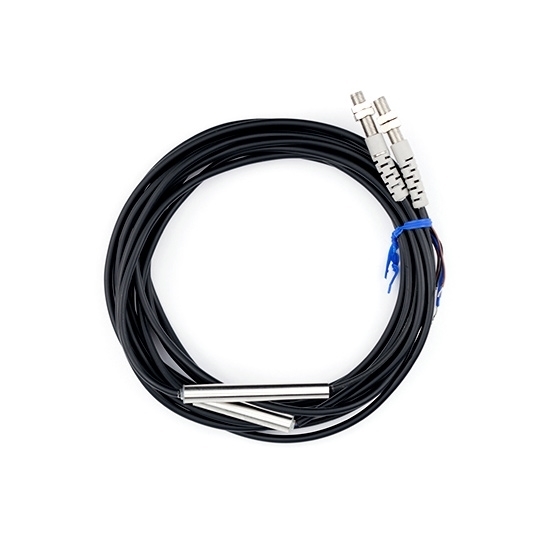

Detection mode *Diffuse reflection type, through beam type
Detection rangeDiffuse reflection type: Sn=200mm, through beam type: Sn=50m
Light sourceInfrared ray LED (880nm)
The laser beam is invisible. The laser spot is visible.
Output mode *NPN NO, NPN NC, PNP NO, PNP NC
Power supply10-30VDC
No-load current<9mA
Maximum load current150mA
Leakage current<0.01mA
Voltage drop<1V
Switching frequency120Hz
Response time0.1ms
Switching hysteresis<15% (sr)
Repeat accuracy<1.0% (sr)
Protection classIP67
Environment humidity35-95%
Operating temperature-5~+50℃ (23~122℉)
Temperature drift<10% (sr)
Short circuit protectionYes
Indicator lightYes
Housing material304 stainless steel (detector), plastic (connector protective sleeve)
Connection methodDirect lead wire
Cable length2m

Note: The detection range of diffuse reflection laser sensor can be adjusted by the knob on the box (Clockwise rotation for adding distance, anticlockwise rotation for reducing distance). The detection range of through beam laser sensor can be adjusted by the distance of projector and receiver.

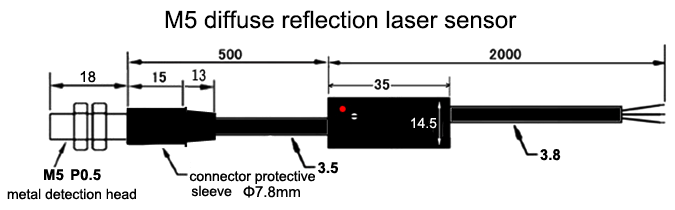

Dimension (diffuse reflection type, unit: mm):
Diffuse reflection laser sensor M5 dimensional drawing

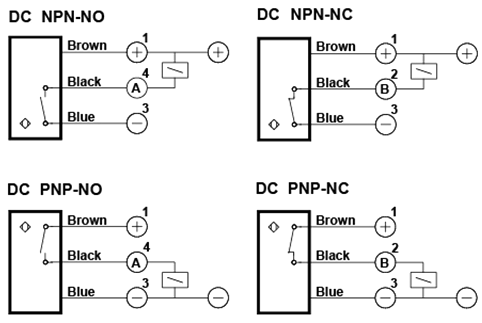

Wiring diagram:
Diffuse reflection/through beam M5 laser sensor  wiring diagram

Tips: Laser sensor for traffic flow monitoring
The laser sensor is generally fixed on the gantry of the high-speed or important intersection. The laser emission and reception are perpendicular to the ground, aiming at the middle of a lane. When there are vehicles passing through, the laser sensor can output the relative change value of the measured distance value in real time to delineate the outline of the vehicle under test. This measurement method generally uses a ranging range of less than 30 meters, and requires a relatively high measuring rate of laser ranging. It is generally required that the measurement rate can reach 100 Hz. This can achieve good results for monitoring in important road sections. The laser sensor can distinguish various types of vehicles, and the sampling rate for scanning the height of the vehicle body can reach 10 cm per point (at 40Km/h, the sampling rate is 11 cm per point). It can distinguish the height limit, length limit and vehicle type of traffic flow in real time, and can quickly output the results.
