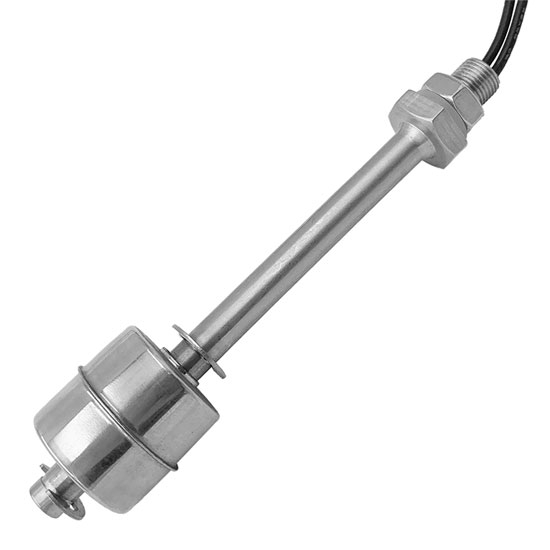

Float liquid level switch is a compact size and highly reliable, which is widely applied in water fountain, air condition, humidifier, bathroom equipment, sale machine, oil tank and chemical liquid level control.

Specification

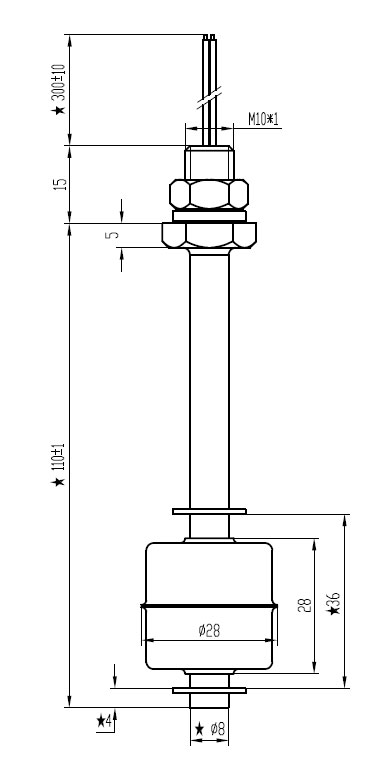

Dimensions (Units: mm)

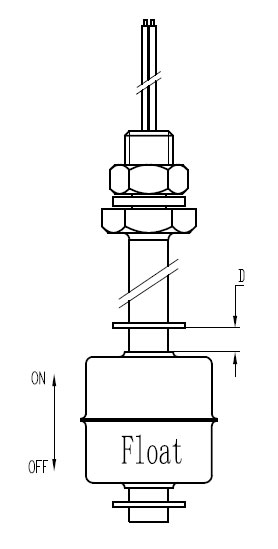

Movement Explanation

When the float down to the D position, in the position between D=3±1mm, the reed switches will be closed. Float ball reverses the opposite action.

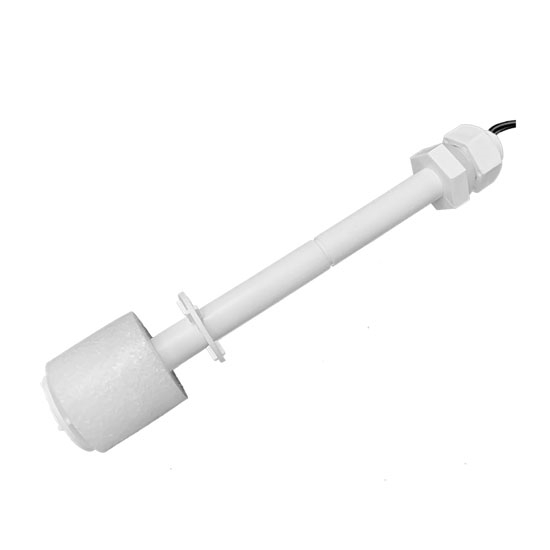

Tips: What is plastic float level sensor?

Plastic float level sensor is a kind of simple structure, easy to use liquid level switch, which does not need power supply and is no complex circuit. It is widely used in shipbuilding industry, generator equipment, petrochemical industry, food industry, water treatment equipment and so on.

Plastic float level switch is mainly composed of magnetic reed switch and floating ball, and there are magnetic materials in the floating ball. Set one or more of the magnetic reed switch in the airtight nonmagnetic metal or plastic tube, and then put the conduit through one or more of the floating balls. The floating ball will be up or down as liquid. In short, the float level switch produces open and close action through the ball closing to the beginning of the magnetic spring contact for liquid level control or indication.
