Cable Float Level Switch, SPDT, 110/ 220V

Full automatic cable float level switch can control water and drainage and prevent the water pump from dry burning, and it has good electrical properties and insulation.

Features

• PVC cable: It is made from non-toxic and odor free PVC material that is soft but anti-rupture, which has long life span.
• Resistant to high temperature and corrosion: Our cable float level switch can work at 0-65℃ temperature and adapt to certain harsh environments.
• With working principle diagram: The working principle diagram is on the heavy hammer for convenient debugging and installation.

Specification

Wiring Diagram

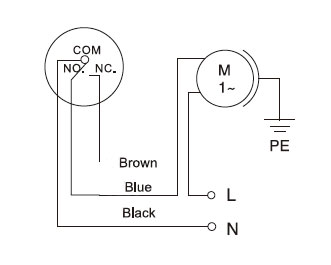

Auto-fill-water mode:

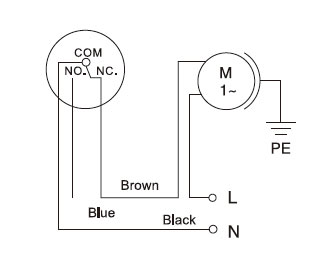

Auto-drainage and lack-water protection mode:

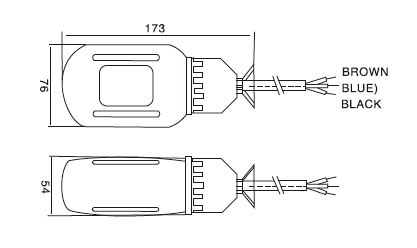

Dimensions (Units: mm)

Tips: Uses of float liquid level switch

Float liquid level switch is specially used for liquid level detection, remote transmission and liquid level alarm of all kinds of small and medium-sized atmospheric pressure and pressure liquid storage tanks. It can be applied to all kinds of sanitary, toxic, corrosive media and explosive gas. Different kinds of float sensors have different mounting ways.
