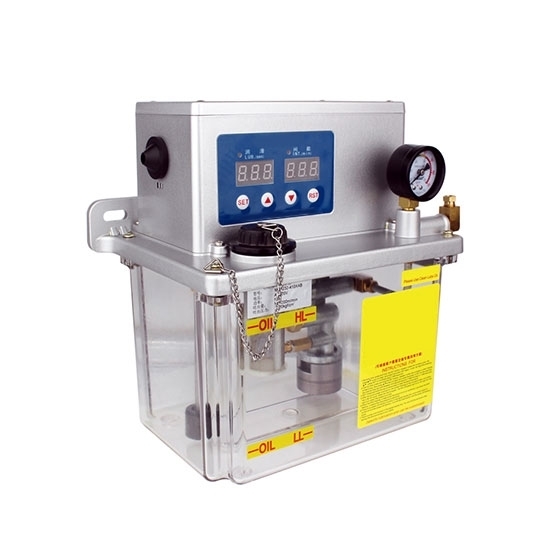

Low price automatic oil lubrication pump is an electric oil pump equipped with shade-pole motor, which can be used in the centralized lubrication system of light industry, forging automation and other mechanical equipment.

Specification

Model	CHN-OLP-MR
Operating Mode	Semi-automatic (without dual-timer module) Full-automatic (with dual-timer with digital display and press buttons)
Distributor	Resistance Distributor (without pressure take-off mechanism) Volumetric Distributor (Built-in pressure take-off mechanism)
Oil Tank Capacity	2L/ 3L/ 4L
Motor	Shade-pole Motor
Number of Motor Poles	2P
Motor Voltage	1 Phase 110V AC, 1 Phase 220V AC, 3 Phase 220V AC, 3 Phase 380V AC, 24V DC
Motor Power	18W
Frequency	50/60Hz
Rated Rotary Speed	2400 rpm
Current	0.12A
Level Pressure Alarm Output	24V DC/ 220V AC
Rated Pressure	18 kgf/cm2
Max Pressure	35 kgf/cm2
Discharge Capacity	150~200 ml/min
Oil Viscosity	30~1000 kgf/cm2
Weight	3/ 4/ 4.5 kg
User Manual

Dimensions (Units:mm)

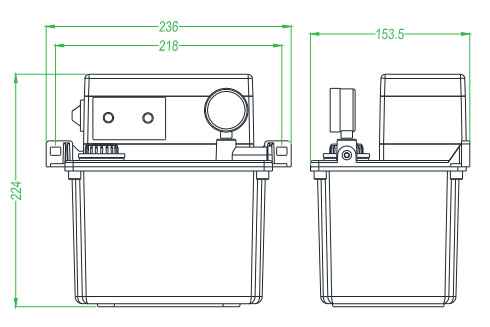

2L Oil Lubrication Pump

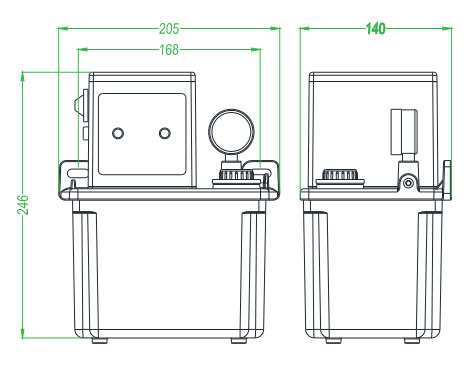

3L Oil Lubrication Pump

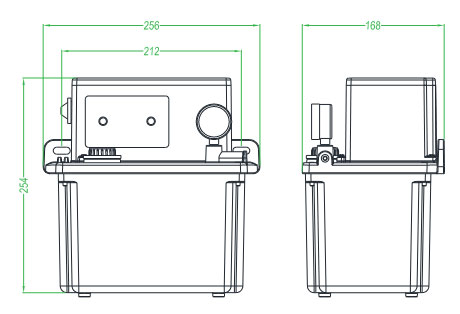

4L Oil Lubrication Pump

Tips: What are functions of automatic oil lubrication pump?

Oil lubrication pump is an electric device that belongs to lubrication system. Automatic lube pump is commonly used for various industrial equipment, such as CNC machinery, milling machine, grinder, cutting machine, injection molding machine, etc. What are the functions of it?

• It is semi-automatic or full-automatic to control and adjust oil supply, which has a wide range of standby and working time adjustment and is suitable for various industrial equipment.
• It is designed with oil shortage alarm system, which can remind the operator to fill oil in time.
• It is equipped with one-way control valve and resistance distributor or volumetric distributor, so that it can fully ensure the supply of lubricating oil at all points.
• The two-stage filter can effectively prevent impurities from oil inlet to ensure oil cleaning and prevent mechanical wear.
