Diaphragm solenoid metering pump flow 5.04 L/h, pressure 6.2 bar, 16 watt, the outlet flow of the pump can be realized according to the speed of the adjustment stroke frequency.

5.04 L/h Diaphragm Metering Pump Features

• Green screen digital display, brand new circuit design, more stable operation
• Stroke frequency button adjustment
• New type of one-way valve assembly, PTFE valve seat, acid and alkali resistance, more reasonable structure, stronger sealing
• Designed according to IP65 protection level
• ACEH/PC shell, strong and durable structure, weather resistance is far better than ABS material
• A variety of pump heads and sealing materials are available, suitable for a wider range of media delivery
• Optional low liquid level stop pump and alarm function
• Added diaphragm damage protection and alarm function
• Optional external pulse signal or 4-20mA analog signal.

Diaphragm Dosing Pump Specification:

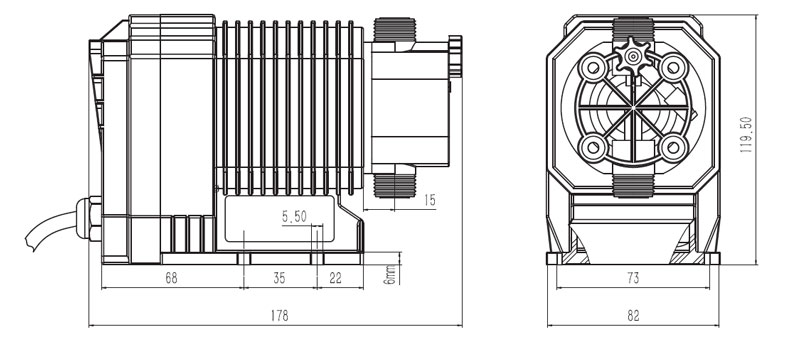

Digital Dosing Pump Dimension (unit: mm)

Why use metering pumps for fluid transport equipment?

In the transmission of fluid need to measure how much need to use metering pump because the metering pump is a reciprocating displacement pump, measurement accuracy <1%, so most of the use of metering pump metering equipment. In addition, high pressure to use hydraulic metering pump, suitable for high pressure and small flow occasions. Diaphragm metering pump without leakage, suitable for transporting corrosive, radioactive and other liquid materials, can be used in different industries of fluid and mixed art widely can be used in any place.
