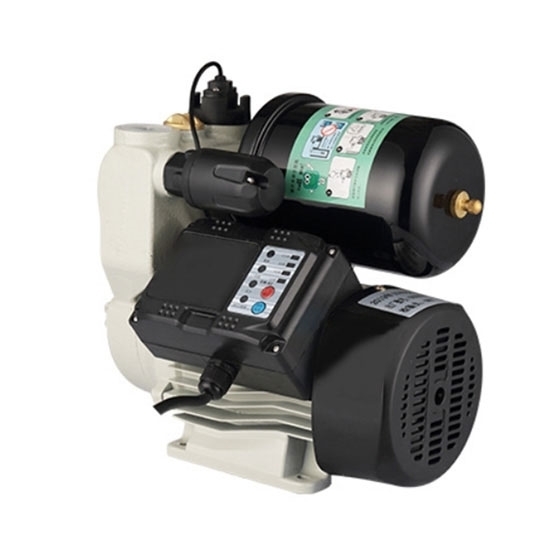

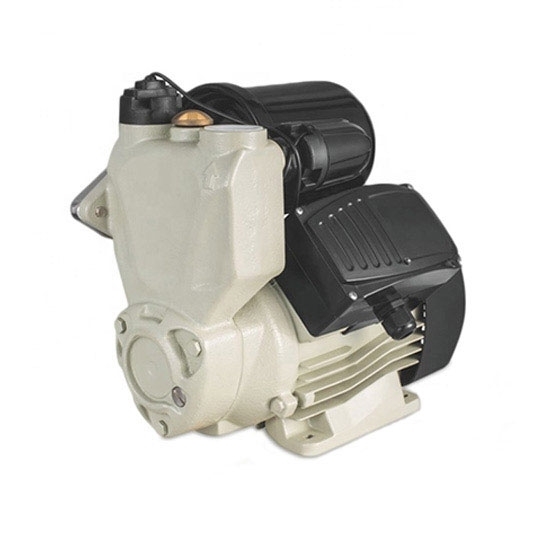

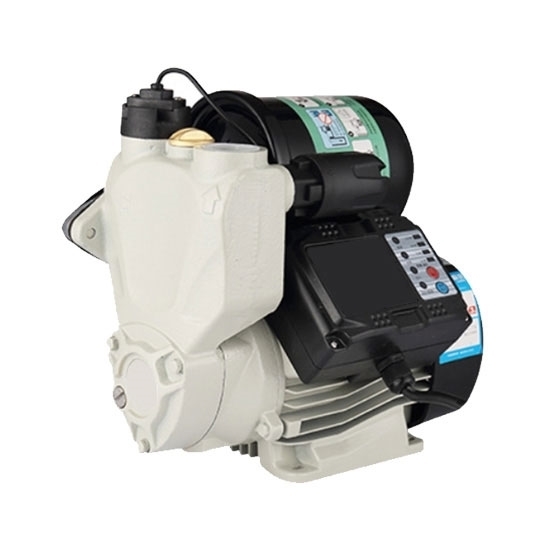

2 HP (1.5 kW) Automatic Water Booster Pump

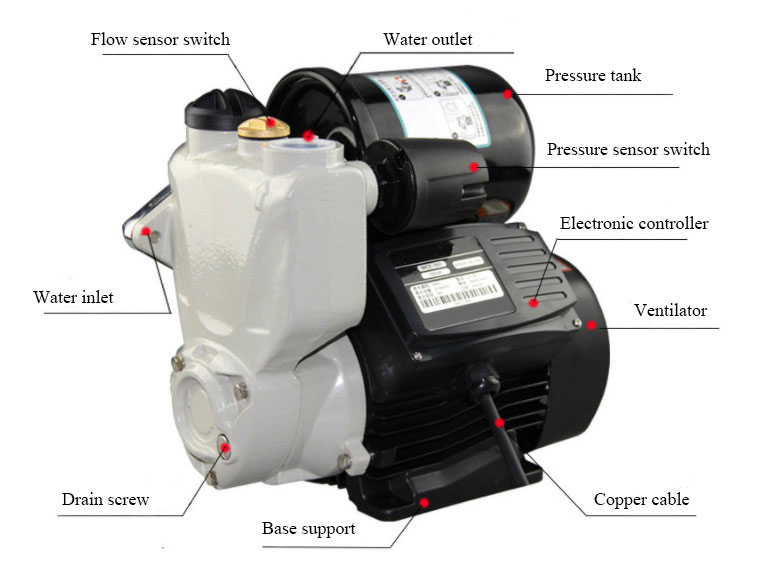

2 HP (1.5 kW) water pressure booster pump is a combination of motor, pump, pressure tank, pressure switch, flow sensor switch and electronic controller for the integration of automatic water supply system. It widely used in house, bathroom, washing machine, sprinkler system, irrigation system and reverse osmosis (RO) system.

Specification

Details

Applications

Tips: How to select an automatic water booster pump?

There are a number of factors causing water pressure problems, if the water tank water pressure is insufficient in the old house, you can solve the problem by installing a booster pump. But how to choose a suitable water booster pump Now we recommend you to choose it according to its technical parameters.

• Motor power
  In the case of the same flow head, the low power of the motor equipment is good.
• Rated flow
  The rated flow is the maximum amount of water that can be used in a given water service If the flow is not sufficient, the water pressure may be low or no water at peak times. Peak water pressure can be guaranteed only when the rated flow is greater than or equal to the maximum possible water consumption for our water use.
• Rated head or pressure
  The rated pressure is the maximum pressure that the booster pump can reach when operating at the rated flow. The max. pressure here must be at the rated flow, rather than the max. pressure when the outlet is closed.

In short, you must know about the actual parameters of water booster pump in detail from retailers and manufactures, and then choose according to your actual production needs.
