| Model | CHN-DR-45-24 |
Output
| DC Voltage | 24V |
| Rated Current | 2A |
| Current Range | 0 ~ 2A |
| Rated Power | 48W |
| Ripple & Noise (Max.)(Note 2) | 480mVp-p |
| Voltage Adjust Range | 21.6 ~ 26.4V |
| Voltage Tolerance (Note 3) | ±1.0% |
| Line Regulation | ±1.0% |
| Load Regulation | ±1.0% |
| Setup, Rise, Holdup Time | 800ms, 60ms, 60ms/230V AC |
| Input | Voltage Range | 85 ~ 264V AC or 120 ~ 370V DC |
| Frequency Range | 47~63Hz |
| Efficiency (Typ.) | 80% |
| AC Current (Typ.) | 1.5A/115V AC 0.75A/230V AC |
| Inrush Current (Typ.) | Cold start: 28A/115V AC 56A/230V AC |
| Leakage Current | <1mA/240V AC |
| Protection | Overload | 105~150% rated output power Protection type: Constant current limiting, recovers automatically after fault condition is removed. |
| Overvoltage | 27.6V ~ 32.4V Protection type: Shut off o/p voltage, clamping by zener diode. |
| Over temperature | Tj 135℃ typically (U1) detect on heat sink of power transistor Protection type: Shut down output voltage, re-power on to recover. |
| Environment | Working Temperature | -20 ~ +50℃ |
| Working Humidity | 20~90% RH non-condensing |
| Storage Temperature | -20~+85℃ |
| Storage Humidity | 10~95% RH non-condensing |
| Temperature Coefficient | ±0.03%/℃ (0~50℃) |
| Vibration | 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes |
| Safety & EMC (Note 4) | Safety Standards | UL60950-1, TUV EN60950-1 Approved |
| Withstand Voltage | I/P-O/P:3KVAC I/P-FG:2.0KVAC O/P-FG:0.5KVAC |
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC/25℃/70% RH |
| EMC Emission | Compliance to EN55022 (CISPR22) Class B, EN61000-3-2, -3 |
| EMC Immunity | Compliance to EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024, EN61000-6-2, EN61204-3, heavy industry level, criteria A |
| Others | MTBF | ≥364.6K hrs MIN. MIL-HDBK-217F (25℃) |

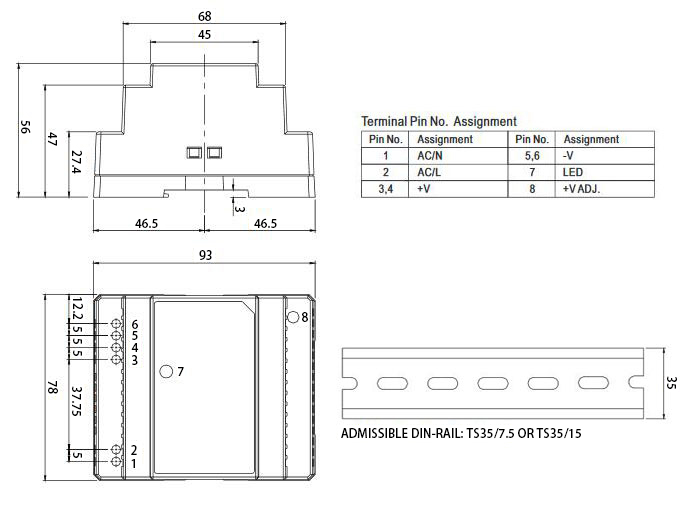

| Dimension | 93*78*56mm (L*W*H) |
| Weight | 0.31kg |
| Note | 1. All parameters NOT specially mentioned are measured at 230V AC input, rated load and 25°C of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance includes set up tolerance, line regulation and load regulation. 4. The switching power supply is considered a component which will be installed into final equipment. Please make sure that the final equipment still meets EMC directives. |
