10000 Watt 48V Pure Sine Wave Inverter Charger

$2851.84

Popular 10000W pure sine wave inverter/charger, battery DC output voltage 48V, adjustable 5 stages AC charging current, high

SKU: CHN-PI-LW10K

Free Shipping Worldwide

Delivery date: 6-12 days

Overview
Documents

10000W pure sine wave inverter / charger, high reliability. Battery DC output voltage 48V, adjustable 5-level AC charging current. With multiple protection, overload, over temperature, low power, overcharge. built in 40A / 60A optional MPPT solar charger controller, LED / LCD display, enhanced function setting, through LCD display, man-machine intelligent design, more effectively.

Features

GS Series AC/Solar charging Off grid Hybrid Inverter
LED/LCD display, Enhanced functions setting via LCD, Man-machine intelligent design
Built-in 40A/60A optional MPPT solar charger
LCD shows the solar capacity
Adjustable 5 stages AC charging current. AC charging also can be closed
AC/DC priority modes can be set
Generator restart signal. (Dry contact)
3 times peak power. Strong loading capacity
Overload, output short-circuit protection
Apply to Split Phase system, 2 live lines 1 neutral line,voltage is 120/240V

10000W Inverter/Charger Specification

Model	LW10000
Power	10000 Watt
Phase	Split phase
AC Input	Input Voltage Waveform	sinusoidal (utility or generator)
	Nominal input Voltage	HOT1-HOT2: 240VAC
	Low Line Disconnect	180Vac±4% (Normal) or 140Vac±4% (Wide)
	Low Line Re-connect	190Vac±4% (Normal) or 150Vac±4% (Wide)
	High Line Disconnect	270Vac±4% (Normal) or 270Vac±4% (Wide)
	High Line Re-connect	260Vac±4% (Normal) or 260Vac±4% (Wide)
	Max AC input Voltage	Max280V
	Frequency	50Hz:41-54Hz, 60Hz:51-64Hz
AC Output	Output Voltage Waveform	Sinewave
	Power Factor	1
	Nominal Output Voltage (V)	HOT1-N: 120Vac ±10%rms; HOT2-N: 120Vac ±10%rms; HO1-HOT2: 240Vac ±10%rms
	output phase difference	HOT1-N and HOT2-N is 180°; HOT1-N and HOT1-HOT2 is 0°; HOT2-N and HOT1-HOT2 is 180°
	Nominal Output Frequency (Hz)	50Hz ± 1Hz, 60Hz ± 1Hz
AC Charger	Nominal Charger Current	20A/35A/50A/70A/90A (According to the inverter model) ; adjustable 5 stages charging current;
AC Charger	Over charge Protection	Bat.V≥15.5VDC for 12V battery, Bat.V≥31.0VDC for 24V battery, Bat.V≥62.0VDC for 48V battery; beeps 0.5s every 1s & fault after 60s
Solar charger	Rated Charge Current	alternative 40A/60A
	PV Input Voltage range	15VDC-40VDC for 12VDC, 30VDC-75VDC for 24VDC, 60-145VDC for 48V
	Max.PV open circuit array Voltage	12V for 40Vdc, 24V for 75Vdc, 48V for 145Vdc
	Charger mode	MPPT
	PV Low Voltage Re-connect	PV≥Bat.V+3V
	PV Low Voltage Disconnect	PV≦Bat.V
	Effificiency	≥97%
DC Input	Battery Voltage	48VDC
	Low Battery Alarm	42VDC±1.2VDC
	Low DC input shut & down	40VDC±1.2VDC
	High DC input Alarm & Fault	64VDC±1.2VDC
Efficiency	Efficiency (Battery Mode)	≥87%
Efficiency	Efficiency (Line Mode)	＞98%
Transfer Time	AC to DC	20ms (max)
Transfer Time	DC to AC	15ms (max)
System Parameter	Over-Load Protection	110%＜load＜150%, beeps 0.5s every 1s, and Fault after 60s off the output, load＞150%, beeps 0.5s every 1s, and Fault after 20s
	Output Short Circuit Protection	YES
	Surge Rating	1:3 (VA)
	Protections	Low battery, over charging, over load, over temp
	Indicators	LED+LCD Display
General Specifications	Operating Temperature Range	0℃～40℃
	Stor age Temperature	﹣15℃～60℃
	Operation humidity	5% to 95% (non-condensing)
	Audible Noise	80dB max
	cooling	Forced air, variable speed fan
	Dimension (LWH)	627x416x204mm
	Net Weight (kg)	73kg

*Note: Product specifications are subject to change without further notice.

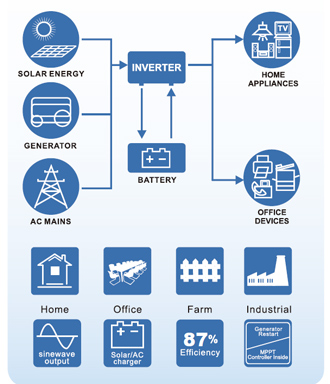

Inverter/Charger Applications

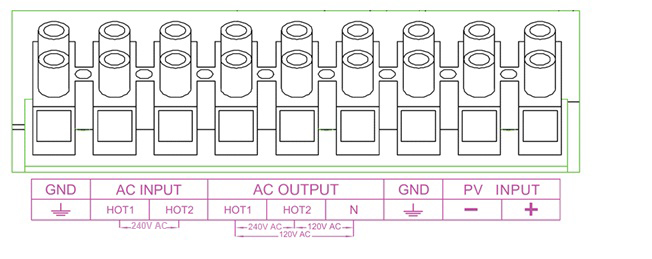

Inverter Split-Phase Output Terminal Description

Tips: What are the main characteristics and advantages of inverter?

The inverter has the characteristics of fast start and high conversion efficiency. It is worth saying that after improvement, its performance and functions in all aspects have been greatly improved, and the speed of converting current has been greatly improved, which has greatly improved its overall work efficiency. Therefore, people do not need to worry about the speed of its transformation.
It has to be said that the safety of the inverter. Electricity safety is crucial. In the research and development process, the personnel fully considered the Countermeasures under various conditions such as short circuit, negative pressure and overtemperature, so that it has the function of solving these problems. Therefore, it is a very safe power tool. There is no need to worry about potential safety hazards in the process of use.
The inverter also has very good stability. In case of insufficient voltage or negative pressure, it can better keep its performance unchanged.
