Model	CHN-WCT-100
Power Circuit

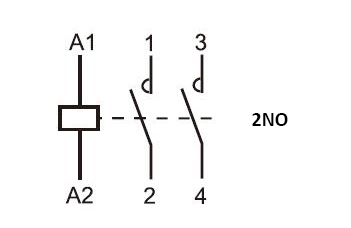

Voltage rating (Ue)	2P	250V AC

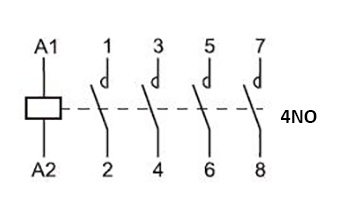

	4P	400V AC
Frequency	50Hz or 60Hz
Endurance (O-C)
Electrical	100,000 cycles
Maximum number of switching operation a day	100
Additional Characteristics
Insulation voltage (Ui)	500V AC
Pollution degree	2
Rated impulse withstand voltage (Uimp)	2.5kv (4 kV for 12/24/48V AC)
Degree of protection (IEC 60529)	Device only	IP20
	Device in modular enclosure	IP40
Operating temperature	-5℃ to 60+℃
Storage temperature	-40℃ to 70+℃
Tropicalization ( IEC 60068-1)	Treatment 2 ( relative humidity 95% at 55℃ )
ELSV compliance (Extra Low Safety Voltage) for 12/24/48 V AC versions
The product control conforms to the SELV (Safety Extra Low Voltage) requirements

Type	Raring (In)		Control Voltage (V AC) (50Hz)	Consumption		Max Power
	AC7a	AC7b		Holding	Inrush
2P	100A	-	220-240	6.5VA	53VA	2.1W
4P			220-240	13VA	106VA	4.2W
