95 Amps 4 Pole AC Contactor 24V/110V/220V Coil

95A 4 pole AC contactor is used under 50Hz or 60Hz, as a bypass contactor, making or breaking electric ciucuits at a long distance, frequent starting, stopping and controlling AC motors.

Specifications

Dimensions (unit: mm)

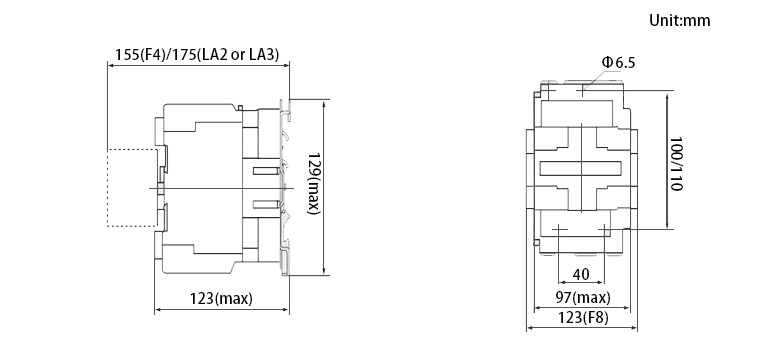

4P (4NO) AC contactor

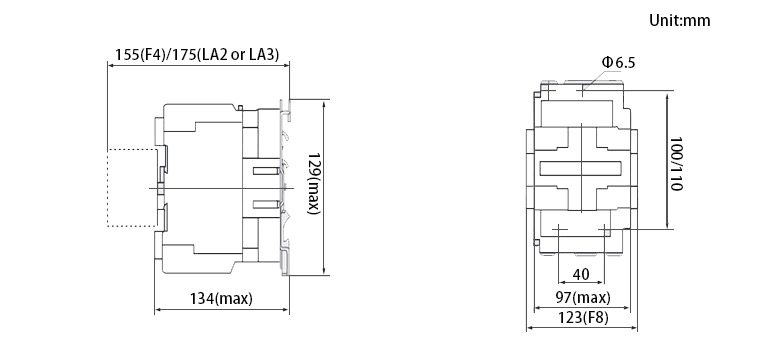

4P (2NO+2NC) AC contactor

Tips: The contact of AC contactor is overheating or burning for eight-hour working, how to solve?

Possible Causes:

• Contact spring pressure is too small

• There is oil on the contact, or the surface is uneven, and the metal particles are prominent.

• The ambient temperature is too high or used in a closed control box

• Copper contacts for long-term work

• The overtravel of the contact is too small

Processing method:

1. Increase the contact spring pressure

2. Clean the contact surface
3. Contactor derating
4. Adjust the contact overtravel or replace the contact
