Pressure Switch, 0.1 to 20 Bar

Pressure switch with cheap price, which features 250VAC/ 24VDC max voltage, max current 4A, 300 bar burst pressure.

Specification

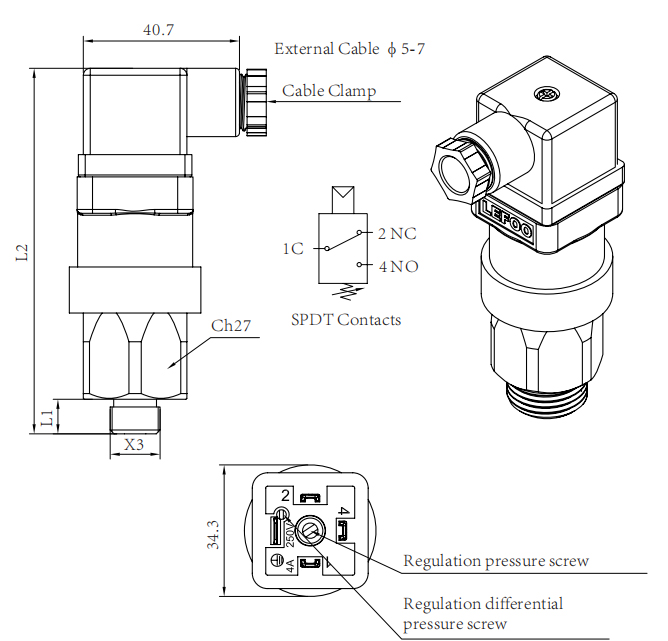

Dimensions (mm)

Tips: How to Operation Pressure Switch?
1. Set up the method of controlling pressure
(1) Short press the (ON/OFF) run key to turn off the run indicator, and the pressure control system is closed.
(2) Set the upper/lower limit of control
Short press the SET button once to enter the lower limit setting state (corresponding to the lower limit indicator light), set the value through (▲) (▼), after setting the lower limit, short press the SET button to enter the upper limit setting, the setting method is the same as above.
(3) After the setting is completed, press the SET button to automatically save the set value into the computer chip (after the parameter is modified, no key operation within 5 seconds will automatically save the current parameter setting).
(4) Press the (ON/ OFF) run key again (the corresponding run indicator light is on), and the motor starts to work.
2. Unit switching method: short press the (ON/ OFF) run key to turn off the run indicator, and short press the increase key (▲) to switch the unit between MPa, Kg/cm, and PSI at will. Turn on the running indicator after the setting is complete.
3. Zero clearing function: short press the (ON/ OFF) run key to turn off the run indicator, and long press the down button (▼) for 5 seconds to clear the current pressure value to zero and correct the zero error. Turn on the running indicator after the setting is complete. (The pressure switch must not apply pressure when using this function.)
