Model	HKA1-1
Type	4 way self-locking/ 4NO4NC
Rated voltage	150V/ 250V/ 600V
Rated current	15A/ 10A/ 4A

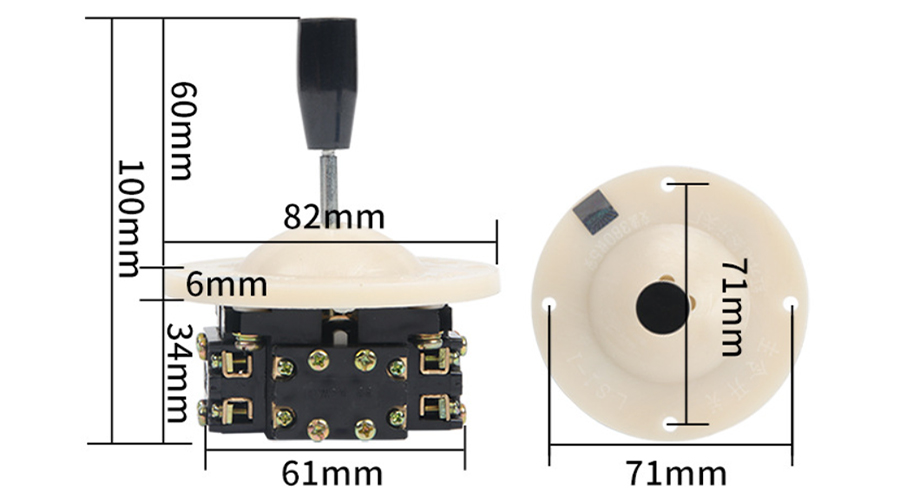

Hole diameter	71mm
Operating current	10-15A
Insulation voltage	600V
Insulation resistance	100MΩ
Operating pressure	5-20N
Contact resistance	200Ω
Operating temperature	0℃-85 ℃
Operation method	Emergency
Installation size	22mm
Panel thickness	2-5mm
Reset method	Manual control
Certificate	CCC
Warranty	12 months
