The portable 2.2 kW (3 hp) air compressor is ideal for DIY and trade applications such as spray-painting, impact wrenches, sanding, drilling, cutting, nailing and grinding thanks to it's impressive capacity coupled with a very high 7.1 cfm air delivery. It offers a fantastic combination of performance, safety and value for money.

3 hp Air Compressor Features

• Direct drive induction motor with thermal overload protection.
• Easy-to-carry handle and smooth-rolling wheels for hassle-free mobility.
• Low noise, low amp draw and high output.
• 8 gal., 11 gal., 13 gal., 26 gal. tank capacity are optional.

26 Gal. Air Compressor Description

Choose Your Air Compressor

You could choose different type of 3 hp portable air compressor air compressor pump with different capacity of air tank.

Note: Tell us your application needs, we can customize the air compressor to meet your precise power, tank capacity, air delivery and rated voltage requirements.

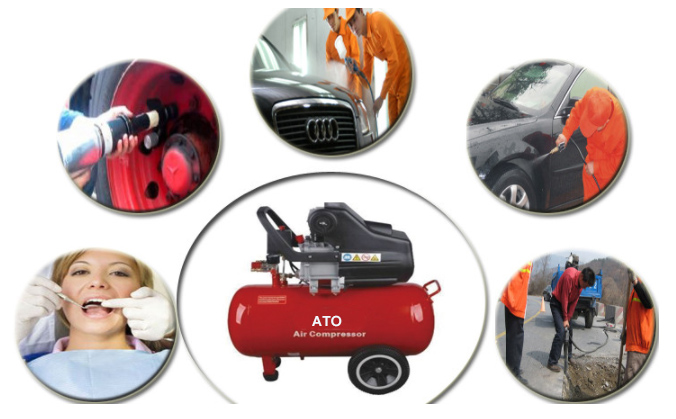

Air Compressor Applications
Tips: Classification of piston portable air compressor
According to the stages of compression, there are single stage compression and two-stage compression. Single stage air compressor means that there is only once compression of refrigerant vapor from low pressure to high pressure in the compression process. The two-stage air compressior means that there are twice continuous compression of refrigerant vapor from low pressure to high pressure in the compression process.

According to the way of action, there are single acting air compressor and double acting air compressor. The refrigerant vapor is only compressed on the side of the piston, and the piston goes back and forth in one stroke with inhale and air-out one time. However, the refrigerant vapor of double acting air compressor takes turn to compress in the cylinder on both sides of the piston, and the piston goes back and forth in one stroke with inhale and air-out twice. So for the cylinder of the same size, the inspiratory capacity of double acting air compressor is larger than single acting air compressor. However, because of the complex structure of the double acting air compressor, the single acting air compressor is used mostly.
