Home > Industrial Equipment > Water Purification System

Send Inquiry

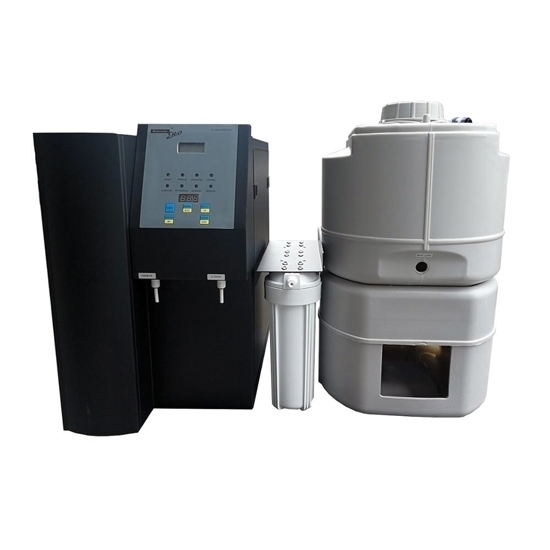

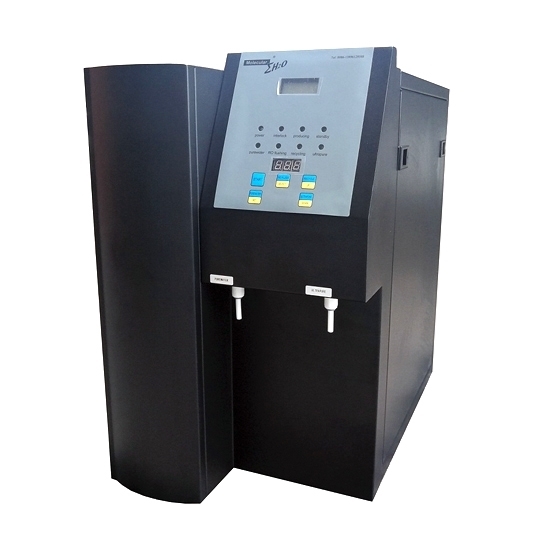

RO Water Purification System, <10ppb TOC, Type 1 & 3

$5423.66

Cost effective lab water purification system, pretreatment, reverse osmosis modules, deionization cartridges, storage tanks,

SKU: CHN-WPS-Moelement810

Free Shipping Worldwide

Delivery date: 6-12 days

Overview
Documents

Laboratory RO water deionizer filter, feeding water can be tap water, distilled water, municipal water, well water, river water. Suitable for sample pretreatment, conventional physical and chemical analysis, toxicity test, quantitative analysis of trace element and other experimental projects.

Specification

Model	Moelement810s/ 820s/ 830s	Moelement810d/ 820d/ 830d
Process	Single pass RO system	Double pass RO system
Output of pure water	≥10L/H	≥10L/H
Output of ultrapure water	≥ 1-1.5L/min	≥ 1-1.5L/min
Resistivity at 25℃	18.25MΩ.cm	18.25MΩ.cm
Conductivity at 25℃ (Type 3 water)	≤10μs/cm	≤5μs/cm
TOC	< 10ppb	< 10ppb
Pyrogens/endotoxins	< 0.025EU/ml	< 0.025EU/ml
Bacteria	< 1cfu/ml	< 1cfu/ml
Particles (> 0.22μm)	< 1/ml	< 1/ml
Absorbance (254nm,1cm optical distance)	≤ 0.001	≤ 0.001
Reactive Silica (SiO2)	< 0.01ppm	< 0.01ppm
Heavy metal	< 0.01ppm	< 0.01ppm
Electrical requirements	220V (230V, 240V) 50Hz
Power	≥100W	≥150W
Dimension (L/W/H)	340550530mm	340550530mm
Weight	≥32KG	≥41KG
Tank capacity	30L

Note: The model end with 's' has single stage RO module, suitable for feed water inlet TDS<200PPM. Model end with 'd' have double stage RO module, suitable for feed water inlet 200ppm<TDS<400ppm. If feed water inlet TDS>400PPM, suggest an additional industrial type softener.

Product Features
Power-on self-test, water shortage protection alarm, power-off protection.
Built-in RO membrane anti-scaling program, RO membrane manual cleaning button.
IC microcomputer intelligent control, built-in automatic cycle timing of ultrapure water, ultrapure water conservation.
On-line monitoring of water resistance, real-time display of system operating status and warnings. UV lamp failure alarm.

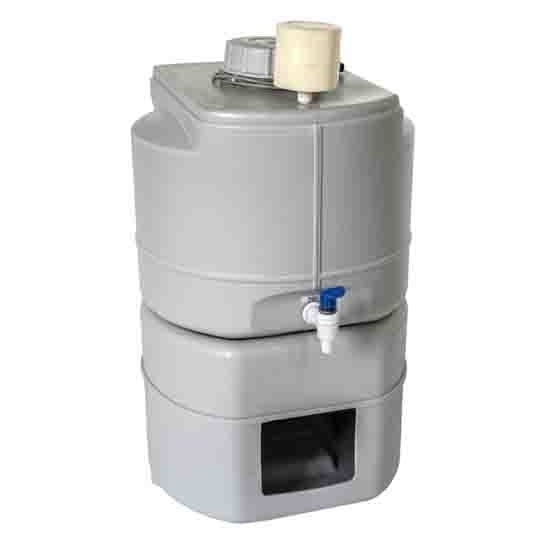

Pure water tank with cone type structure,a discharge valve at the bottom, easy to clean and disinfect exhausted.
Digital display the time of regular intake or conveying water pressure. Can set time of water outlet.

Lab Test and Corresponding Water Type List

Test Name	Type III Water	Type II Water	Type I Water
Lab glassware washing	√
Hydroponics	√
Sterilizer use water	√
Gas generator use water	√	√
Conventional test	√
Reagents/ drugs preparation, dilution	√
Feed water for ultrapure water	√
IC		√
LC/LC-MS			√
HPLC			√
AAS			√
ICP/ICP-MS			√
GC/GC-MS			√
Trace analysis			√
TOC analysis			√
Organic analysis			√
Inorganic analysis			√
Environmental analytical test			√
Microelectronics parts cleaning			√
Precision instrument use water			√
Analytical reagent/ drugs preparation, dilution			√
Mass spectrometry			√
PCR application/analysis			√
DNA/RNA research			√
Proteomics research			√
Plant and animal cell culture			√
Toxicity analysis			√
Microbiology experiment			√
Immunological experiment			√
Biochemistry experiment		√
Serum test		√
IVF			√

Main Consumable List (A water purification system is equipped with a set of consumables. If you want to buy some of the following consumables, contact us now.)

No.	Name	Specification	Lifespan
1	PP filter	1st stage, 10”/20” (5μm)	3-6 months
2	Activated Carbon filter	2nd stage, 10”/20”	6-12 months
3	Softener filter	3rd stage, 10”/20”	6-12 months
4	Precision filter	4th stage, 10”/20” (1μm)	10-12 months
5	RO membrane	75g/300g	1-2 years
6	Ultra purification resin column		1 year
7	Micro filter	0.22μm	1 year
8	UV lamp	185/254nm	8000 hours
9	Pure water tank	30L, 80L, 120L

Tips: What is ultrapure water?
Ultrapure water is water that almost completely removes the conductive medium in water, and removes non-dissociable colloidal substances, gases and organic matter to a very low level. Resistivity is greater than 18MΩ.cm@25℃, or close to 18.3MΩ.cm@25℃.
Ultrapure water is a level that is difficult to achieve by ordinary processes. ATO.com provided lab purification water system adopts four major steps of pretreatment, reverse osmosis technology, ultra-purification treatment and post-stage treatment. Multi-stage filtration, high-performance ion exchange unit, ultrafiltration filter, UV lamp, TOC device and other processing methods are used. The resistivity can reach 18.25MΩ.cm@25℃ to ensure high quality effluent water quality. Products are widely used in universities, scientific research, pharmaceutical factories, power, electronics, medical, disease control, environmental supervision, technical supervision and other key industries.
