Features

• Stainless steel tank, high durability and long service life.
• Large capacity tank holds 20 litre volume, capable of cleaning many items at one time.
• Ultrasonice cleaning machine has digital timer control, 0-30min adjustable.
• With digital heating function range of 20°C ~ 80°C, helpful to remove the oil and wax.
• Degas function to prevent the items from oxidation.
• Dual ultrasonic power 210W/420W to meet different cleaning requirements.
• Ultrasonic cleaner comes with stainless steel basket to keep the items secure.
• Using only tap water, or industrial alcohol and solvent cleaner for higher cleaning requirement.
• Adopting industrial control chip microcontroller, flexible circuit board control, safer and more stable.

Specification

Applications

• Jewelry Industry: Jewelry, diamond, gold, silver products
• Machinery: Moulds, precision parts, pressing parts, camera parts, bearing, hardware tools
• Electronics: PCB board, electronic parts, TV parts, computer parts
• Auto Industry: Engine parts, gear box, shock absorber, auto nozzle, cylinder, valve
• Dental& Medical: Dental tools, medical tools, injector, surgery tools, dropper, glass container
• Plating& painting: Polishing parts, SUS cutter, tableware, plating
• Food industry: Oven tray, boiler, bottles, bottle cap, filters
• Optical& watch maker: Optical lens, eyeglass, metal, gold, jewelry, diamond, watch band, watch cover, watch hand
• Textile: Spinneret plate, rubber parts, plastic molds, toy
• Others: Seal, flapper, coins, pottery, bank card, IGBT

Tips: Main Structure of Ultrasonic Cleaner

Ultrasonic cleaner is mainly composed of three major parts, ultrasonic generator, cleaning tank and case:

1. The case

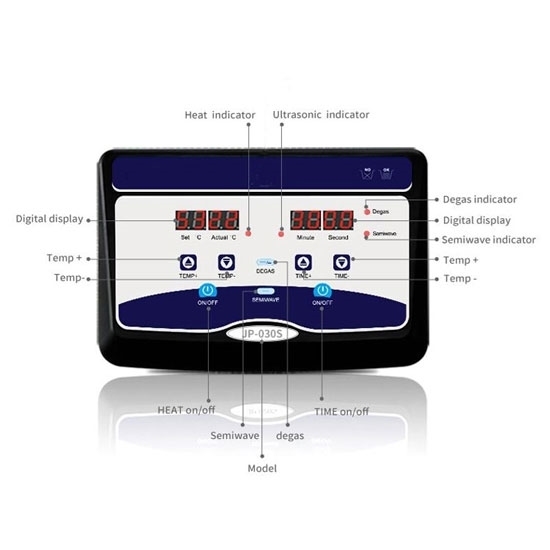

The panel of ultrasonic cleaning machine is equipped with power switch, timer control, heater control, digital display, etc. The rear of the case is equipped with a power outlet and a safety tube.

2. Ultrasonic generator
It is composed of power transformer and rectifier system, oscillator, push stage, power amplifier and output transformer.

3. Cleaning tank
The tank of ultrasonic cleaner consists of stainless steel tank, composite transducer and matching inductance. The transducer is fitted at the bottom of the stainless steel tank, and there is an anti-vibration device between the tank and the box frame.
