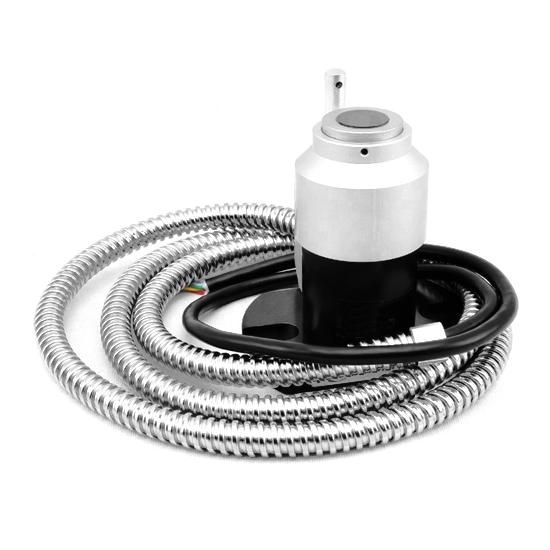

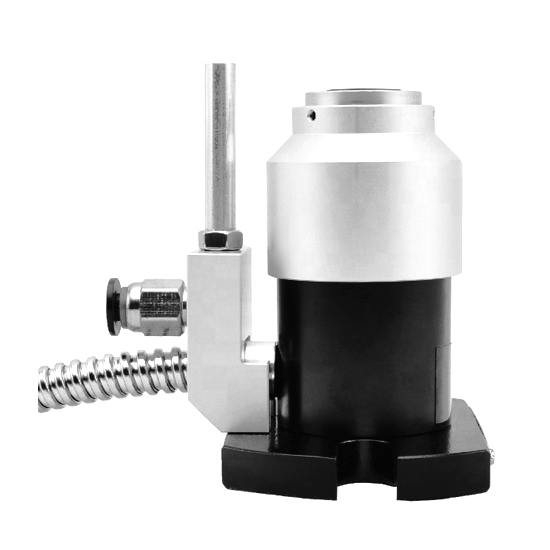

CNC tool setter with height 90mm and optional contact type NC (4 wire) or NO (6 wire) can be used for lathe tool z axis setting.

Specification:

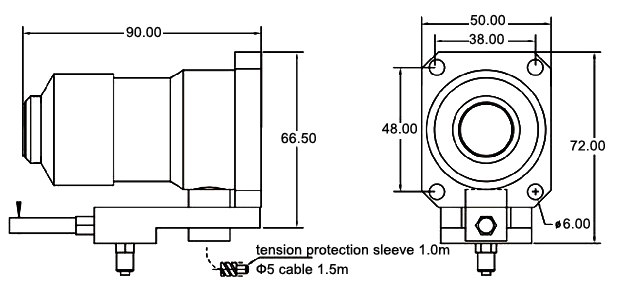

Dimension (unit: mm):

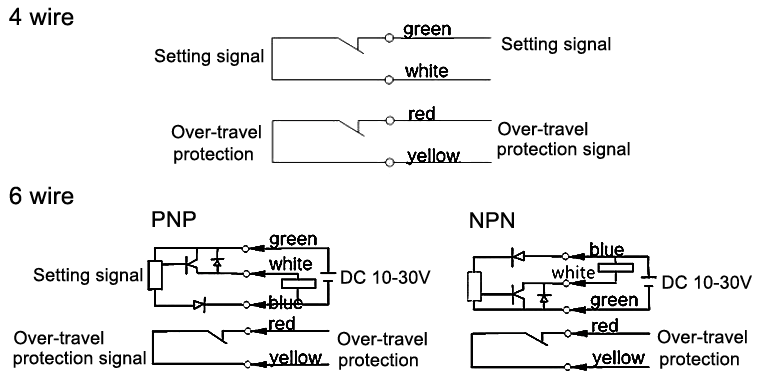

Wiring diagram:

Tips: Considerations in using the tool setter

I. Installation considerations
1. Mechanical

1. Please try to install tool setter at the place with less scrap iron on the workbench.
2. Recommend installing the tool setter on good levelness support, make sure the parallelism of the tool setter.
3. The tool’s center should fall on the center of the tool setter’s surface.
4. Do not force the rotation of the tool setter’s head.

2. Electrical

1. The tool setter shall be installed in the near of the machine body has ground protection or shield.
2. 2.The maximum tension force of power wire and signal wire is 20N. The cable minimum bending is R7.

3. Air pipes

1. Please use the pipe connector. The air pipe outer diameter is 4mm, inner diameter is 2.5mm.
2. There are 2 blowing holes with 1mm diameter, so use a pipe with a minimum diameter of 2mm or more.
3. Clean the rest of iron filing and cutting oil, when the air blowing doesn’t work to the areas of the contact surface.

II. Operation considerations
1. The tool must be perpendicular to the contact surface.

2. Do not release finger immediately when put it on the tool setter contact surface, in order to avoid damage to its internal structure.

3. Don't exceed the travel of the tool setter, otherwise it will damage the tool setter and tool.

4. When the tool and tool setter is contacting and setting is finished, the tool should be vertically got away from the contact surface. The tool can not move laterally, it will damage the tool setter.
