Features

• Motor is high-vacuum turbine motor, provides high power of 3kW~7.5kW, and the voltage is 3-phase 380V. Heavy duty industrial vacuum cleaner can work continuously for 24 hours and has a long service life.
• Vacuum cleaner tank is detachable tank with 100L capacity. The upper and lower dust collection buckets can be separated, easy to operation and maintenance.
• Industrial vacuum design, quickly, efficiently, and safely clean dust waste on the floor, and it is used for dust removal in factory workshops. For dust, iron filings, pebbles, broken glass dregs, broken paper crumbs, dirt dregs, etc., heavy duty industrial vacuum cleaners can also easily handle them.

Specification

*Note: Filter element life is 3 months, please select according to your needs.

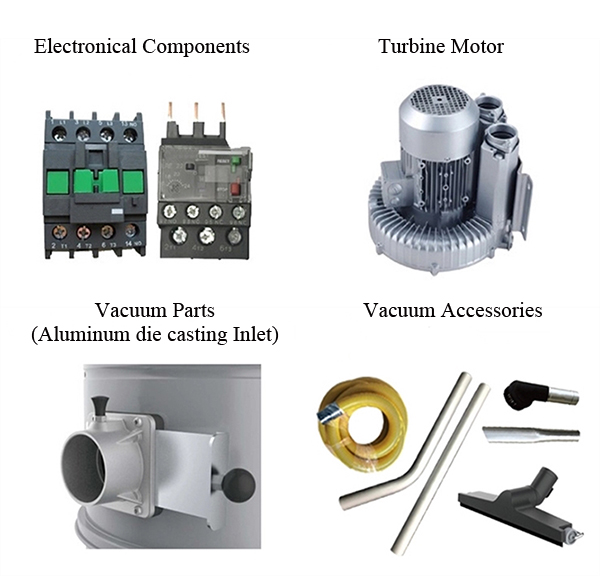

Detail Image of Heavy Duty Industrial Vacuum Cleaner

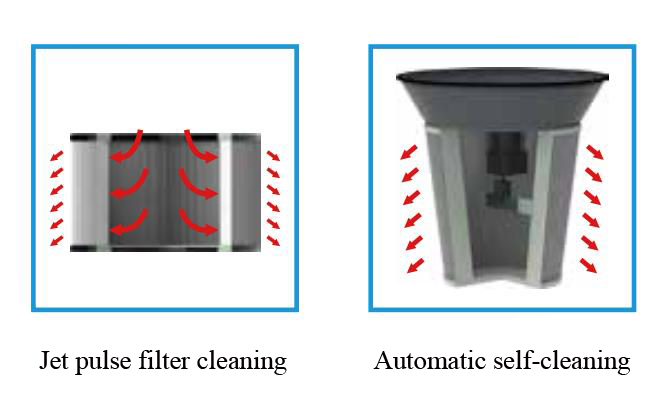

Filter Cleaning Mode Diagram of Heavy Duty Industrial Vacuum Cleaner

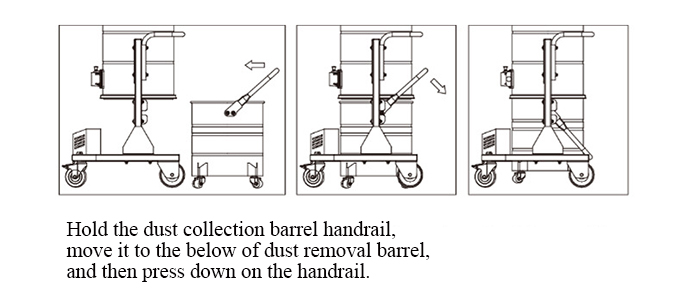

Installation Diagram for Collection Dust Barrel of Heavy Duty Industrial Vacuum Cleaner

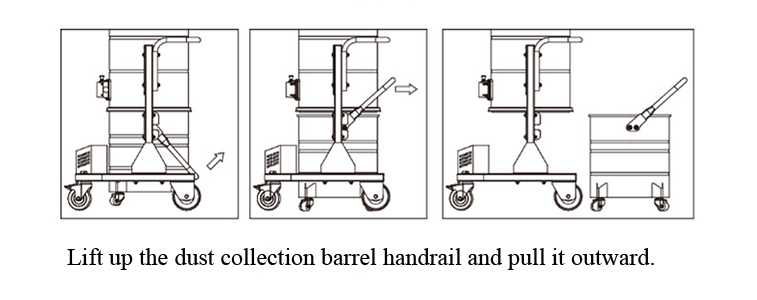

Disassembly Diagram for Collection Dust Barrel of Heavy Duty Industrial Vacuum Cleaner

Tips: How to solve the failure that heavy duty industrial vacuum cleaner can not operating normally?

• Motor of the heavy duty industrial vacuum cleaner can rotate but cannot vacuum.

1. Dust collection barrel of the vacuum cleaner is full, causing the air path to be blocked. Clean up the garbage in the dust collection barrel in time.
2. Suction hose and nozzle joints are blocked by foreign objects. Check whether the paths and micro-holes are clogged, and remove the foreign matter to make it clear.
3. Poor connections between hoses, brush holders, and extension tubes, causing leaks. Check each connection and reconnect it.
4. Middle connection part of the shell is not connected well or the sealing rubber ring is aging and ineffective. Check joints and seals, and replace if necessary.

• Heavy duty industrial vacuum cleaner do not work when powered on.

1. The fuse is blown. Replace with new fuse.
2. Poor contact of the power cord or loose motor leads.
3. Power switch of the industrial vacuum cleaner is damaged.
4. Motor is damaged. Replace with new motor. If only the bearing inside the motor is damaged or the carbon brush is worn, replace it with new bearing or carbon brush.
