Industrial Dehumidifier 190-Pint (90L) for 1200 Sq. Ft

Features

• Remove up to 90L water in the air per day (190 pints per day) for an area around 80-120m² (860-1290 square feet).
• Adopting brand compressor, powerful, low noise and energy saving.
• Turbine centrifugal fan with strong air volume 1000m³/h, large dehumidification capacity.
• LCD display, free to set and control humidity.
• Set start-up time (1-24h) freely.
• Industrial dehumidifier has four universal wheels, convenient to move.
• Auto defrosting function to protect the compressor and ensure the normal operation.
• With direct-to-drain hose, to continuously drain off water.

Specification

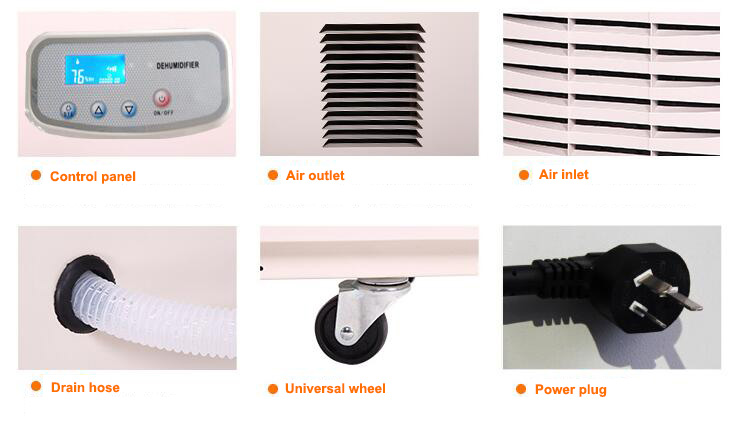

Dehumidifier Details

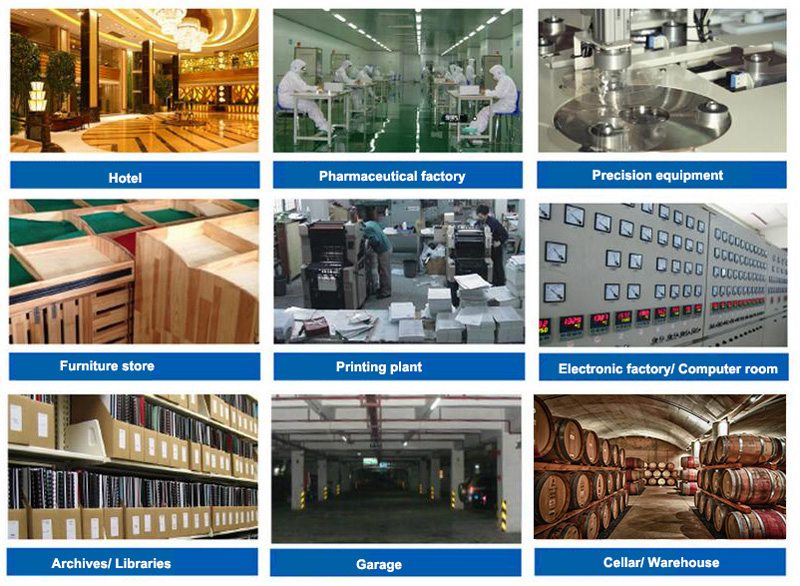

Applications

Tips: Working Principle of Industrial Dehumidifier

1. Internal circulation of industrial dehumidifier

Operation of the compressor → discharges high temperature and high pressure gas from exhaust outlet → move into the condenser for cooling → turn into medium temperature and high pressure liquid → throttle through capillary → become low temperature and low pressure liquid → evaporation and heat absorption through evaporator → come back to the compressor compressed into high temperature and high pressure gas. The industrial dehumidifier works in such internal circulation.

2. External circulation of industrial dehumidifier

Starting up of dehumidifier under the normal condition → the operation of the fan → the moist air is inhaled from the air inlet → it goes through the evaporator → the evaporator attaches the water in the air to the aluminum sheet → it becomes dry air → it dissipates heat through the condenser → it is blown out from the air outlet.

Internal refrigeration system and external air circulation are running synchronously, to complete the condensation and dehumidification. Such reciprocating cycle work of industry dehumidifier complete the dehumidification in the environmental space.
