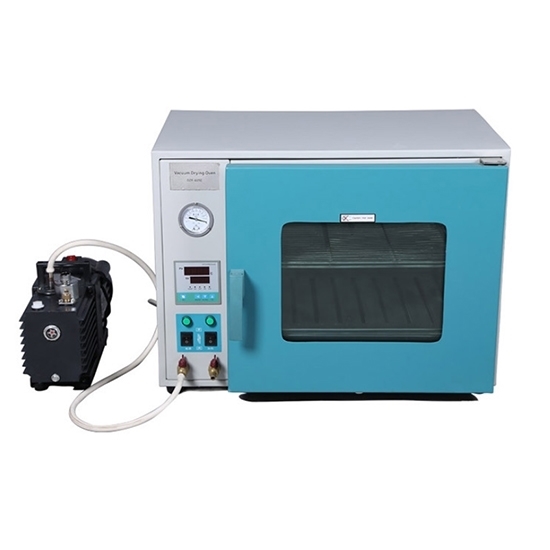

Industrial/Lab Vacuum Oven with Pump

$1607.38

Industrial/Lab vacuum oven with pump also suitable for commercial use. Chamber capacity of the vacuum oven can select 0.28/0.

SKU: CHN-ILVO-6019

Free Shipping Worldwide

Delivery date: 6-12 days

Overview
Documents

Vacuum oven is also called vacuum dryer or vacuum drying oven. It is widely used in chemical and pharmaceutical, food, medical, health, agriculture, environmental protection and other research and application fields. It can baking, drying, heat treat various powders and sterilize various glass containers. The vacuum oven with pump is particularly suitable for fast and effective drying of heat-sensitive, easily decomposed, easily oxidized materials and objects with complex components.

Features of Industrial/Lab Vacuum Oven with Pump

Vacuum oven with rotary vacuum pump, rotary vane vacuum pump can effectively and quickly pumping vacuum and offering vacuum condition for vacuum drying operation.
Cavity of the vacuum oven is a cuboid, effectively increases the capacity.
Vacuum oven uses microcomputer temperature controller, make the data more accurate and reliable.
The vacuum dryer uses double-shelf explosion-proof glass door, which is strong and will not deform under ultimate vacuum pressure. Good insulation effect, ensure no heat loss.
Drying time of the vacuum oven is minimized. Compared with traditional vacuum drying oven, its the heating time is reduced by more than 50%.
Drying, baking, heating and testing are all under vacuum and oxygen-free or filled with inert gas, so materials will not be oxidized.
Sealing of the glass door can be adjusted. Sealing and elasticity of the silicone edge band is excellent, fully ensure the temperature and high vacuum inside the vacuum oven

Specification

Model	CHN-ILVO-6010	CHN-ILVO-6020	CHN-ILVO-6050	CHN-ILVO-6090	CHN-ILVO-6210
Input Power (W)	400	700	1400	2000	2060
Chamber Capacity (L)	8	25	55	90	430
Chamber Capacity (cu ft)	0.28	0.9	1.9	3.2	15
Inner Dimension (WDH, mm)	200200200	300300270	400400345	450450450	560600640
Overall Dimension (WDH, mm)	630420460	620510480	710580530	610680710	7208201750
Weigh (kg)	75	85	125	155	315
Tray (Pcs)	1		2		3
Power Supply (V/Hz)	220V/50Hz 110V/60Hz
Shell Material	Spray-paint Anti-corrosion
Liner Material	304 Stainless Steel
Temp. Range (℃)	RT+10-200 (250)
Temp. Stability (℃)	±1.0
Temp. Analysis (℃)	0.1
Working Temp. (℃)	+5~40
Certification	CE
Optional Configuration	Explosion-proof
Packing List	user manual1 packing list1 qualification certificate1 fuse2 vacuum connecting pipe1 (except for model 6090) spanner2

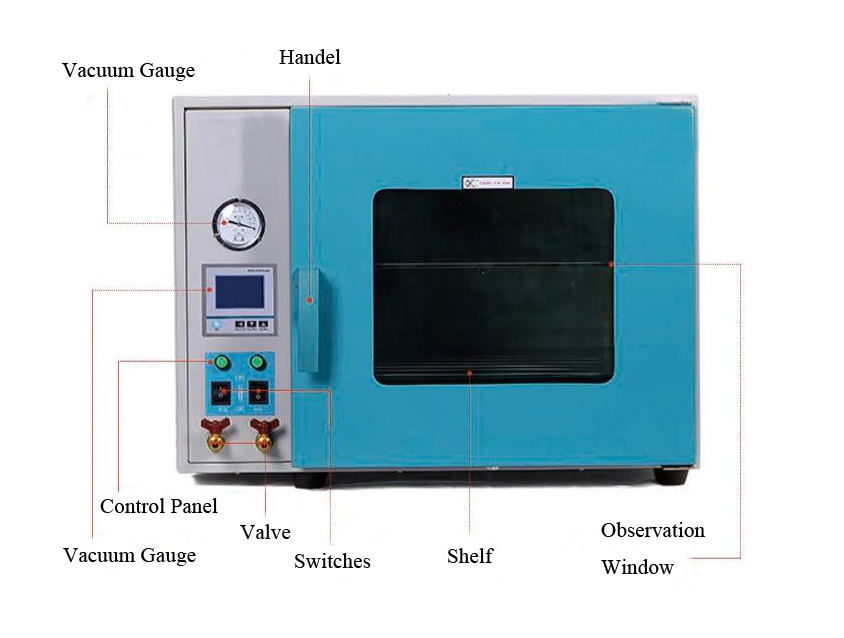

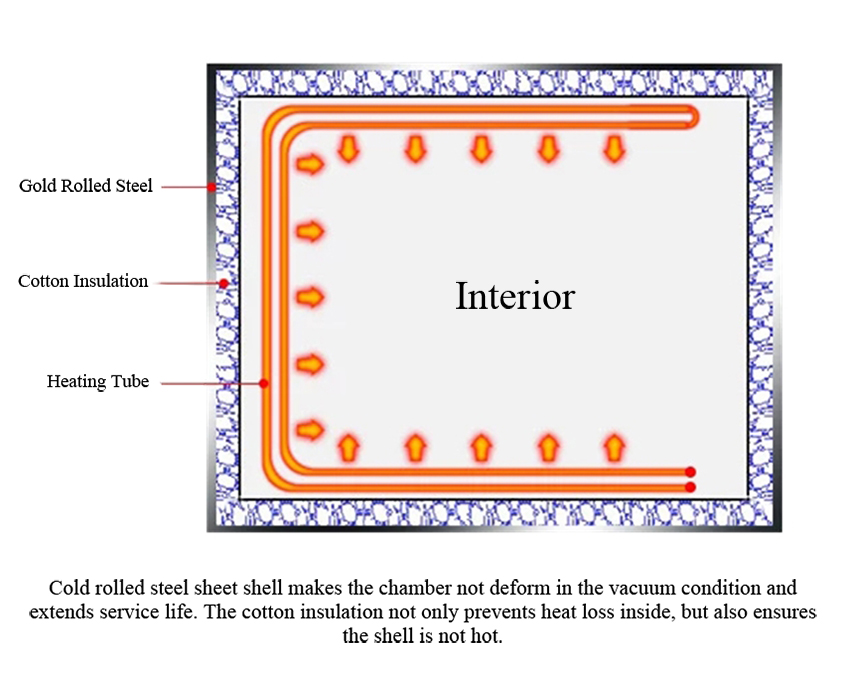

Industrial/Lab Vacuum Oven Structure Diagram

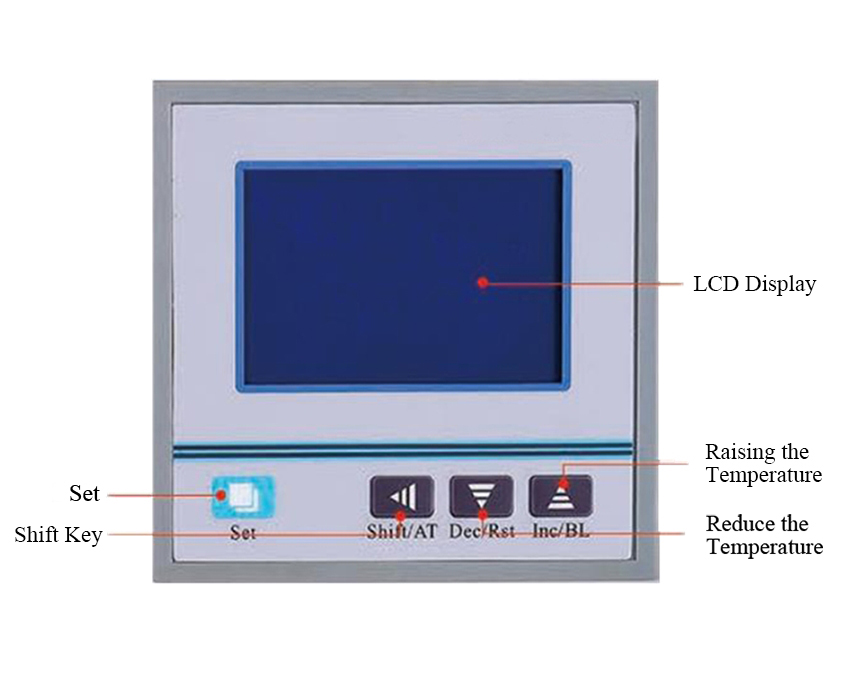

Temperature Controller of Industrial/Lab Vacuum Oven with Pump

Tips: Failure Treatment for Industrial/Lab Vacuum Oven with Pump

Failure Phenomena	Possible Reasons	Treatment
No power	The out power socket had no power.	Check whether the lines are connected well and whether the socket is well.
	The power plug is not inserted well in the socket or the line is cut off.	Re-insert the plug or repair the line.
	The fuse is broken or there is no fuse.	Check whether there is any short circuit. Replace the fuse (short circuit for apparatus power transformer, short circuit for heater, short circuit for grounding and others short circuit all can cause breaking of fuse.
The temperature does not increase	The set value is too low.	Set temperature SV≥RT+10℃ (RT is environment temperature).
	The heater is damaged (short circuit, or open circuit)	Replace it.
	Use timing function or the setting is not correct.	ST=0 or ST=(heating time + constant temperature time.
The cabinet cannot be vacuumized.	The vacuum pump is not of the correct model and size.	The vacuumizing speed should not be less than 2 L/S.
	Various connecting pipe is too loose.	Replace it.
	The door is not closed well.	Adjust the door pin distance.
