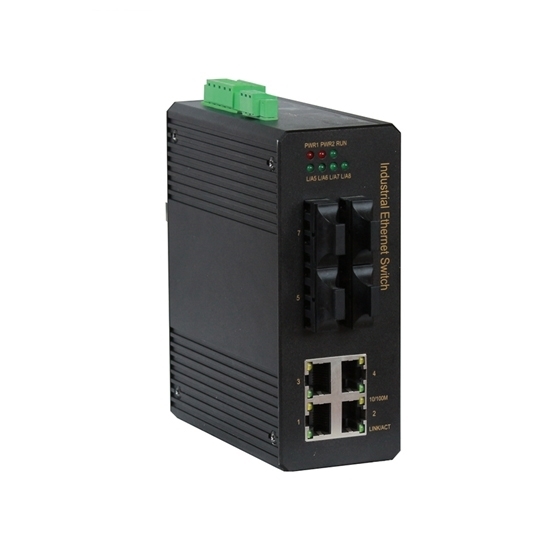

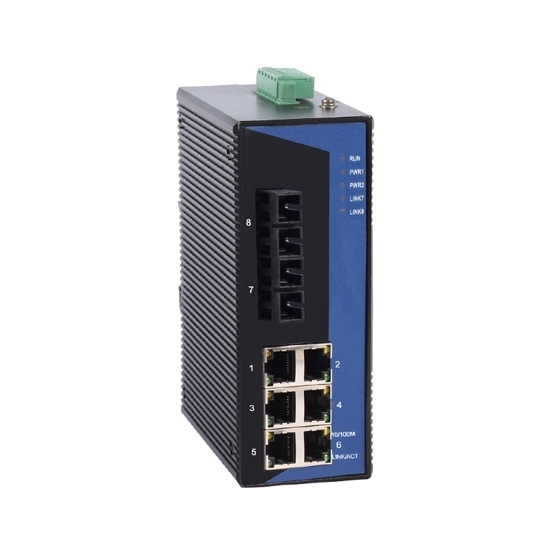

8 Port Unmanaged Industrial Switch, 10/100M, Din Rail


$169.23
10/100Mbps unmanaged 8 port Ethernet switches on sale, rugged Din-rail mounting Layer 2 switch, optional single 100-240VAC/11
SKU: CHN-ES-EN2208
Free Shipping Worldwide
Delivery date: 6-12 days

Cheap price EN2208 unmanaged 8-port industrial switch, equipped with IEEE 802.3/802.3u/802.3x with 10/100M and MDI/MDIX auto-sensing RJ45 ports, simply plug in the Ethernet cable and connect the power cord to get started, no software configuration required.

Specification

ModelCHN-EN2208
Technical Parameters
Protocol StandardIEEE802.3 (Ethernet), IEEE802.3u (100Base-TX & 100Base-FX), IEEE802.3x (Flow control)
Switch Capability
MAC Table Size4k
Backplane Bandwidth1.6Gbps
Switch Delay<5μs
Interface
100M PortNumber: 8
Connector: 1×9 fixed optical port (single/multi-mode optional, SC/FC/ST interface) or RJ45 100M TX port
Baud rate: 100Base-FX (Optical port), Self-adaption 10/100Mbase-TX
Terminal Block for Power Input    5.08mm terminal block
Terminal Block for Relay Alarm5.08mm terminal block, 1A@24VDC
Communication Distance
Twisted-pair100m (CAT5/CAT5e cable)
Multi-mode Fiber100M multi-mode: 1310nm, 2km
Single Mode Fiber100M single mode: 1310nm, 20/40km; 1550nm, 60/80km
LED Indicator Lights
Front Panel LED LightsPort light: LINK/ACT, SPEED, Lx
System work light: RUN
Power status light: PWR1, PWR2
Power
Input PowerDC 110~220V (Wide voltage: DC 110~370V) or AC 100~240V (Wide vltage: AC 85~264V)
Support optional for DC12V, DC24V, DC48V
Power Consumption<6W@(MAX)
Overload Protectionsupport
Inversed Protectionsupport
Redundancy Protectionsupport
Working Environment
Operating Temperature-40°C~85°C
Storage Temperature-40°C~85°C
Ambient Humidity5%~95%
Physical Characteristics
ShellIP40 protection, aluminum alloy shell
InstallationStandard 35mm din-rail mounting
DimensionEN2208: 33mm x 144mm x 97mm (W×H×D)
EN2208-1/2/4F: 54mm x 144mm x 97mm (W×H×D)
Weight400g
Industry Standard
EMCEN61000-4-2(ESD), Level 4
EN61000-4-3(RS), Level 4
EN61000-4-4(EFT), Level 4
EN61000-4-5(Surge), Level 4
EN61000-4-6(CS), Level 4
EN61000-4-8, Level 5
ImpactIEC60068–2-27
FallingIEC60068-2-32
ShockIEC60068-2-6

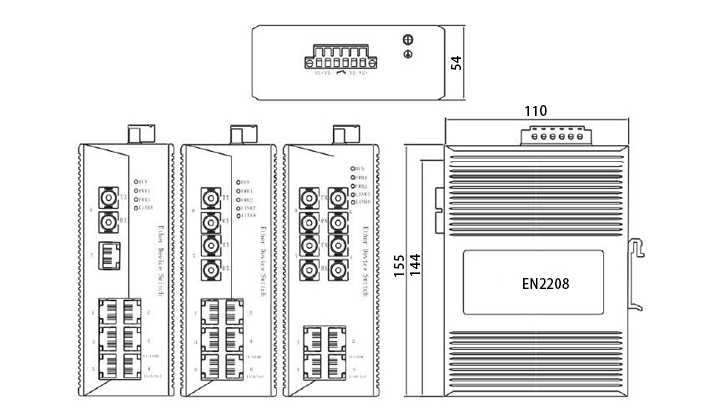

Dimensional Drawing (mm)

8 Port Unmanaged Industrial Switch EN2208 Dimension

Tips: The difference between managed industrial switches and unmanaged industrial switches
The task of a managed industrial switch is to keep all network resources in good condition. The unmanaged industrial switch does not directly process the data.

1. Different functions
The data of the managed industrial switch is configured through Simple Network Management Protocol (SNMP), which is the most widely used network management protocol based on TCP/IP network. It can filter the address, port, protocol type, service, etc. of the data. It also usually has VLAN division.
The unmanaged industrial switch lacks the network management function and does not directly process the data. Therefore, there are still quite large markets in some specific industries and fields, such as the power industry, coal mining industry, and transportation industry.

2. Different working modes
The managed industrial switch provides multiple network management methods based on the console and web pages. Therefore, the administrator can monitor and manage the working status and network running status of the switch in real time.
The unmanaged industrial switch is a plug-and-play Ethernet switch that does not require any settings and can be used by plugging in the Internet cable.
